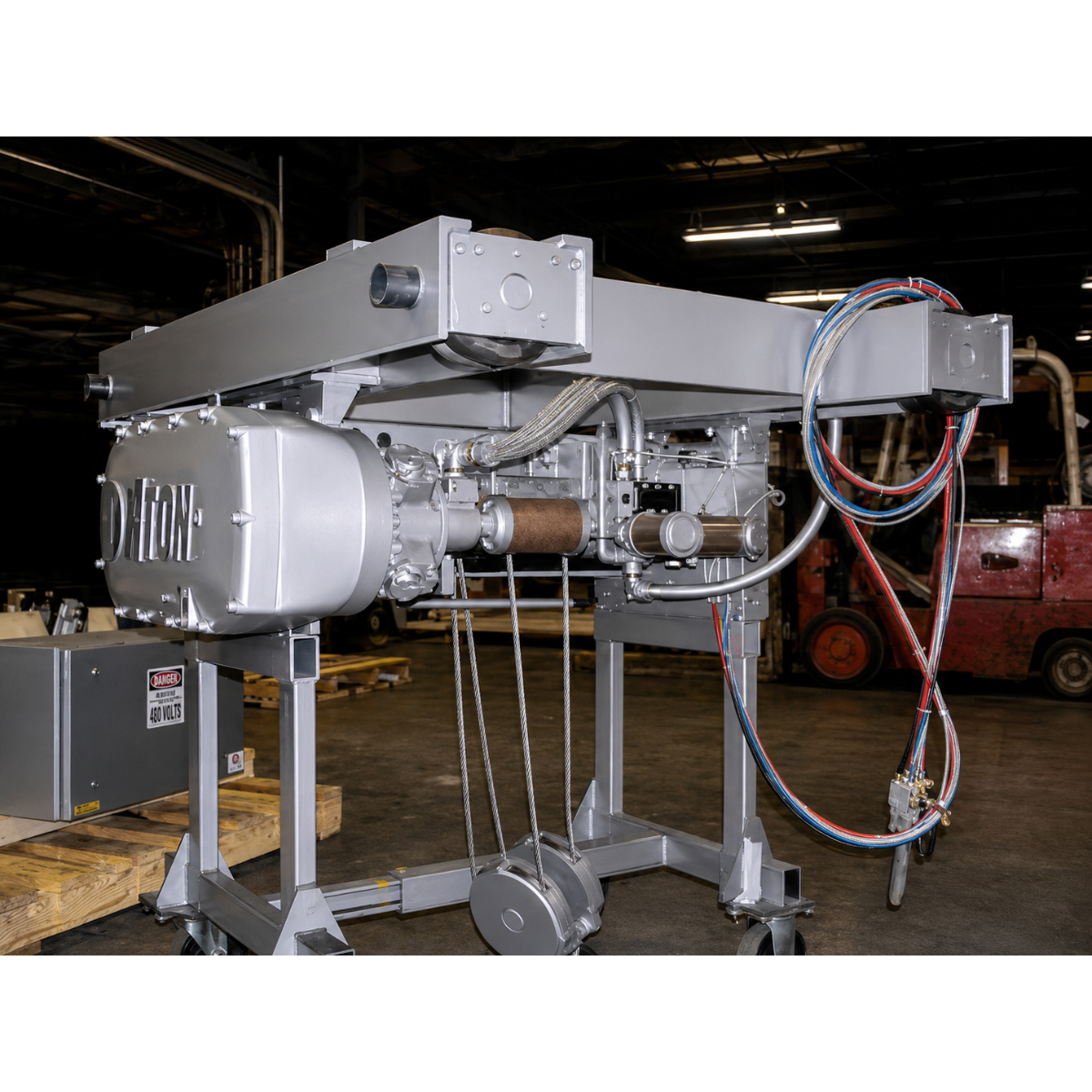

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 104" Trolley Gauge, Model DB22LH38-13

Write a Review
$31,000.00
$27,125.00
(You save $3,875.00 )
SKU: DB22LH38-13
Weight: 2,200.00 LBS
Shipping: Calculated at Checkout
Capacity: 20,000 - 29,999 lbs
Lift: 38 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 104" Trolley Gauge, Model DB22LH38-13

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 104" Trolley Gauge, Model DB22LH38-13

$31,000.00
$27,125.00
(You save $3,875.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 104" Trolley Gauge, Model DB22LH38-13

$31,000.00
$27,125.00
(You save $3,875.00 )
Description

Experience unmatched lifting capabilities with the Top Running Double Girder Low Profile crane, meticulously engineered for high-performance operations in demanding industrial environments. This robust hoisting system is ideal for installations with constrained vertical space, delivering an impressive 11.00-ton lifting capacity that meets the diverse load-handling needs of your facility and guarantees efficient operations.

Designed to enhance productivity without sacrificing safety, the DB22LH38-13 model incorporates a low-profile suspension that maximizes usable height while maintaining exceptional strength and stability. The unique 4-part line reeving system allows for a versatile lift height of 38 feet, accommodating various operational requirements. Powered by a high-efficiency 7.5 KW motor, the hoist operates smoothly up to a maximum lift speed of 13.00 feet per minute, ensuring rapid vertical logistics.

  • Top Running Double Girder Low Profile design for optimal space utilization
  • 11.00-ton capacity accommodates medium to heavy-duty lifting
  • Flexible 4-part line reeving for varied vertical lift heights
  • Impressive hoist lift speed of 13.00 FPM to enhance productivity
  • Robust 7.5 KW motor for reliable heavy load handling
  • Advanced closed-loop vector Variable Frequency Drive (VFD) for precise control
  • Maximum trolley speed of 80.00 FPM for swift horizontal movement
  • Dual 0.55 KW motors ensuring consistent trolley movement
  • Sensorless vector VFD control for accurate trolley maneuvering
  • Compatible with 230VAC, 3-phase, 60Hz power supply
  • CMAA Class D for reliable outdoor operation under varying weather
  • Trolley gauge of 104.0000 inches for smooth functionality
  • Approximately 2200.00 lbs weight designed for easier installation
  • Integrated safety features including overload protection and dynamic braking
  • UL508A certified control panel for robust operation
  • Adjustable limits and optional control voltage options enhance usability

This crane system stands ready to improve your operational efficiency and safety standards, thanks to its advanced motor protection features and detailed engineering. Its premium-grade components, including graphite ductile iron wheels, ensure durability and longevity, making it a smart investment for your industrial needs. Elevate your workload management with the Top Running Double Girder Low Profile crane, where efficiency meets reliability.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
