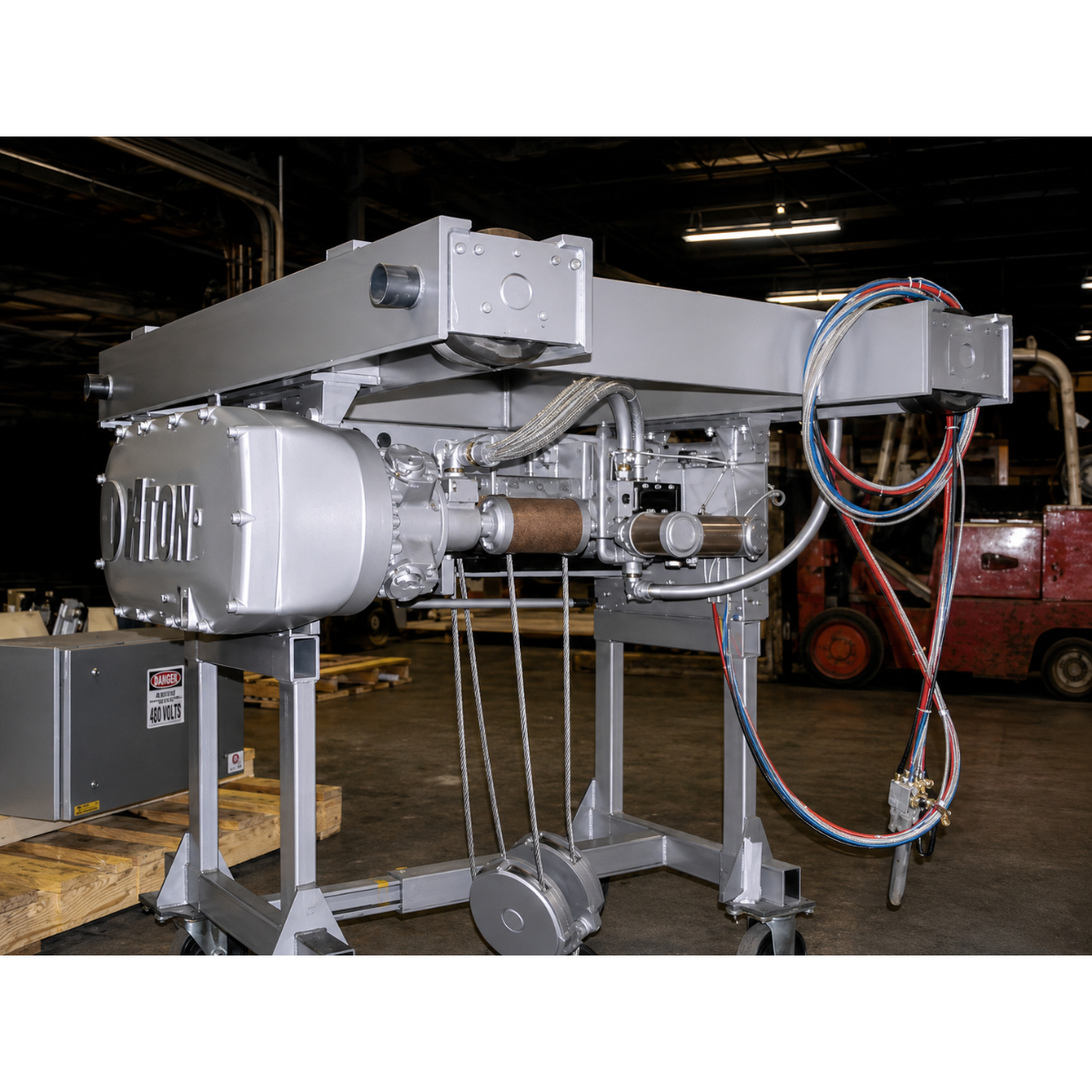

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13
DB22LH29-13
Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13
DB22LH29-13

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13

Write a Review
$29,000.00
$25,375.00
(You save $3,625.00 )
SKU: DB22LH29-13
Weight: 2,000.00 LBS
Shipping: Calculated at Checkout
Capacity: 20,000 - 29,999 lbs
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13

$29,000.00
$25,375.00
(You save $3,625.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 13 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB22LH29-13

$29,000.00
$25,375.00
(You save $3,625.00 )
Description

Exceed expectations with the Top Running Double Girder Low Profile Crane, designed for robust performance and reliability in industrial environments. With a lifting capacity of 11.00 tons and impressive hoist and trolley speeds, this crane is engineered to accommodate medium to heavy load handling while maintaining a low profile profile tailored for tight spaces.

The DB22LH29-13 model is meticulously designed with a top-running double girder low-profile suspension, ensuring solid support during lifting operations. This feature is ideal for environments where overhead clearance is limited, allowing you to maximize your workspace without compromising on safety. The crane boasts a maximum hoist lift speed of 13.00 feet per minute and a trolley speed of 80.00 feet per minute, allowing for efficient vertical and horizontal movement of materials.

  • Top Running Double Girder Low Profile suspension/mount for optimal support and minimal vertical clearance.
  • Capacity to lift loads up to 11.00 tons, making it suitable for a variety of medium to heavy industrial applications.
  • Four-part line reeving capable of lifting heights up to 29'­1”, providing versatility for different load sizes.
  • Hoist powered by a reliable 7.5 KW motor, ensuring consistent lifting performance.
  • Closed-loop vector Variable Frequency Drive (VFD) control for precision hoist operation and accurate load positioning.
  • Trolley speed reaching a maximum of 80.00 FPM, enhancing horizontal load management efficiency.
  • Dual .55KW trolley motors for reliable movement along the runway beams.
  • Sensorless vector VFD control on the trolley for precise and responsive maneuvering.
  • Compatible with 230VAC, 3-phase, 60Hz electrical power supply, accommodating standard industrial power setups.
  • CMAA Class D classification, making it suitable for standard weather-resistant service, enhancing durability outdoors.
  • Trolley gauge of 92.0000 inches designed for smooth trolley movement and stability.
  • Weighs approximately 2000.00 lbs for easy maneuverability while maintaining structural integrity.

The Top Running Double Girder Low Profile Crane, model DB22LH29-13, is not just a hoisting solution; it is a comprehensive lifting system designed for maximum operational efficiency. With premium-grade materials and advanced technology, it provides dynamic braking, motor overload protection, and precise positioning controls for optimal safety and performance. Invest in dependable lifting technology that pushes the boundaries of industrial productivity.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
