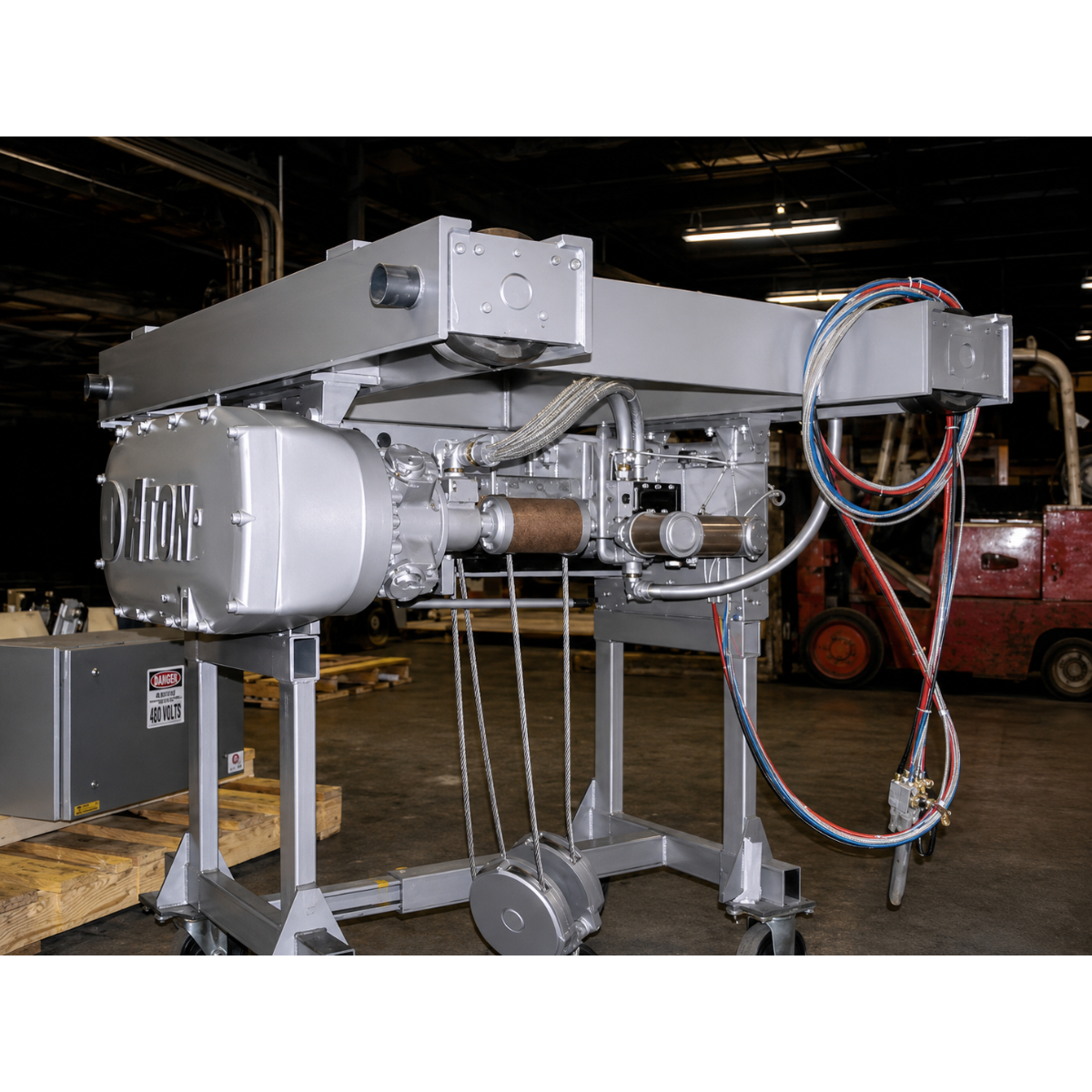

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21
DB22LH38-21
Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21
DB22LH38-21

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21

Write a Review
$35,000.00
$30,625.00
(You save $4,375.00 )
SKU: DB22LH38-21
Weight: 2,000.00 LBS
Shipping: Calculated at Checkout
Capacity: 20,000 - 29,999 lbs
Lift: 38.7 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21

$35,000.00
$30,625.00
(You save $4,375.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 11 Ton Capacity, 21 FPM Lift Speed, 80 FPM Trolley Speed, 96" Trolley Gauge, Model DB22LH38-21

$35,000.00
$30,625.00
(You save $4,375.00 )
Description

The Top Running Double Girder Low Profile crane is the perfect solution for your heavy lifting needs, boasting an impressive 11-ton capacity and advanced engineering that optimizes both efficiency and safety. With its low-profile design, this crane is ideal for installations in height-restricted areas, allowing businesses to maximize utilize overhead space effectively.

Designed for powerful performance, the DB22LH38-21 model ensures reliable operation even under the most demanding conditions. Its robust lifting capabilities are complemented by a hoist lift speed of 21.00 feet per minute, enhancing productivity during operations. The combination of a spacious trolley gauge of 96 inches and swift trolley speed of 80 feet per minute allows for unhindered movement along the runway beams, making it a superior choice for any industrial setting.

  • Heavy-Duty Capacity: Capable of lifting loads up to 11 tons, suitable for industrial applications.
  • Efficient Reeving System: The 3-part line reeving system enables lifting up to 38 feet and 8 inches.
  • Fast Hoisting: Achieve quick vertical movement with a lifting speed of 21.00 FPM.
  • Powerful Hoist Motor: Features a 13.4 kW motor that ensures reliable operation.
  • Advanced Control Technology: Equipped with closed-loop vector Variable Frequency Drive control for smooth, precise hoisting.
  • Swift Trolley Movement: Trolley system capable of moving at 80.00 feet per minute for rapid horizontal transport.
  • Durable Construction: Weighs approximately 2000 lbs, providing strength and stability during operation.
  • Designed for Various Conditions: Classified as CMAA Class D, this crane is built to perform in standard weather-resistant conditions.
  • Robust Safety Features: Includes overload protection, dynamic braking, and adjustable electronic limits for safe operation.
  • Compatibility: Operates on a standard power supply of 230VAC, 3-phase, 60Hz, suitable for most industrial environments.
  • Enhanced Mechanism: Includes features like premium-grade ductile iron wheels and an industrial control panel for optimal performance.

The Top Running Double Girder Low Profile crane is engineered to meet the rigorous demands of modern industries, providing both efficiency and safety. With its superior design and capability, this crane is an invaluable asset for any company looking to enhance their lifting operations. Invest in the future of your operations with the best in the industry, and experience unparalleled performance and reliability.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
