Product Overview

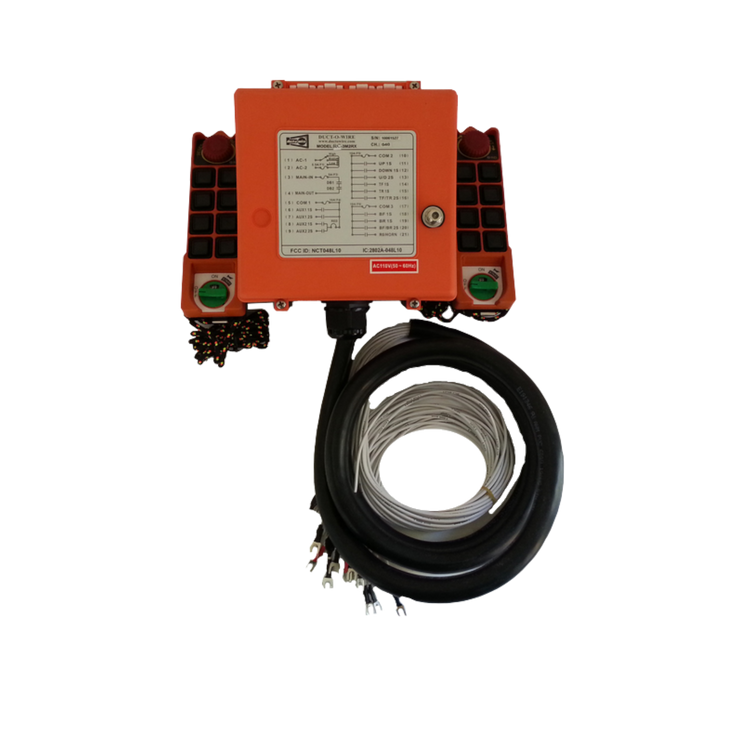

Duct-O-Wire RC-3M2 A/B Radio Control System
The Duct-O-Wire RC-3M2 A/B is a rugged, industrial-grade wireless radio control system designed to provide safe, reliable, and efficient remote operation for a wide range of material handling equipment. This unit is a direct replacement for the RC-IM-310 A/B model and is ideally suited for 3-motion, 2-speed hoist and crane operations.
Designed for demanding industrial environments, the RC-3M2 A/B supports advanced features such as A/B/Both operation modes, multiple standard terminal options for flexible wiring configurations, and safety elements like Emergency Stop and a keyed On/Off function. Its robust construction, IP65-rated enclosure, and crystal-based synchronous transmission technology ensure dependable performance in both indoor and outdoor applications.
Supplied with two transmitters, the system enhances operator flexibility and reduces downtime. With its user-friendly interface and customizable push-button symbols, the RC-3M2 A/B maximizes operator efficiency while maintaining high standards of operational safety.
Technical Specifications – RC-3M2 A/B
General System Features
- System Type: 3-motion, 2-speed wireless control
- Compatibility: Replaces RC-IM-310 A/B
- Operation Modes: A/B/Both selector switch
- Safety Features: Emergency Stop, Keyed On/Off
- Transmitter Quantity: 2 units included
- Power Type: AC Standard (consult factory for DC versions)
Transmitter
- Dimensions: 6.4" (L) x 1.9" (W) x 1.8" (H)
- Weight: 0.6 lbs
- Power Source: 2 AA alkaline batteries
- Power Consumption: ~40mA
- Indicators & Alerts:
- 3-stage battery indicator
- Built-in buzzer/alarm
- Waterproof removable key
- Customization:
- Changeable push-button symbols
- 4-digit password power-on function
- Durability: Shock-resistant design
Receiver
- Dimensions: 6.6" (L) x 6.1" (W) x 3.5" (H)
- Weight: 3.1 lbs
- Input Voltage: 110 VAC
- Output Relays: 10A @ 250V with fuses
- Additional Features:
- Alarm and signal light output
- Power source detector
- Anti-power interrupt circuit
- Enhanced watchdog circuit
- Shock-resistant construction
- Frequency deviation tracing
- Triple superheterodyne receiver architecture
Communication & Performance
- Enclosure Rating: IP65 (suitable for indoor and outdoor use)
- Construction Material: Fiberglass
- Frequency Range: 310.0325 – 321.535 MHz
- Encoding: 32-bit synchronous transmission
- Response Time: 65ms
- Transmission Range: Up to 300 feet
- Operating Temperature: -30°C to +75°C
