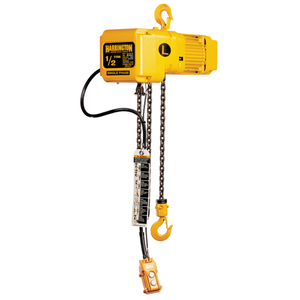

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

Write a Review
$3,442.16 - $3,829.35
SKU: SNER005S-10
Condition: New
Availability: Subject to Availability
Weight: 104.00 LBS
Width: 17.00 (in)
Height: 25.00 (in)
Depth: 19.00 (in)
Shipping: Calculated at Checkout
Color: Yellow
Includes: Chain Container
Lift Speed: 15 fpm
Housing Width: 10 13/16 in
Manufacturers Warranty Length: 1 yr
Housing Depth: 7 1/2 in
Housing Length: 14 19/32 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 10 13/16 in
Body Depth: 7 1/2 in
For Minimum Beam Height: Not Applicable
Body Length: 14 19/32 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 20 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 29/32 in
Minimum Retracted Length: 14 19/32 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 14 5/8 in
Motor HP: 0.625 hp
Phase: 1
Standards: ASME B30.16, ASME HST-1, NFPA 70
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: No
Classification: H4
Control Cord: 6 ft
Amps @ Low Volts: 16.9 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: 15 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant, Mount Type: Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 5/8 hp
Headroom: 14 19/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 1,000 lb
Current at Minimum Voltage: 16.9 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 8.5 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Suspension / Mounting: Hook
Control: Single Speed
Capacity: 1,000 - 2,499 lbs
Lift: 20 ft
Voltage: 230/1/60
Adding to cart… The item has been added
Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

$3,442.16 - $3,829.35

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

$3,442.16 - $3,829.35

The SNER Electric Chain Hoist Lift-Capacity 1/2 Tons SNER005S HARRINGTON is your go-to solution for heavy lifting and lowering tasks in industrial environments. Constructed with precision engineering and advanced technology, this electric chain hoist combines efficiency with durability, making it the ultimate tool for tackling demanding applications.

Reliable and powerful, the SNER005S operates on single-phase power, allowing for seamless integration into your existing setup. Whether you need to lift, lower, or position heavy materials swiftly and safely, this hoist is designed to enhance operational productivity and ensure that your lifting challenges are met without a hitch.

  • Load capacity of 1/2 tons, perfect for various heavy-duty tasks
  • Single-phase power source for efficient operation
  • Compact and ergonomic design for handling in tight spaces
  • Advanced technology for smooth operation and excellent control
  • Dual braking system for added safety and security
  • High-capacity overload clutch for enhanced protection during lifts
  • Robust construction with high-quality materials for long-lasting performance
  • Comprehensive warranty and excellent customer support included

Investing in the SNER005S HARRINGTON Electric Chain Hoist not only boosts efficiency but also elevates safety standards in your workplace. The dual braking system safeguards your loads while the overload clutch prevents excessive weight from jeopardizing your operation. Designed for resilience, this hoist is built to withstand the rigors of demanding industrial settings, ensuring that it will remain a reliable asset for years to come.

In summary, the SNER005S-10 HARRINGTON SNER Electric Chain Hoist stands as an indispensable tool for professionals seeking enhanced productivity and safety. Take the next step in improving your heavy lifting operations by investing in the SNER005S today, and experience unmatched reliability and performance in all your industrial applications.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
