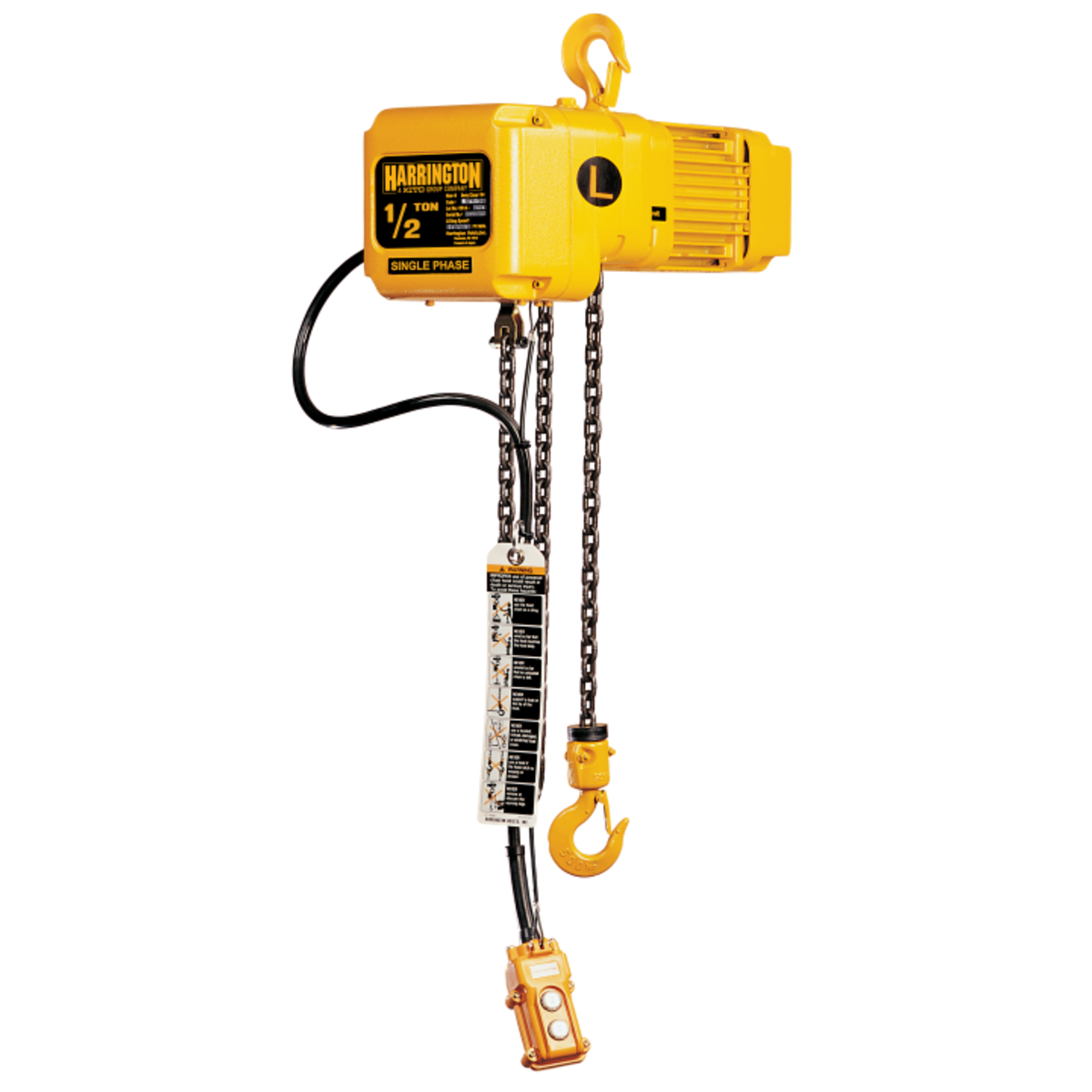

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

Write a Review
$3,070.55 - $3,444.98
SKU: SNER005L-10
Condition: New
Availability: Subject to Availability
Weight: 91.00 LBS
Width: 17.00 (in)
Height: 19.00 (in)
Depth: 25.00 (in)
Shipping: Calculated at Checkout
Color: Yellow
Hoist Lift: 20 ft
Includes: Chain Container
Lift Speed: 7 fpm
Housing Width: 9 15/16 in
Manufacturers Warranty Length: 1 yr
Housing Depth: 6 5/8 in
Housing Length: 14 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 9 15/16 in
Body Depth: 6 5/8 in
For Minimum Beam Height: Not Applicable
Body Length: 14 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 20 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 29/32 in
Minimum Retracted Length: 14 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 14 in
Motor HP: 0.375 hp
Phase: 1
Standards: ASME B30.16, ASME HST-1, NFPA 70
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: No
Classification: H4
Control: Push Button Pendant
Control Cord: 6 ft
Amps @ Low Volts: 7.7 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: 7 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant, Mount Type: Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/8 hp
Headroom: 14 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 1,000 lb
Current at Minimum Voltage: 7.7 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 3.9 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Suspension / Mounting: Hook
Speed: Single Speed
Capacity: 1,000 - 2,499 lbs
Lift: 20 ft
Voltage: 230/1/60
Adding to cart… The item has been added
Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

$3,070.55 - $3,444.98

Harrington SNER Series Single-Phase Hoist with Hook Suspension - 1/2 Ton - 10 ft Lift

$3,070.55 - $3,444.98

The SNER005L HARRINGTON SNER Electric Chain Hoist is a powerful and reliable tool that is perfect for tackling even the toughest lifting applications. With a lifting capacity that ranges from 1/2 Tons , this electric chain hoist can handle heavy loads with ease.Specifically designed for single phase power, the SNER005L ensures consistent and dependable performance. No matter what industry you are in, whether it's construction, manufacturing, or any other heavy-duty application, this electric chain hoist is your trusted partner for all your lifting needs.One of the standout features of the SNER005L is its robust construction. This electric chain hoist is built to last, ensuring that it can stand up to the rigors of daily use and continue to perform at its best for years to come. The SNER005L offers convenient and efficient lifting operations. Whether you need to lift heavy materials to a certain height or transport goods from one location to another, this electric chain hoist delivers the power and precision you need to get the job done.When you choose the SNER005L-10 HARRINGTON SNER Electric Chain Hoist, you can trust that you are investing in a product that offers outstanding power and performance. This electric chain hoist is designed to deliver reliable and efficient lifting, providing you with peace of mind and increased productivity.Experience the extreme power and durability of the SNER005L HARRINGTON SNER Electric Chain Hoist. No matter the size or weight of your load, this electric chain hoist is up to the task. Invest in the SNER005L and discover the difference it can make in your lifting operations. Trust the SNER005L HARRINGTON SNER Electric Chain Hoist and experience the difference in power and performance.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
