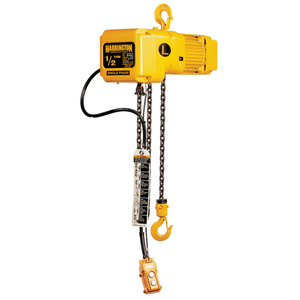

SNER Electric Chain Hoist Lift-Capacity 1/4 Tons SNER003S Electric Chain Hoist HARRINGTON

Write a Review
$3,036.52 - $3,303.00
SKU: SNER003S-10
Condition: New
Availability: In stock
Weight: 82.00 LBS
Width: 18.00 (in)
Height: 25.00 (in)
Depth: 19.00 (in)
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10, 15, 20
Includes: Chain Container
Lift Speed: 14 fpm
Housing Width: 9 15/16 in
Manufacturers Warranty Length: 1 yr
Housing Depth: 6 5/8 in
Housing Length: 22 3/16 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 9 15/16 in
Body Depth: 6 5/8 in
For Minimum Beam Height: Not Applicable
Body Length: 22 3/16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 20 FT
Controller Cord Length: 6 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 29/32 in
Minimum Retracted Length: 13 13/16 in
Load Capacity: 500 lb
Minimum Between Hooks: 13 13/16 in
Motor HP: 0.34 hp
Phase: 1
Standards: ASME B30.16, ASME HST-1, NFPA 70
Voltage: 115/230V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: No
Control: 6 ft
Control Cord: 6 ft
Amps @ Low Volts: 7.7 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Material: Die Cast Aluminum
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed: 14 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/8 hp
Headroom: 13 13/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 7.7 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 3.9 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
SNER Electric Chain Hoist Lift-Capacity 1/4 Tons SNER003S Electric Chain Hoist HARRINGTON

SNER Electric Chain Hoist Lift-Capacity 1/4 Tons SNER003S Electric Chain Hoist HARRINGTON

$3,036.52 - $3,303.00

SNER Electric Chain Hoist Lift-Capacity 1/4 Tons SNER003S Electric Chain Hoist HARRINGTON

$3,036.52 - $3,303.00

The SNER003S HARRINGTON SNER Electric Chain Hoist is a reliable and powerful tool designed to meet your heavy-duty lifting needs. With a lift capacity of 1/4 Tons and a 10ft lift height, this electric chain hoist is perfect for extreme duty applications that require single-phase power. Manufactured by HARRINGTON, a trusted name in the industry, the SNER003S is built to withstand the toughest tasks and deliver exceptional lifting capability. Its sturdy construction ensures durability and longevity, allowing you to depend on it for years to come.Ideal for a wide range of industries including manufacturing, construction, and logistics, this electric chain hoist provides the necessary power and reliability to handle all your heavy lifting requirements. Whether you need to move heavy materials or equipment, the SNER003S will effortlessly get the job done, increasing your productivity and keeping your operations running smoothly.The SNER003S is designed with efficiency in mind. Its efficient performance ensures that it operates smoothly and effectively, reducing the risk of accidents or damage. With its easy-to-use controls, you can effortlessly control the hoist, allowing for precise and controlled movements. Safety is paramount when it comes to lifting heavy loads, and the SNER003S-10 prioritizes it. Equipped with safety features such as overload protection, upper and lower limit switches, and a mechanical brake, this electric chain hoist ensures safe and secure lifting operations. Additionally, the SNER003S is backed by HARRINGTON's commitment to quality and customer satisfaction. With their extensive industry experience and expertise, you can trust in the reliability and performance of this electric chain hoist.Experience the power and reliability of the SNER003S HARRINGTON Electric Chain Hoist and take your heavy-duty lifting to the next level. Invest in this durable and efficient tool today and witness the difference it makes in your operations.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
