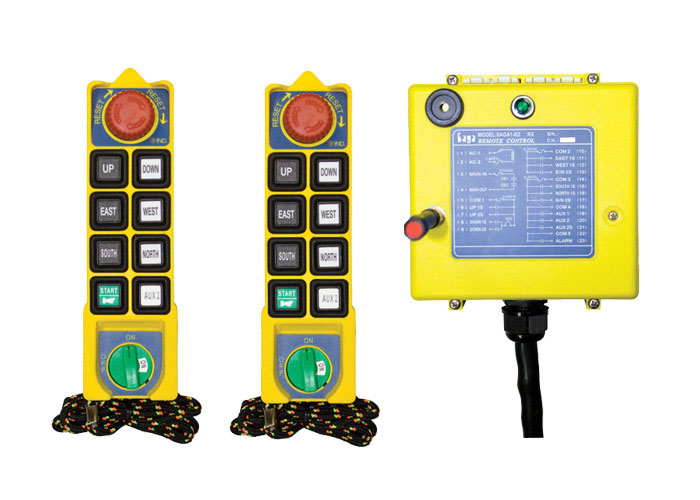

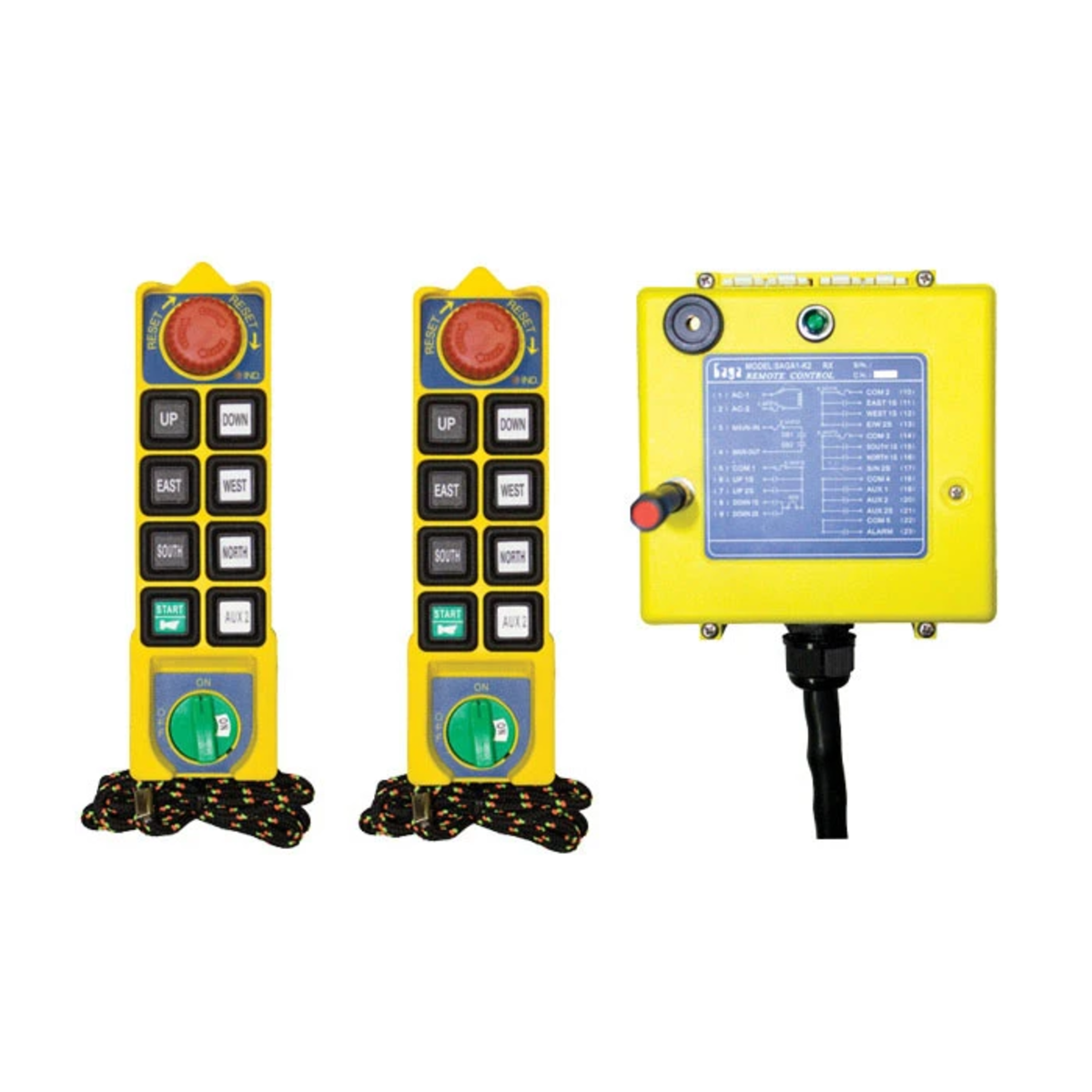

The XA-700DK1-DC from Conductix-Wampfler is a 12-24 VDC powered radio remote control system tailored for cranes, hoists, and other material handling systems. This Saga K1 Series kit provides reliable single-speed control and wireless operation, ensuring smooth and safe operation in demanding industrial environments.
Dual Transmitters:
Two 8-button transmitters, featuring an emergency-stop button, making it ideal for precise, safety-focused control in material handling equipment.
Single-speed operation with easy-to-use controls for up to 4 motions.
Receiver:
Designed to operate on 12-24 VDC, making it adaptable for a variety of industrial applications.
433 MHz frequency with frequency-hopping spread spectrum (FHSS) for secure and interference-free communication up to 100 meters (330 feet).
Compact and rugged, with a sealed enclosure for protection against dust and moisture.
Safety Features:
Includes an independent emergency-stop switch certified to EN-ISO 13849-1 Cat.4, ensuring high safety standards in operation.
Dual microcontrollers and safety relays for redundancy and operational security.
Setup & Installation:
The kit includes all necessary components for easy installation, including transmitters, receiver, antenna, and mounting hardware.
Pre-paired transmitters with receiver, ready for immediate use.
Key Specifications
Specification Detail
System Saga K1 Series
Buttons 8-button, single-speed
Transmitters Included 2 handheld units with E-STOP
Receiver Voltage 12-24 VDC
Radio Frequency 433 MHz (FHSS), 100m range
Emergency Stop EN-ISO 13849-1 Cat.4 certified
Weight 10 lb (kit)
Range Up to 330 ft (100 m)
Applications Cranes, hoists, conveyors, etc.
