Radio Remote Control Kit, Saga K1 Series, 08-Button, 1-Speed, 2 TX, 110 VAC Conductix XA-700DK1

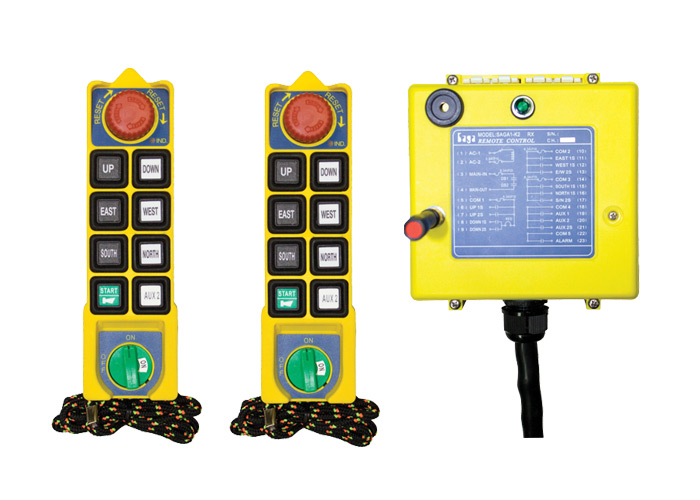

The XA_700DK1 Saga K1 Series Radio Remote Control Kit is a complete industrial-grade control solution from Conductix_Wampfler, tailored for overhead cranes, monorails, hoists, and material-handling equipment. This turn-key package includes all components for reliable single-speed remote operation: Transmitters: Two 8_button handheld units, each featuring single-step control for up to four motions, plus emergency-stop functionality Rugged construction for industrial use with protective housings and user-friendly layouts Receiver: Single-channel unit powered by 110_VAC, designed for indoor industrial environments with sealed enclosure Communicates via 433–435_MHz with up to 330_ft (100_m) range, using durable frequency-hopping protocol to minimize interference Kit Components & Setup: Includes two pre-paired transmitters and one receiver with antenna and mounting hardware Provides installation manual and wiring diagrams; emitter and control settings factory-configured for immediate deployment Safety & Certification: Transmitters include an independent EN_ISO_13849_1 Cat.4 certified emergency-stop switch Dual microcontrollers and dual series mainline relays in receiver add redundancy and jam detection for enhanced operational safety Physical Attributes: Complete kit weight is 10_lb Compact transmitters paired with a receiver suitable for panel or bulkhead mounting Key Specifications Specification Detail System Saga_K1 Series Buttons 8_button single-speed, up to 4 motion directions Transmitters Included 2 handheld units with E_STOP Receiver Voltage 110_VAC Radio Frequency 433–435_MHz, FHSS, ~100_m range Emergency Stop EN_ISO_13849_1 Cat.4 certified Weight 10_lb (kit) Range Up to 330_ft (100_m) Applications Cranes, hoists, conveyors, monorails
