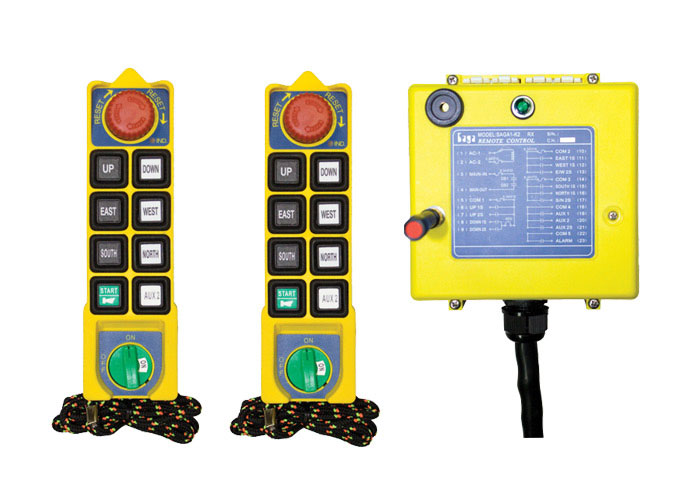

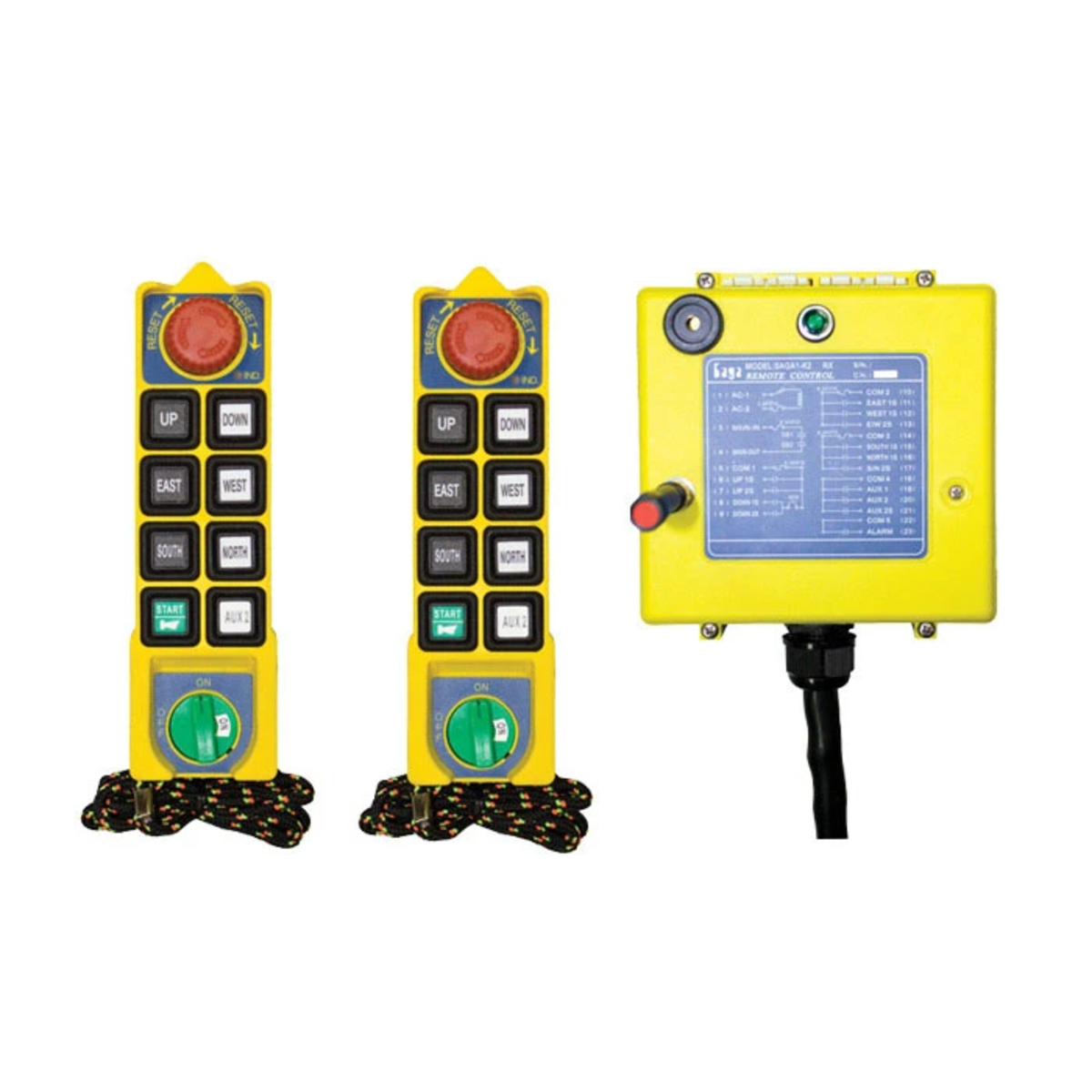

The XA_700DK2 is a robust, factory-configured radio remote control system from the Saga K2 Series, offering enhanced control capability for industrial applications:
Transmitters (Qty 2)
Each handheld unit has 8 buttons with 2-speed (high/low) operation for up to 4 motion directions plus auxiliary functions
Includes a built-in emergency-stop button in an ergonomic housing
Powered by standard 110Â VAC
Operates on 433–435_MHz, using FHSS for high interference resistance and reliable signal integrity
Supports a line-of-sight range of approx. 100_m (330_ft)
Safety & Reliability
Equipped with dual microcontrollers and dual mainline relays in series, providing redundancy and jam detection
Each transmitter emphasizes safety with a dedicated EN_ISO 13849_1 Category 4 emergency_stop configuration
Kit Contents & Setup
Two pre-paired transmitters and one receiver
Comes with antenna, mounting hardware, and dimensional drawing or cut sheet available for download
Key Specifications
Feature Details
System Saga K2 Series
Transmitters 2 _ 8-button with 2-speed and E_STOP
Receiver Voltage 110Â VAC
Radio Frequency 433–435_MHz (FHSS)
Operating Range ~330_ft /Â 100_m (line-of-sight)
Safety Certifications EN_ISO 13849_1 Cat. 4 E_STOP; dual redundancy
Weight 7.85_lb
