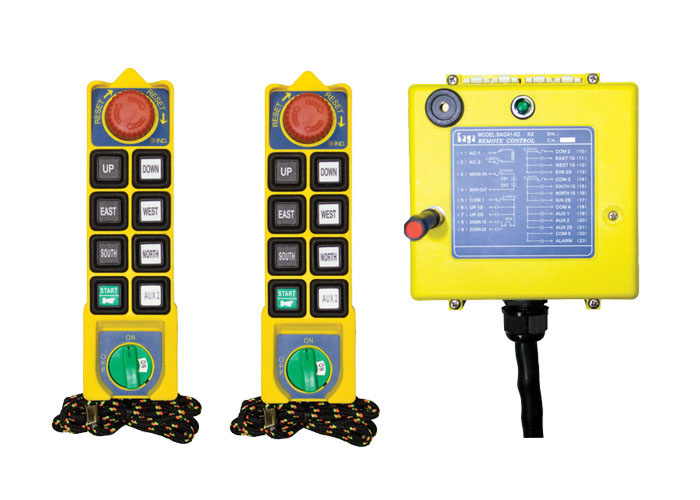

The XA_700DK1_48 Saga_K1 Series radio remote control kit is a complete industrial-grade system from Conductix_Wampfler, ideal for controlling lifting or material handling equipment:
Transmitters (Qty 2):
Each handheld unit features eight single-speed pushbuttons, covering up to four motion directions plus auxiliary functions.
Includes an emergency-stop button built into a rugged, ergonomic package.
Receiver (48_VAC):
Accepts 48_VAC power input and communicates via robust 433–435_MHz frequency-hopping radio for interference resistance.
Provides line-of-sight range up to approximately 100_m (330_ft).
Safety Features:
Dual microcontroller architecture with redundancy for reliable operation.
Each transmitter includes an emergency-stop for immediate shutdown capability.
Package Includes:
Two transmitters and a 48_VAC-rated receiver, pre-paired for plug_and_play operation.
Receiver ships with antenna and mounting hardware, plus quick-start documentation.
Key Specifications
Feature Specification
Kit Model XA_700DK1_48
System Series Saga_K1
Transmitters 2 _ 8-button single-speed with E_STOP
Receiver Power 48_VAC
Radio Frequency 433–435_MHz, FHSS
Range ~330_ft (100_m)
Weight 10_lb
