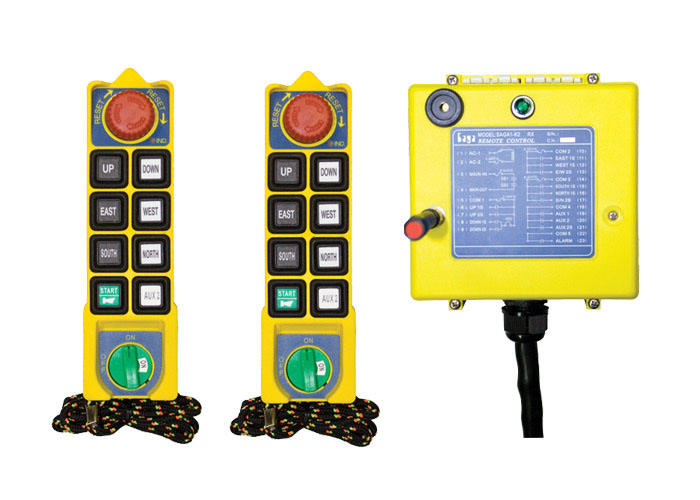

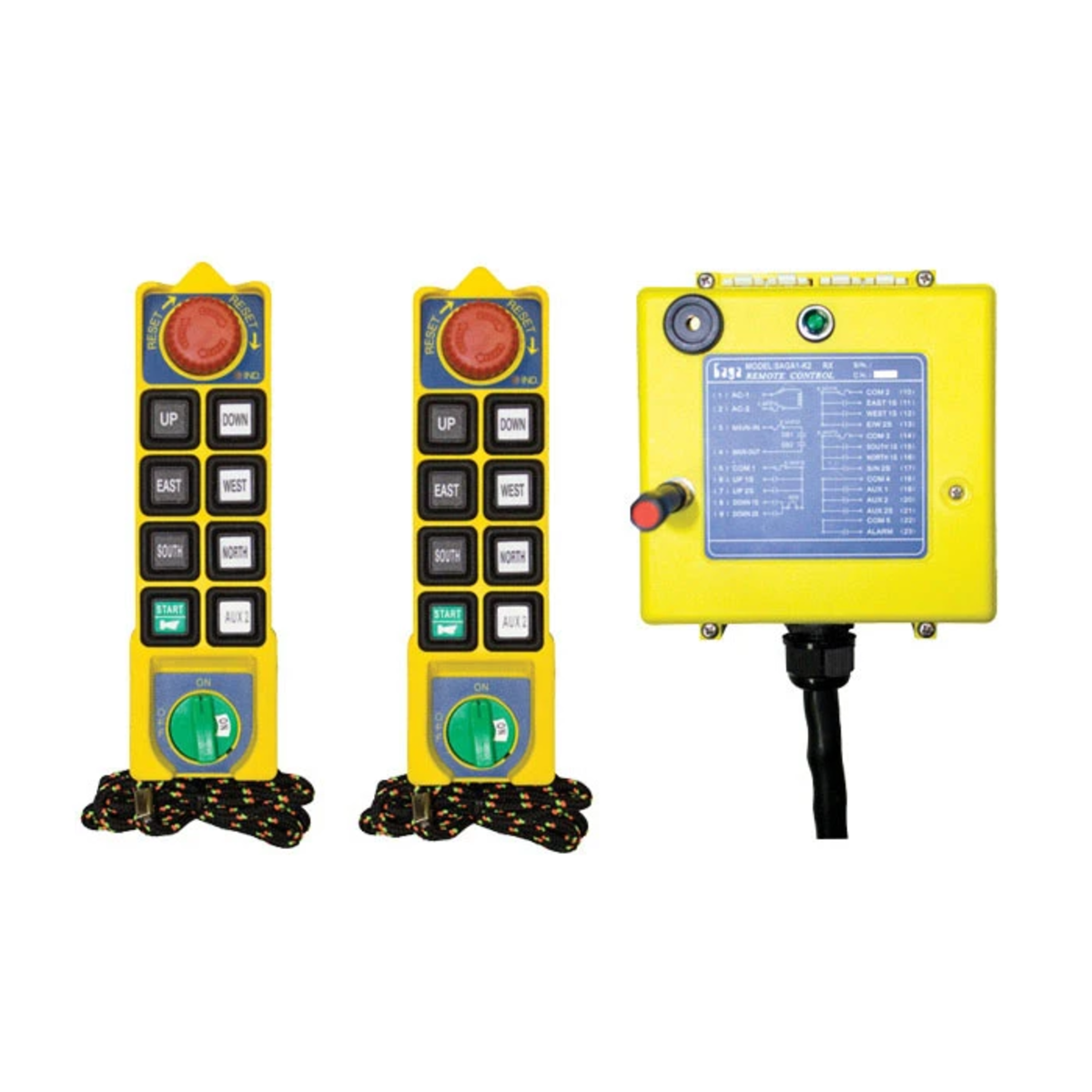

The XA_700DK1_220 Saga_K1 Series Kit is a complete industrial-grade radio remote control package from Conductix_Wampfler, built for single-speed control of cranes, hoists, and material handling systems:
Transmitters (Qty 2):
Each handheld unit has 8 single-speed buttons, enabling control over up to four motion directions plus auxiliary functions.
Includes emergency_stop, integrated into ergonomic housings for dependable operator use.
Receiver (220_VAC):
Designed for 220_VAC power systems.
Operates on 433–435_MHz with Frequency-Hopping Spread Spectrum technology to reduce interference.
Offers line-of-sight control up to approximately 100_m (330_ft).
Safety & Redundancy:
Dual-microcontroller design with safety-level monitoring ensures reliable operation.
Independent emergency-stop buttons on each transmitter enhance safety.
Package Includes:
Two pre-paired transmitters.
A single-channel receiver with antenna and mounting hardware.
Factory-set configuration and installation guides for quick deployment.
Key Specifications
Feature Specification
System Saga_K1 Series
Transmitters 2 _ 8-button, single-speed (with E_STOP)
Receiver Voltage 220_VAC
Wireless Frequency 433–435_MHz, FHSS
Operating Range ~330_ft (100_m)
Weight 10_lb
