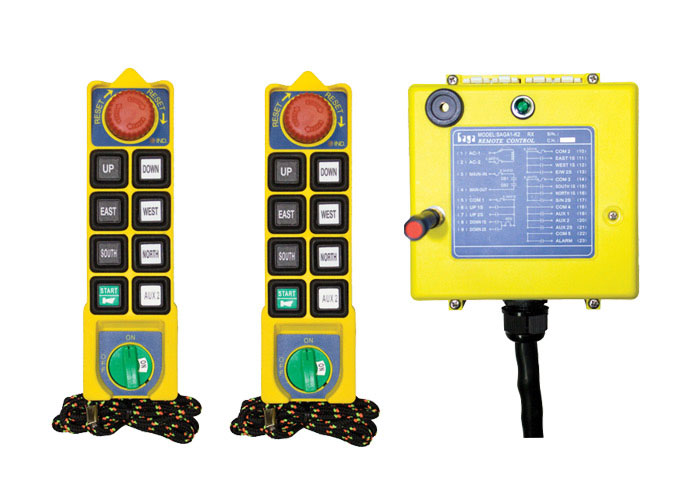

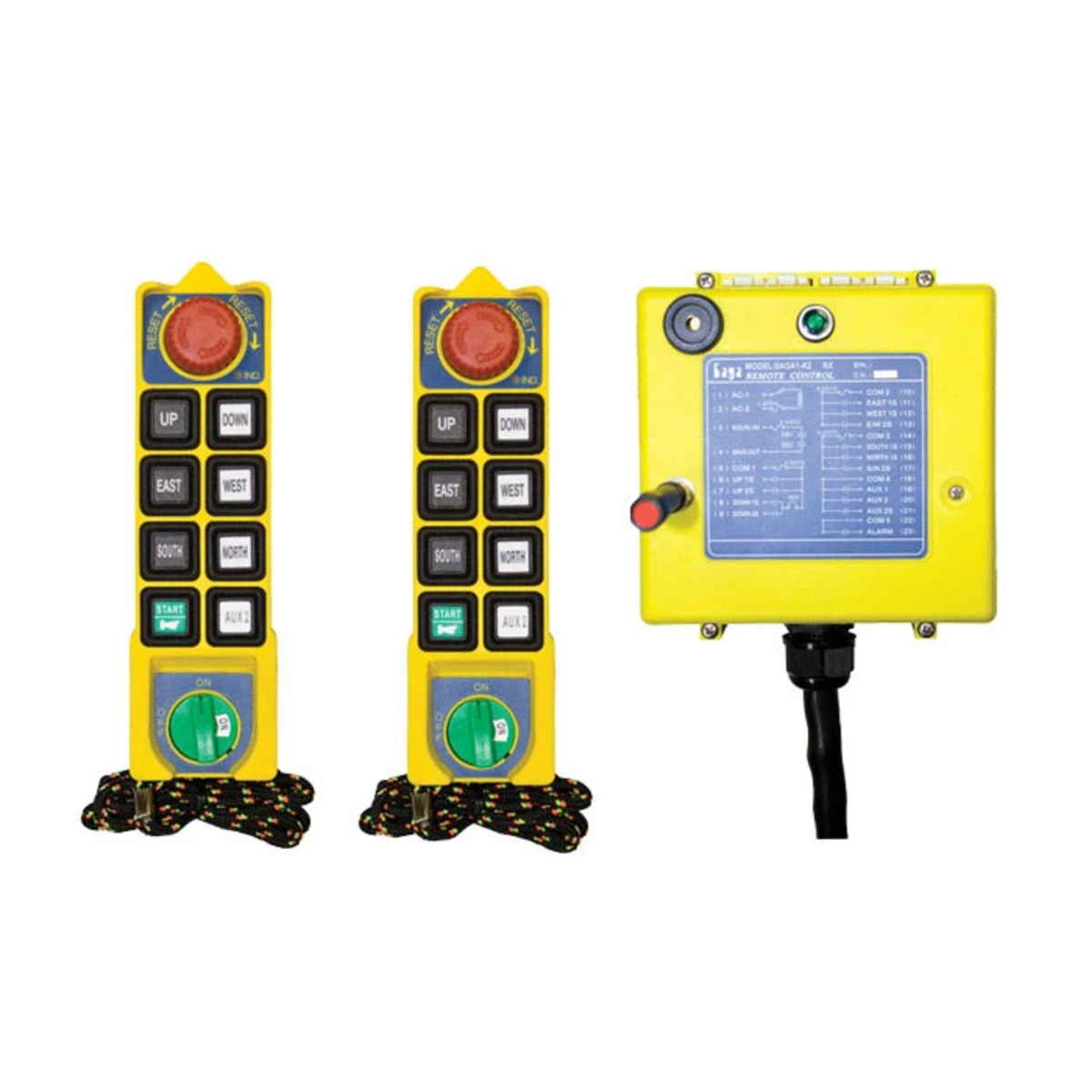

The XA_700DK2-DC is part of the Saga K2 Series of radio remote control systems, designed for demanding industrial operations. It provides reliable control for equipment such as cranes and material handling systems with the following features:
Transmitters (Qty 2)
8 buttons with 2-speed (high/low) control for multiple motion directions and auxiliary functions
Includes a dedicated emergency-stop (E_STOP) button for enhanced safety
Receiver (12-24 VDC)
Operates on 12-24 VDC, providing flexibility for use in various power environments
Frequency range of 433–435 MHz with FHSS for secure and interference-resistant communication
Provides a line-of-sight range of approximately 100 meters (330 feet)
Safety & Reliability
Equipped with dual microcontrollers and dual mainline relays, ensuring system redundancy and fail-safes
Conforms to EN-ISO 13849-1 Category 4 for emergency stop (E_STOP) functionality
Kit Contents & Setup
Includes two pre-paired transmitters and a receiver
Comes with all necessary mounting hardware and antennas
Key Specifications
Feature Details
System Saga K2 Series
Transmitters 2 _ 8-button, 2-speed, E_STOP
Receiver Voltage 12-24 VDC
Radio Frequency 433-435 MHz (FHSS)
Operating Range 100 meters (330 feet)
Safety Certifications EN_ISO 13849-1 Category 4
Weight 7.85 lb
