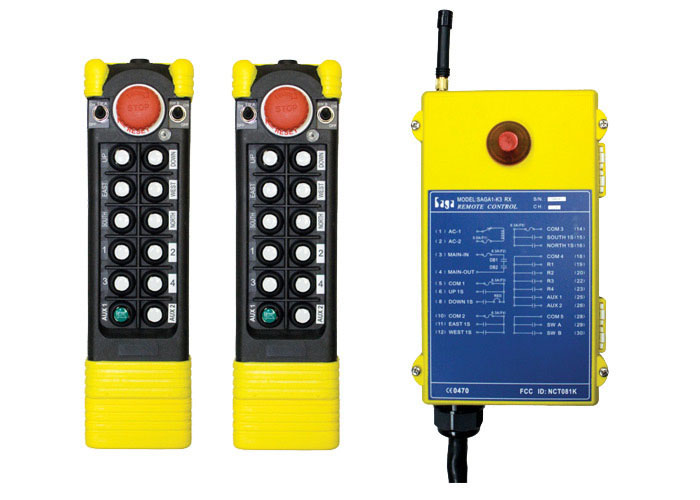

Radio Remote Control Kit, Saga K4 Series, 12-Button, 2-Speed, 2 TX, 12-24 VDC Conductix XA-700DK4-DC

The XA_700DK4_DC is a fully configured, factory-tested remote control system from Conductix_Wampfler’s Saga K4 Series, tailored for demanding industrial environments: Transmitters (Qty 2) Each includes 12 pushbuttons with dual-speed (high/low) control, ideal for managing up to five motion directions and auxiliary functions Integrated emergency-stop (E_STOP) ensures operator safety during critical situations Receiver (12–24_VDC) Powered by 12–24_VDC, offering compatibility with battery-operated systems and mobile platforms Communicates via secure 433–435_MHz Frequency-Hopping Spread Spectrum (FHSS) wireless Offers approximately 100_m (330_ft) line-of-sight wireless range Safety & Reliability Built with dual microcontrollers and redundant mainline relays for fail-safe performance Meets industrial safety standards with robust E_STOP configuration Kit Includes Two fully factory-paired transmitters 12–24_VDC receiver equipped with antenna and mounting hardware Available downloads include downloadable cut sheet and dimensional drawings Key Specifications Feature Specification Kit Model XA_700DK4_DC Series Saga K4 Transmitters 2 _ 12-button, 2-speed with E_STOP Receiver Power Input 12–24_VDC Wireless Frequency 433–435_MHz (FHSS) Operating Range ~100_m (330_ft) LOS Weight 10.51_lb
