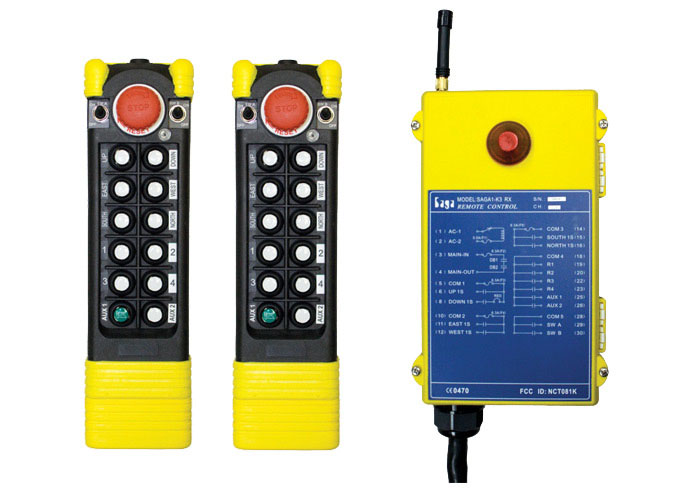

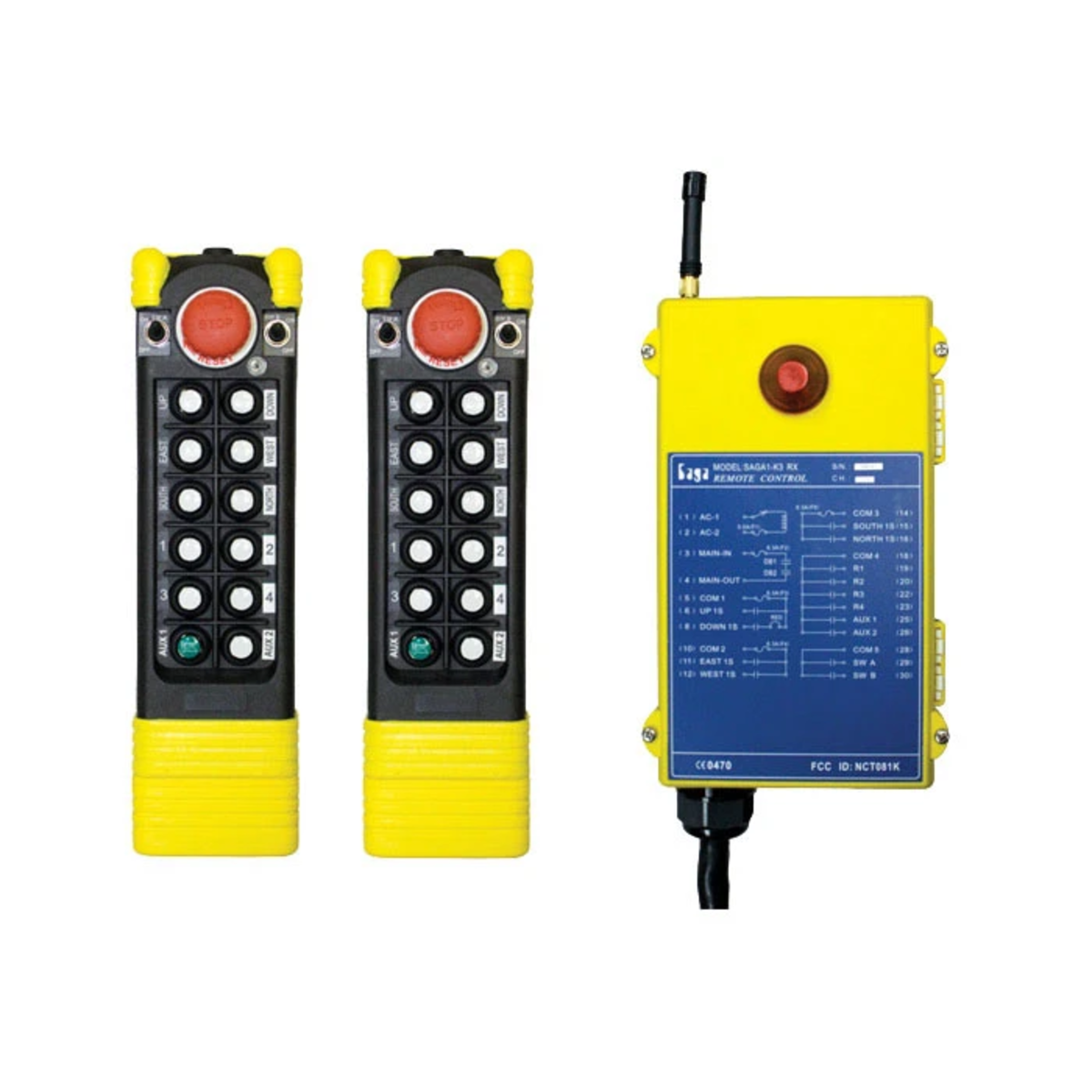

The XA_700DK4_48 is a fully equipped, factory-certified remote control package from Conductix_Wampfler’s Saga_K4 Series, offering advanced features and exceptional reliability for industrial use:
Transmitters (Qty 2)
Each ergonomic handset includes 12 pushbuttons with dual-speed control, enabling management of up to five motion directions and auxiliary functions
Both units feature integrated emergency-stop (E_STOP) and key switch for secure operation
Receiver (48_VAC)
Powered by 48_VAC, suitable for a wide range of industrial control systems
Employs 433–435_MHz Frequency-Hopping Spread Spectrum (FHSS) technology for interference-resistant, secure wireless communication
Offers a line-of-sight range of approximately 100_meters (330_ft)
Safety & Reliability
Incorporates dual microcontrollers and dual mainline relays in series for redundancy and jam detection
E_STOP design meets EN_ISO_13849_1 Category_4 standards, ensuring high-level safety compliance
Receiver housed in robust NEMA_4 (IP65) nylon/glass fiber enclosure, built for harsh industrial environments
Package Includes
Two pre_paired transmitters, each including AA batteries, strap, legend sheet, spare key, fuse kit, and manual
One 48_VAC receiver with antenna, mounting hardware, and available cut sheet/drawing downloads
Key Specifications
Feature Specification
Model (Kit) XA_700DK4_48
Series Saga_K4
Transmitters 2 _ 12-button, dual-speed, with E_STOP & key switch
Receiver Voltage 48_VAC
Radio Frequency 433–435_MHz (FHSS)
Operating Range ~100_m (330_ft) line-of-sight
Safety Certification EN_ISO_13849_1 Cat_4 E_STOP
Weight 11.5_lb (5.2_kg)
Enclosure Rating NEMA_4 (IP65)
