Product Overview
THE K806-EQX SYSTEM IS A 3 MOTION, 2 STEP CONTROL SOLUTION FOR A MULTI-FUNCTION CONTROL OR BRIDGE, HOIST AND TROLLEY APPLICATIONS REQUIRING 1 / BOTH / 2 OPERATIONS FOR MULTIPLE HOIST / TROLLEY IN HAZARDOUS LOCATIONS.
- TRANSMITTER APPROVED FOR CLASS I, II, III, DIVISION 2 GROUPS A, B, C, D, E, F, G
- “QI” WIRELESS CHARGING (TRANSMITTER)
- OPTIONAL G-FORCE SHOCK DETECTION
- OPERATING VOLTAGE 24 – 240 VAC / 24 – 160 VDC
- NIMH TRANSMITTER BATTERIES INCLUDED
- 900MHZ FCC, IC AND CE COMPLIANT
- IP 65, PA6 NYLON – 30% GLASS FILLED ENCLOSURE

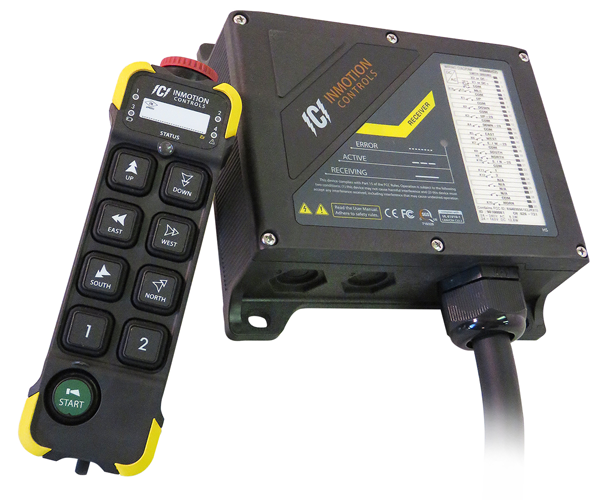

EACH SYSTEM INCLUDES ONE RECEIVING UNIT, ONE TRANSMITTER WITH LEGEND SET, BATTERIES, MOUNTING HARDWARE AND INSTALLATION INSTRUCTIONS.
|
TRANSMITTER (K400-K808 EQX) |
|
|
FREQUENCY |
902.5 – 927.5 MHZ |
|
MODULATION METHOD |
2GFSK |
|
TYPICAL OPERATING RANGE |
300 FEET (100 METERS) |
|
POWER SUPPLY |
2 X 1.5V NIMH “AA” BATTERY |
|
AVERAGE POWER CONSUMPTION |
38MA @ 2.5VDC |
|
OPERATING TEMPERATURE |
-40F TO + 149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSION |
193MM X 57MM X 51MM |
|
RECEIVING UNIT (K400-K808 EQX) |
|
|
FREQUENCY |
902.5 – 927.5 MHZ |
|
CONTROL SYSTEM |
PLL |
|
POWER SUPPLY |
24 – 240 VAC / 24 – 160 VDC (AUTO-SENSING) |
|
OPERATING TEMPERATURE |
-40F TO + 149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSIONS |
190MM X 184MM X 64MM |
|
INSTALLATION AND MOUNTING |
SINGLE BOLT |
