Product Overview
The K606-EQX System is the pinnacle of advanced motion control technology, boasting a versatile 3 motion, 2 step control solution ideal for multi-function operations in hazardous environments. It is specifically designed to effectively manage bridge, hoist, and trolley applications with utmost precision and safety, ensuring operational excellence at all times.
This sophisticated control system features a transmission unit that is compliant with strict safety standards, making it suitable for use in Class I, II, III, Division 2 groups A, B, C, D, E, F, and G locations. With its robust design and state-of-the-art technology, the K606-EQX System not only meets but exceeds industry requirements for reliability and safety.
- Transmitter approved for Class I, II, III, Division 2 Groups A, B, C, D, E, F, G
- “QI” wireless charging feature for the transmitter, enhancing convenience
- Optional G-Force shock detection to safeguard against unexpected impacts
- Wide operating voltage range: 24 – 240 VAC / 24 – 160 VDC for versatile setup options
- NIMH transmitter batteries included, ensuring the system is ready to go
- Operates at 900MHz, fully compliant with FCC, IC, and CE regulations
- IP 65 rated with a PA6 nylon – 30% glass filled enclosure for durability
- Transmitter with an operating range of up to 300 feet (100 meters)
- Typical power consumption of 38mA @ 2.5VDC
- Wide temperature operating range: -40F to +149F, making it suitable for various environments

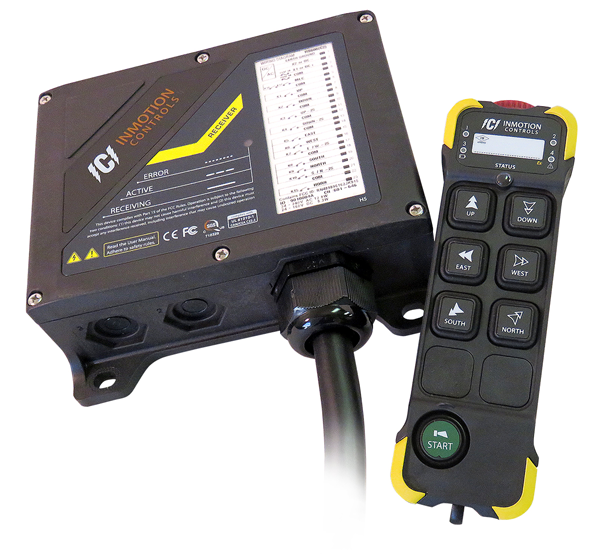

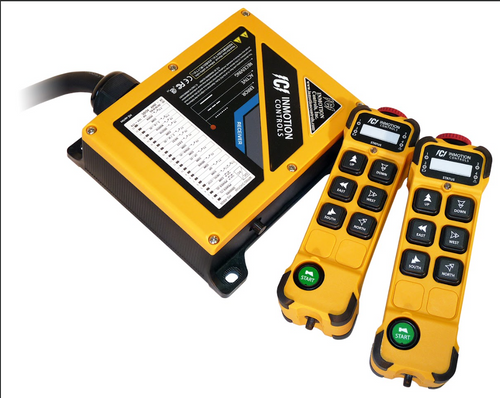

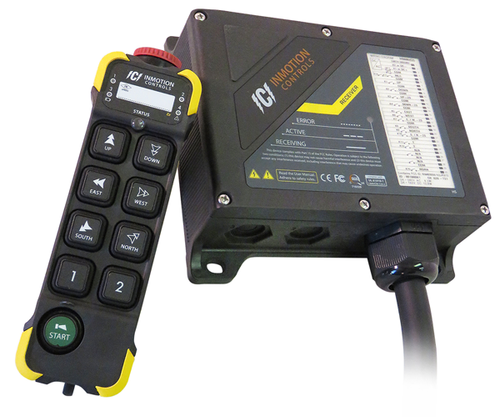

Each K606-EQX System comes complete with one receiving unit, one transmitter equipped with a legend set, all necessary batteries, mounting hardware, and detailed installation instructions. This ensures a streamlined setup process and allows users to get their systems operational without delay.
Built to last and designed for ease of use, the K606-EQX System far surpasses conventional control solutions, delivering resilience and superior performance under the toughest conditions. With a robust housing material made from PA6 (30% glass filled), you can trust that this system will provide long-lasting service, even when exposed to challenging operational environments. Choose the K606-EQX System for all your multi-function control needs and experience unparalleled efficiency and reliability.
