Product Overview
THE K606 FULL VARIABLE SYSTEM IS A 3 MOTION, FULL VARIABLE CONTROL SOLUTION FOR MULTI-FUNCTION CONTROL OR BRIDGE, HOIST AND TROLLEY APPLICATIONS.
- COMPLIES WITH UL 61010-1 AND CSA C22.2
- “QI” WIRELESS CHARGING (TRANSMITTER)
- G-FORCE SHOCK DETECTION WITH DISABLE
- OPERATING VOLTAGE 24 – 240 VAC / 24 – 160 VDC
- NIMH TRANSMITTER BATTERIES INCLUDED
- 900MHZ FCC, IC AND CE COMPLIANT
- IP 65, PA6 NYLON – 30% GLASS FILLED ENCLOSURE

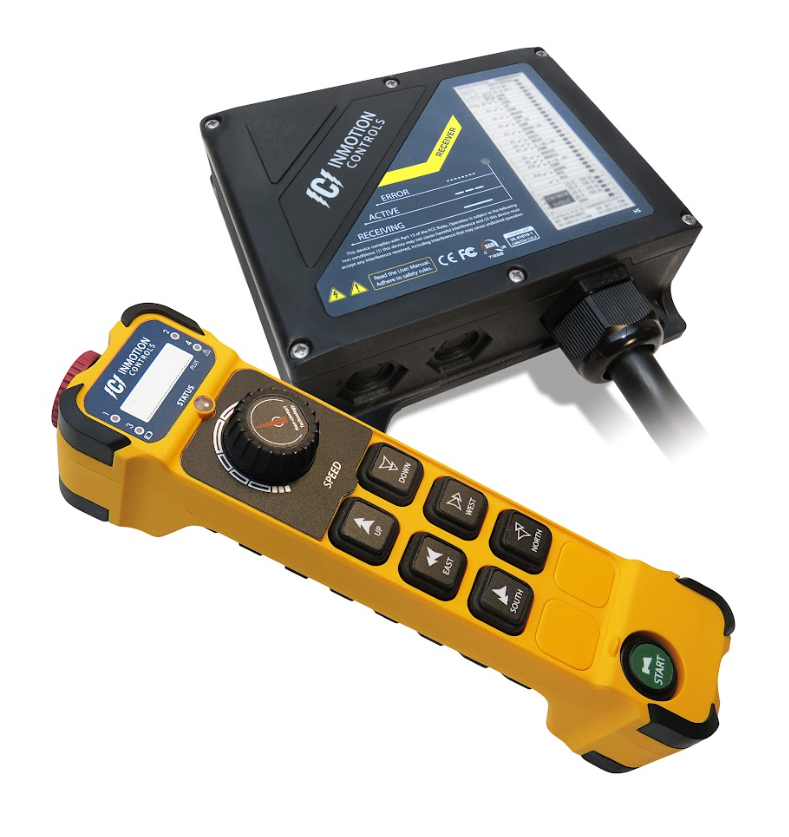

EACH SYSTEM INCLUDES ONE RECEIVING UNIT, ONE TRANSMITTER WITH LEGEND SET, BATTERIES, QI CHARGING PAD, LANYARD, MOUNTING HARDWARE AND INSTALLATION INSTRUCTIONS.
|

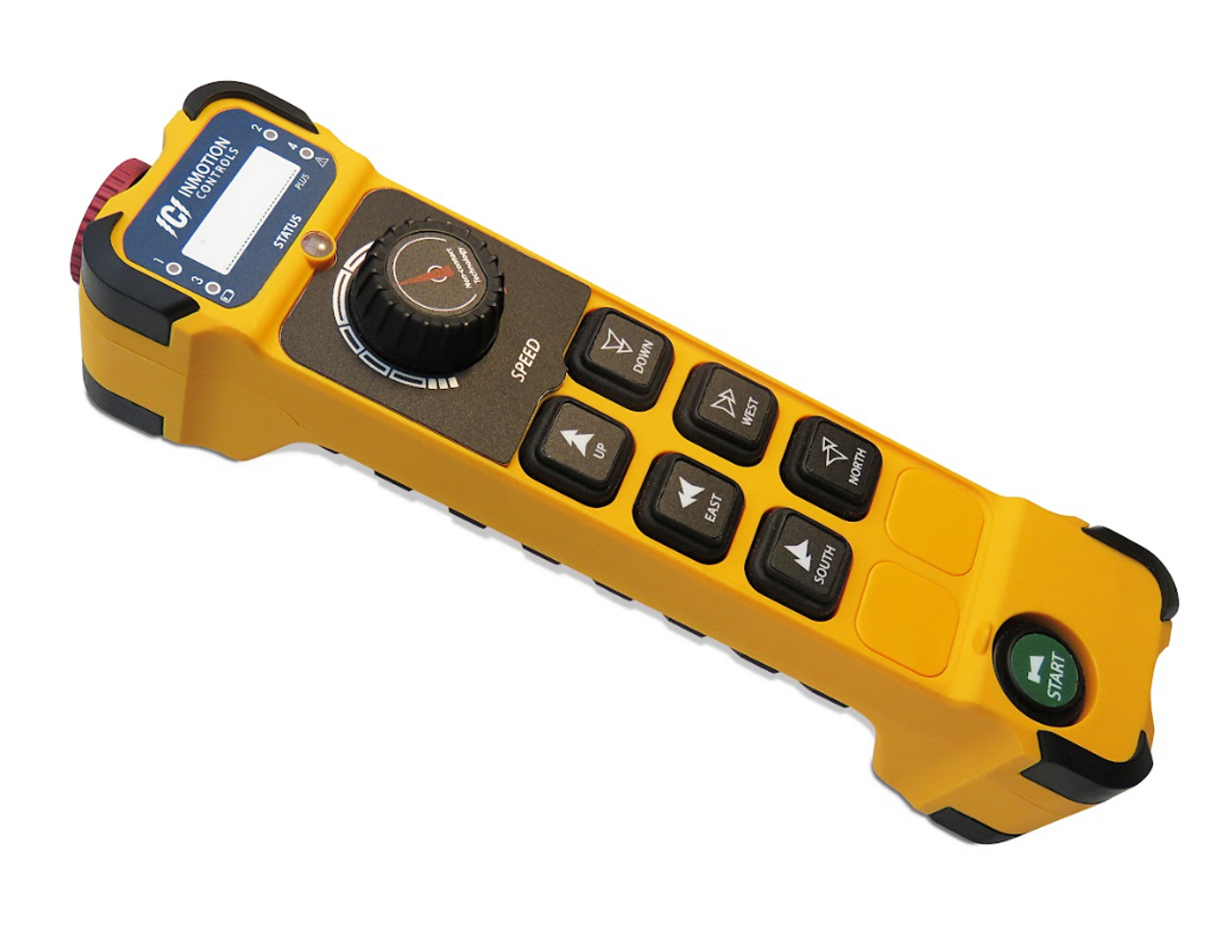

TRANSMITTER (K606 FULL VARIABLE) |
|
|
FREQUENCY |
902.5 – 927.5 MHZ |
|
MODULATION METHOD |
2GFSK |
|
TYPICAL OPERATING RANGE |
300 FEET (100 METERS) |
|
POWER SUPPLY |
2 X 1.5V NIMH “AA” BATTERY |
|
AVERAGE POWER CONSUMPTION |
38MA @ 2.5VDC |
|
OPERATING TEMPERATURE |
-40F TO +149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSION |
9.06”×2.25”×2.00” |
|
RECEIVING UNIT (K606 FULL VARIABLE) |
|
|
FREQUENCY |
902.5 – 927.5 MHZ |
|
CONTROL SYSTEM |
PLL |
|
POWER SUPPLY |
24 ~ 240 VAC / 24 ~ 160 VDC (AUTO-SENSING) |
|
OPERATING TEMPERATURE |
-40F TO + 149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSIONS |
7.46" X 7.22” X 2.52” |
|
INSTALLATION AND MOUNTING |
SINGLE BOLT |
