Product Overview
THE K404 SYSTEM IS A 2 MOTION, 2 STEP CONTROL SOLUTION FOR DUAL FUNCTION EQUIPMENT OR MONORAIL HOIST AND TROLLEY APPLICATIONS.
- 433MHZ MULTI-FREQUENCY WITH AUTO SELECTION
- BI-DIRECTIONAL COMMUNICATION
- AUTO POWER SENSING 24 – 240 VAC / 24 – 160 VDC
- DURABLE PA6 CONSTRUCTION WITH SHOCK BUMPERS
- DOUBLE SAFETY STOP MLC RELAYS
- INTERACTIVE SYSTEM STATUS LED’S
EACH SYSTEM INCLUDES ONE RECEIVING UNIT, TWO TRANSMITTERS WITH LEGEND SETS, BATTERIES, MOUNTING HARDWARE AND INSTALLATION INSTRUCTIONS.
|

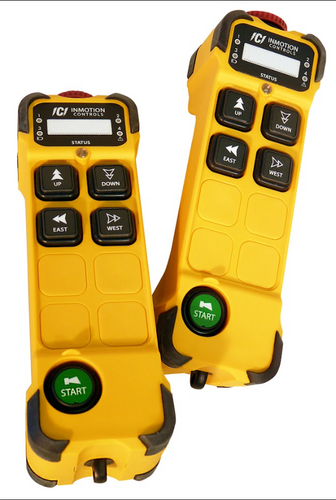

TRANSMITTER (K202 – K808) |
|
|
FREQUENCY |
433MHZ |
|
MODULATION METHOD |
4 FSK |
|
TYPICAL OPERATING RANGE |
300 FT. (100M) |
|
POWER SUPPLY |
2 X 1.5V “AA” BATTERY |
|
AVERAGE POWER CONSUMPTION |
16MA @ 3VDC |
|
OPERATING TEMPERATURE |
-40F TO + 149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSION |
193MM X 57MM X 51MM |
|
RECEIVING UNIT (K200 – K600) |
|
|
FREQUENCY |
433MHZ |
|
CONTROL SYSTEM |
PLL |
|
POWER SUPPLY |
24 – 240 VAC / 24 - 160 VDC (AUTO-SENSING) |
|
OPERATING TEMPERATURE |
-40F TO + 149F |
|
PROTECTION DEGREE |
IP65 |
|
HOUSING MATERIAL |
PA6 (30% GLASS FILLED) |
|
OVERALL DIMENSIONS |
190MM X 184MM X 64MM |
|
INSTALLATION AND MOUNTING |
SINGLE BOLT |
