Product Overview

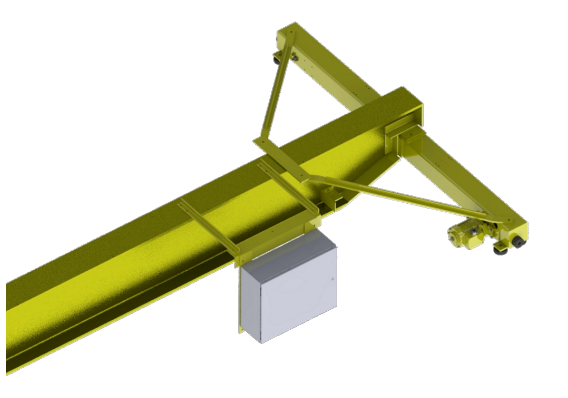

Harrington 10 Ton 50 Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373875
The Harrington C-1373875 is a top-running single-girder overhead crane designed for reliable, medium-duty lifting in industrial environments. With a 10-ton capacity, 50-foot span, and 40-foot lift height, this system is built to deliver consistent performance in CMAA Class C service applications.
Equipped with a high-efficiency electric wire rope hoist, dual-speed motion control, and a plug-and-play festoon system, this crane integrates electrical design with robust structural elements for ease of operation, installation, and service.
System Specifications
Crane Type Top Running, Single Girder
Service Classification CMAA Class C
Rated Capacity 10 U.S. Tons
Span 50 ft – 0 in
Lift Height 40 ft
Power Supply 460V / 3-Phase / 60 Hz
Control Voltage 110 VAC
Configured Price $107,750.75 (Pricing subject to change)
Motion Speeds
Bridge Travel 8 – 80 fpm (Variable Frequency Drive)
Trolley Travel 66 / 11 fpm (Dual Speed, VFD)
Hoist Lift 20 / 3.3 fpm (Dual Speed, VFD)
No Load Hoist Speed Up to 30 fpm
Component Breakdown
Bridge Beam Assembly
- Beam Type: W27x178, ASTM A572 Grade 50
- Capacity: 10 Ton (Relabeled)
- Span: 50 ft
- Paint: Standard Harrington Yellow
- Beam Weight: 9,160.45 lbs
- Notched and pre-configured for flat cable festoon and RY1U hoist
End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Wheel Diameter: 9.84 in
- Hardness: 160–220 BHN
- Motor: 1 HP / 1.8 A each
- Rail Size: 60# ASCE (2.375")
- Traverse Speed: 80 fpm
- Net Weight: 564.5 lbs each
- Includes motor plug kit for streamlined installation
Electric Wire Rope Hoist
- Model: RYU100C40HDD4
- Capacity: 10 Ton
- Lift Height: 40 ft
- Power: 460V / 3-Phase / 50–60 Hz
- Amperage Draw: 27.4 A
- Hoisting Speed: 20 / 3.3 fpm (adjustable via VFD)
- No-Load Hoisting Speed: 30 fpm
- Traversing Speed: 66 / 11 fpm
- Flange Range: 13.79 – 20.00 in
- Net Weight: 2,428 lbs
- UL and CSA Certified
- Includes crane connection kit
Bridge Control Panel
- Model: P1V4640C45R11N1
- VFD Driven System
- 460V / 3Ph / 60Hz
- Fused for 32.4 A total hoist/trolley load
- Mainline Disconnect Fuse: 45 A
- Plug-and-play design for rapid hookup
Pendant Control
- L-Series, NEMA 4 Rated
- 8-Button Pendant with momentary On/Off operation
- Dual-speed control for bridge, trolley, and hoist motion
- Pendant Drop Length: 40 ft (measured from beam bottom to pendant bottom)
- 16P Plug Connection for simplified setup
Flat Cable Festoon System
- Flat Cable Festoon for Power & Pendant (Plug and Play)
- Voltage: 460V / 3Ph / 60Hz
- Amperage: 26.1 A per line
- Designed for W27x178 beam and RY1U hoist
Wiring Assembly
- Power System Amperage: 27.9 A
- Includes wiring for two 1.8 A end truck motors
- NEMA 4 Rated, Liquidtight Conduit
- Plug-and-play architecture for simplified field installation
Regulatory & Safety Compliance
This crane system complies with major U.S. safety and industry standards:
- OSHA 1910.179 – Overhead and Gantry Cranes
- ASME B30.2, B30.16, B30.17 – Crane and Hoist Safety
- ASME HST-4 – Electric Wire Rope Hoists
- CMAA 74 – Crane Manufacturers Association of America Specifications
- NFPA 70 – National Electrical Code
- UL Listed / CSA Certified Components
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
