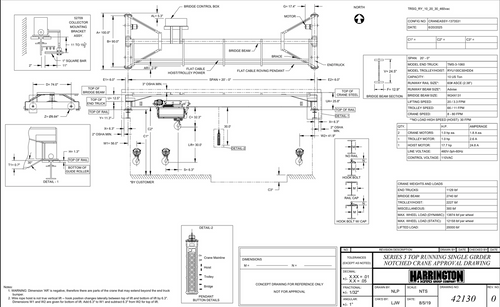

Harrington 10 Ton 20' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373531
The C-1373531 is a compact, heavy-duty overhead crane system engineered by Harrington Hoists for Class C service applications. With a 10-ton rated capacity and a 20-foot span, this single girder crane delivers high performance, reliability, and smooth operation via dual-speed VFD-driven controls.
This plug-and-play crane is well-suited for demanding lifting operations in manufacturing, maintenance, and industrial environments where shorter spans and high capacity are required in limited spaces.
General Specifications
Crane Type Top Running, Single Girder
Service Classification CMAA Class C
Rated Capacity 10 U.S. Tons
Span 20 ft – 0 in
Lift Height 30 ft
Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110VAC
Rail Compatibility 60# ASCE Rail (2.375" head width)
Paint Finish Standard Harrington Yellow
Performance Data
MotionSpeed (Dual Speed / VFD Adjustable)
Bridge Travel 8–80 fpm
Trolley Travel 66 / 11 fpm
Hoisting Speed 20 / 3.3 fpm
No Load Hoisting Speed 30 fpm
Included Crane Components
- W24x131 Structural Bridge Beam Assembly
- TMS3-1060 Top Running Motorized End Trucks
- RYU100C30HDD4 Wire Rope Hoist (30 ft Lift)
- P1V4640C45R11N1 Bridge Control Panel (VFD, Plug-and-Play)
- Roving Pendant Station (30 ft Drop)
- Festooning System – Flat Cable for Power and Control
- Crane Wiring with Liquid tight Conduit
- Runway Collector Bracket
Component Details
Bridge Beam
- Size: W24x131
- Span: 20 ft
- Rating: 10 Ton
- Material: ASTM A572 Grade 50
- Finish: Harrington Yellow
- Configuration: Notched Beam for Single Girder Use
- Weight: 2,859.70 lbs
- Note: Subject to availability and pricing at the time of drawing approval

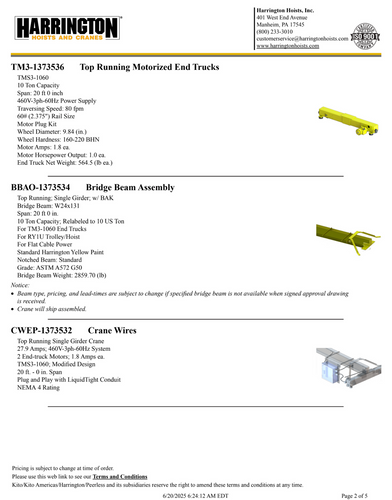

End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Wheel Diameter: 9.84 in
- Wheel Hardness: 160–220 BHN
- Motor Output: 1.0 HP (1.8 A each)
- Speed: 80 fpm
- Rail: 60# ASCE (2.375")
- Weight: 564.5 lbs each

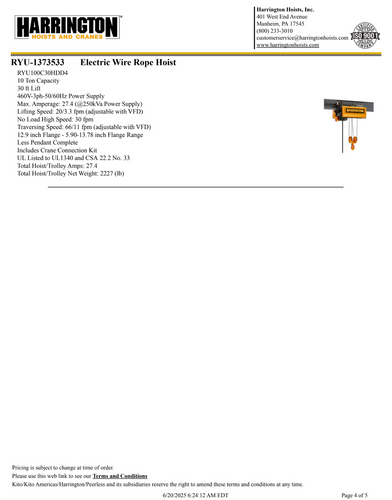

Hoist
- Model: RYU100C30HDD4
- Lift Height: 30 ft
- Power: 460V / 3Ph / 50–60Hz
- Hoist Speed: 20 / 3.3 fpm (VFD Adjustable)
- No Load Speed: 30 fpm
- Trolley Speed: 66 / 11 fpm
- Total Amps: 27.4
- Flange Fit: 5.90–13.78 in
- Certifications: UL1340, CSA 22.2 No. 33
- Weight: 2,227 lbs
- Includes: Crane Connection Kit

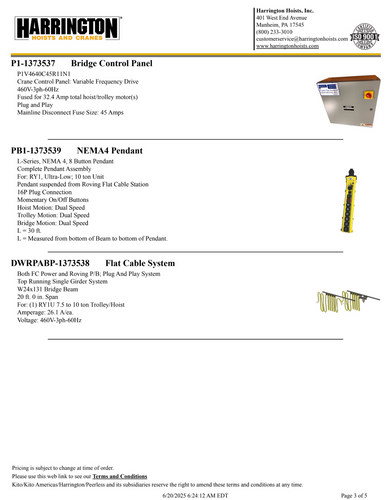

Control Panel
- Model: P1V4640C45R11N1
- Input: 460V / 3Ph / 60Hz
- Hoist/Trolley Fuse Load: 32.4 Amps
- Mainline Disconnect: 45 A Fuse
- Type: VFD Driven, Plug-and-Play
Pendant Station
- Style: L-Series NEMA 4
- Buttons: 8, Momentary On/Off
- Motion Control: Dual-Speed (Hoist, Trolley, Bridge)
- Pendant Drop Length: 30 ft (Beam to Pendant)
- Connector: 16P Plug
Festoon System
- Application: Power & Control via Flat Cable
- Voltage: 460V / 3Ph / 60Hz
- Amperage: 26.1 A
- Compatible with: W24x131 Bridge, RY1U 7.5–10 Ton Trolley/Hoist
Crane Wiring
- System Load: 27.9 Amps
- End Truck Motors: 1.8 Amps each
- Enclosure: NEMA 4 Rated
- Installation: Plug-and-Play, Liquidtight Conduit
Compliance & Standards
This crane system is built in accordance with the following codes and standards:
- OSHA 29 CFR 1910.179 – Overhead and Gantry Cranes
- ASME B30.2 – Overhead and Gantry Cranes
- ASME B30.16 – Overhead Hoists
- ASME B30.17 – Cranes and Monorails
- ASME HST-4 – Wire Rope Hoists
- CMAA 74 – Top Running & Under Running Cranes
- NFPA 70 – National Electrical Code
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
