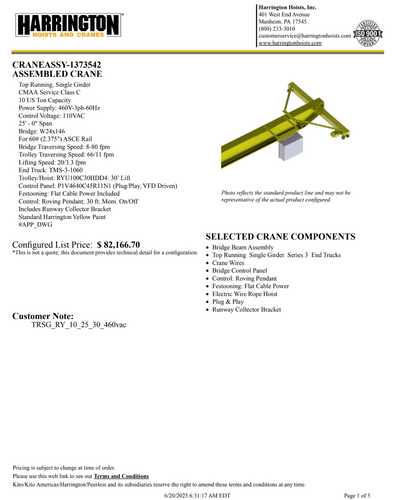

Harrington 10 Ton 25' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373542
Engineered for strength, efficiency, and durability, the Harrington C-1373542 is a comprehensive top-running single-girder overhead crane system designed for demanding industrial applications. Featuring a 10-ton lifting capacity, a 25-foot span, and a 30-foot lift height, this assembled system is ideal for manufacturing, fabrication, and general material handling applications.
The crane utilizes Variable Frequency Drive (VFD) control for smooth dual-speed operation across bridge, trolley, and hoist motions and is delivered with plug-and-play wiring, flat cable festooning, and a robust wire rope hoist.
General Specifications
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Rated Capacity 10 U.S. Tons
Span 25 ft – 0 in
Lift Height 30 ft
Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110VAC
Rail Compatibility 60# ASCE (2.375") Rail
Paint Finish Standard Harrington Yellow
Performance Data
MotionSpeed (Dual Speed / VFD Adjustable)
Bridge Travel 8–80 fpm
Trolley Travel 66 / 11 fpm
Hoisting Speed 20 / 3.3 fpm
No Load Hoisting Speed 30 fpm
System Components & Details
Bridge Beam Assembly
- Beam: W24x146
- Material: ASTM A572 Grade 50
- Weight: 3,903.45 lbs
- Notched Beam, Standard Harrington Yellow Paint
- Designed for TM3-1060 End Trucks and RY1U Trolley/Hoist
Motorized End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Wheel Diameter: 9.84 in
- Motor: 1.0 HP / 1.8 A each
- Traverse Speed: 80 fpm
- Designed for 60# Rail
- Weight: 564.5 lbs (each)
Electric Wire Rope Hoist
- Model: RYU100C30HDD4
- Capacity: 10 Ton
- Lift: 30 ft
- Voltage: 460V / 3Ph / 50–60Hz
- Total Hoist/Trolley Amps: 27.4
- Traverse Speed: 66/11 fpm
- UL Listed (UL1340) and CSA Certified
- Flange Range: 5.90–13.78 in
- Net Weight: 2,227 lbs
Bridge Control Panel
- Model: P1V4640C45R11N1
- Plug-and-Play, VFD Driven
- Main Disconnect Fuse: 45 A
- Hoist/Trolley Fuse: 32.4 A
Pendant Station
- L-Series, 8-Button, NEMA 4 Rated
- Roving Pendant: 30 ft Drop
- Motion Control: Dual Speed (Bridge, Trolley, Hoist)
- Plug: 16P Connector
Flat Cable Festooning
- Plug-and-Play Flat Cable System
- For W24x146 Beam and 25 ft Span
- Voltage: 460V / 3Ph / 60Hz
- Amperage: 26.1 A
Crane Wiring
- Amperage: 27.9 A
- Liquidtight Conduit with NEMA 4 Enclosure
- 25 ft Span Support
- Includes Modified TMS3-1060 Motors
Certifications & Compliance
Manufactured to meet or exceed:
- OSHA 29 CFR 1910.179
- ASME B30.2, B30.16, B30.17
- ASME HST-4
- CMAA 74
- NFPA 70 (National Electrical Code)
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
