Harrington 10 Ton 60' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373607

The C-1373607 is a high-performance, top-running single-girder crane built for dependable operation in demanding industrial environments. Built to CMAA Class C standards, this 10-ton crane system features a 60-foot span, 30-foot lift, and plug-and-play connectivity for streamlined installation and startup.

Equipped with a VFD-driven hoist and traverse system, dual-speed motion controls, and a flat cable festoon, this crane provides precise and efficient material handling across a wide working area.

System Overview

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Rated Capacity 10 U.S. Tons

Span 60 ft – 0 in

Lift Height 30 ft

Power Supply 460V / 3 Phase / 60 Hz

Control Voltage 110VAC

Performance & Motion

Bridge Traverse 8–80 fpm (VFD Controlled)

Trolley Traverse 66 / 11 fpm (Dual Speed, VFD)

Hoisting Speed 20 / 3.3 fpm (Dual Speed, VFD)

No-Load Hoist Speed 30 fpm

Core Components

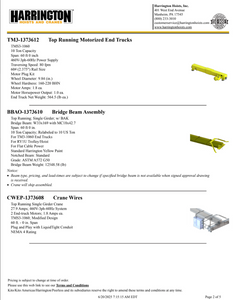

Bridge Beam Assembly

• Beam: W33x169 with MC18x42.7 Channel Cap
• Length: 60 ft
• Rated for 10 US Ton
• Grade: ASTM A572 Grade 50
• Weight: 12,548.58 lbs
• Notched for festoon compatibility
• Painted Harrington Yellow
• Designed for use with TMS3-1060 End Trucks and RY1U Hoist

End Trucks

• Model: TMS3-1060
• Capacity: 10 Ton
• Rail Type: 60# ASCE (2.375")
• Wheel Diameter: 9.84 in
• Wheel Hardness: 160–220 BHN
• Motor Output: 1.0 HP (each)
• Motor Amps: 1.8 A (each)
• Traverse Speed: 80 fpm
• Net Weight: 564.5 lbs each

Electric Wire Rope Hoist

• Model: RYU100C30HDD4
• Capacity: 10 Ton
• Lift: 30 ft
• Voltage: 460V / 3Ph / 50–60Hz
• Hoist Speed: 20 / 3.3 fpm (VFD Adjustable)
• Trolley Speed: 66 / 11 fpm (VFD Adjustable)
• No-Load Speed: 30 fpm
• Flange Range: 5.90 – 13.78 in
• Flange Diameter: 11.5 in
• Max Amps: 27.4
• Weight: 2,227 lbs
• UL Listed to UL1340 / CSA 22.2 No. 33
• Includes Crane Connection Kit

Bridge Control Panel

• Model: P1V4640C45R11N1
• Power: 460V / 3Ph / 60Hz
• Fused for 32.4 A total (Hoist + Trolley)
• Disconnect Fuse Size: 45 A
• Plug-and-Play Design
• VFD Included

Pendant Control

• NEMA 4 Rated, L-Series
• 8-Button Control Pendant
• Controls: Dual-Speed for Hoist, Trolley, and Bridge
• Length: 30 ft (beam bottom to pendant)
• 16P Plug Connector
• Momentary On/Off Operation
• Suspended from roving flat cable

Flat Cable Festoon System

• Supports Power and Roving Pendant
• Designed for W33x169 Beam with MC18 Channel Cap
• Plug-and-Play
• Voltage: 460V / 3Ph / 60Hz
• Amperage: 26.1 A

Crane Wiring

• Total System Amps: 27.9
• Includes 2 end-truck motors at 1.8 A each
• Rated NEMA 4
• Span: 60 ft
• Plug-and-Play with Liquidtight Conduit

Standards & Compliance

This crane meets or exceeds the following standards:

• OSHA 1910.179 – Overhead & Gantry Cranes
• ASME B30.2, B30.16, B30.17 – Crane & Hoist Safety Standards
• ASME HST-4 – Wire Rope Hoist Performance
• CMAA 74 – Crane Design Specifications
• NFPA 70 – National Electrical Code
• UL/CSA Certified Electrical & Mechanical Components

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
