Description

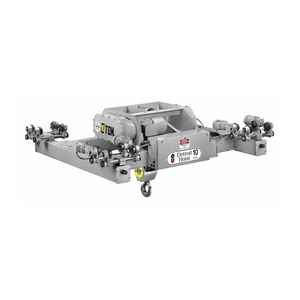

The UNDER RUNNING DOUBLE GIRDER Model DB11U41-26 is the epitome of robust engineering, designed to deliver unparalleled performance in moderate lifting tasks. With an impressive capacity of 5.50 tons, this crane is meticulously crafted to ensure reliability and efficiency, making it an essential asset in various industrial environments where precision lifting is critical.

Equipped with a dual-part reeving system, this crane achieves a lift height of 41 feet and 7 inches, allowing for efficient and smooth vertical movements of loads. The advanced engineering behind the Model DB11U41-26 ensures that your lifting operations are not only swift but also safe, significantly enhancing productivity across applications.

  • Capacity: 5.50 tons, ideal for moderate lifting tasks.
  • Hoist Lift Speed: Maximum of 26.00 FPM for efficient vertical lifting operations.
  • Hoist Motor: 7.5 kW, ensuring smooth and controlled operation.
  • Hoist Control: Closed-loop vector VFD for optimal performance and safety.
  • Trolley Speed: Maximum of 80.00 FPM for rapid horizontal load movement.
  • Trolley Motor: Equipped with 4 motors rated at 0.3 kW for reliable propulsion.
  • Trolley Control: Sensorless vector VFD for precision and efficiency in trolley movements.
  • Power Supply: Standard 230VAC-3PH-60HZ, ensuring compatibility with most electrical setups.
  • CMAA Class: Compliant and suitable for indoor service in atmosphere class D.
  • Trolley Gauge: 84.0000 inches for enhanced stability during operation.
  • Approximate Weight: 2400.00 lbs, designed for durability and stability.

The Model DB11U41-26 crane stands out not only for its advanced features but also for its durability, constructed from the highest quality materials to withstand various operational challenges. Its clever design integrates features such as a 4-pole AC squirrel cage motor, premium grade graphite ductile iron wheels, and advanced braking systems that prevent motor fatigue while providing precise control.

For organizations looking to optimize their material handling processes, the UNDER RUNNING DOUBLE GIRDER Model DB11U41-26 is a definitive choice that combines performance, safety, and operational efficiency. Elevate your lifting capabilities with this outstanding crane that sets a new standard in heavy lifting technology.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
