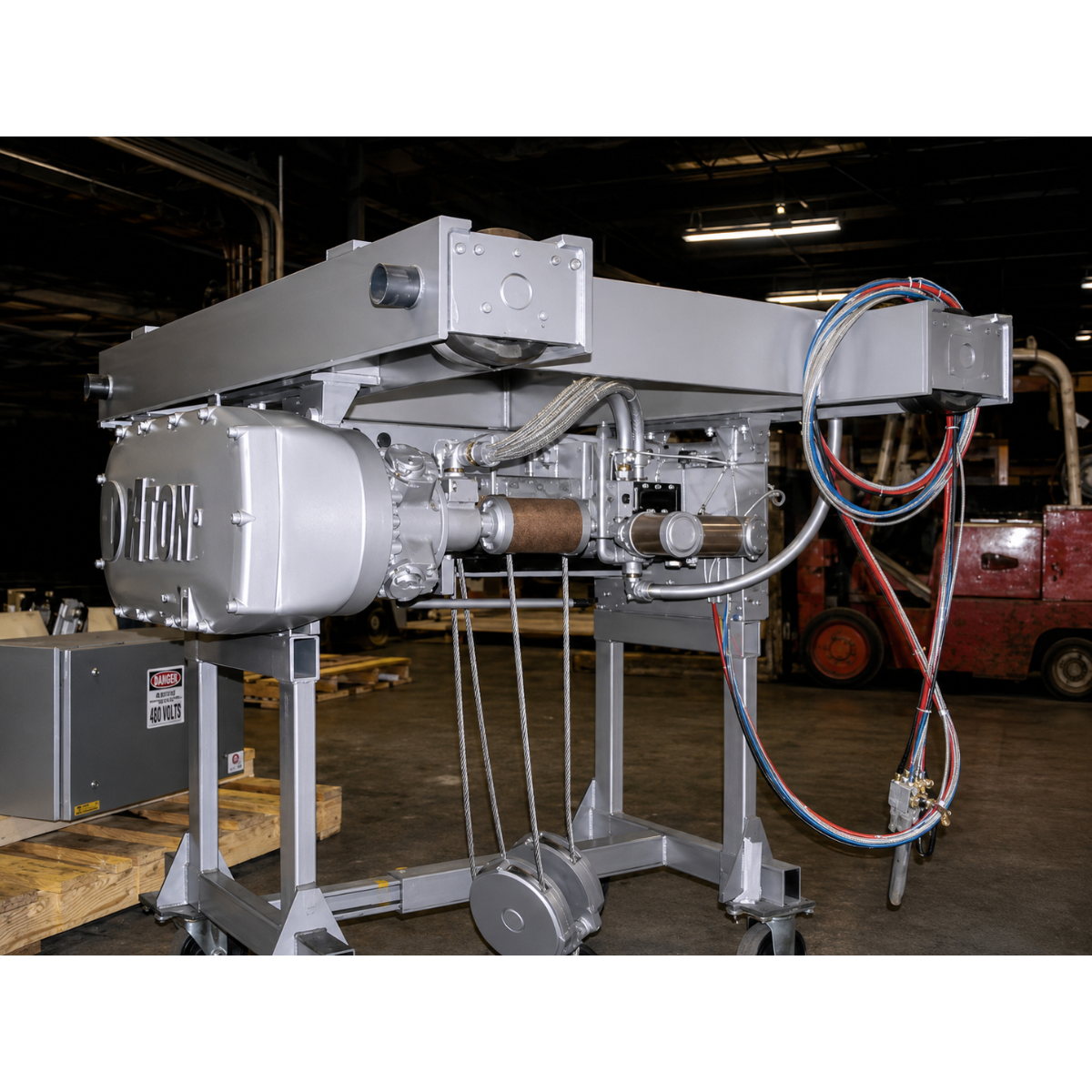

Detroit Hoist Top Running Double Girder Crane (Low Profile), 5.5 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB11LH59-26

Write a Review
$27,000.00
$23,625.00
(You save $3,375.00 )
SKU: DB11LH59-26
Weight: 2,200.00 LBS
Shipping: Calculated at Checkout
Capacity: 10,000 - 19,999 lbs
Lift: 26 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 5.5 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB11LH59-26

Detroit Hoist Top Running Double Girder Crane (Low Profile), 5.5 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB11LH59-26

$27,000.00
$23,625.00
(You save $3,375.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 5.5 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 92" Trolley Gauge, Model DB11LH59-26

$27,000.00
$23,625.00
(You save $3,375.00 )

Experience unmatched lifting performance with the Top Running Double Girder Low Profile Crane, model DB11LH59-26 from Detroit. This innovative crane provides the ideal solution for facilities with limited overhead clearance while still delivering robust capacity and efficient operation across various industrial environments.

With a remarkable capacity of 5.50 tons, this crane is built to handle moderate loads effortlessly, ensuring safe and fast material handling. Its low-profile design maximizes your workspace without sacrificing functionality, making it a perfect choice for tight industrial locations.

  • Top-running double girder low-profile design for optimal stability and support.
  • 2 part line reeving system allowing lifts up to 59 feet 5 inches.
  • Hoist lift speed of up to 26 feet per minute for quick vertical movement.
  • Powerful 7.5 KW hoist motor providing reliable lifting performance.
  • Closed-loop vector Variable Frequency Drive (VFD) control for enhanced lifting precision.
  • Max trolley speed of 80 feet per minute for efficient horizontal movements.
  • Equipped with two 0.55 kW trolley motors for smooth operation along the runway.
  • Sensorless vector VFD control for responsive trolley movement and increased safety.
  • Compatible with 230VAC, 3-phase, 60Hz power supply for flexibility in installations.
  • CMAA Class D classification designed for standard weather-resistant service.
  • 92-inch trolley gauge for enhanced operational reliability.
  • Lightweight design at approximately 2200 lbs for easy installation and maintenance.
  • Durable construction featuring premium grade graphite ductile iron components.
  • UL508A c UL us listed industrial control panel ensuring high safety standards.
  • Dynamic braking system for improved load control and reduced wear on components.
  • Over-weight protection to safeguard against excess load conditions.
  • Adjustable electronic encoder limits for enhanced operational safety and functionality.

The Top Running Double Girder Low Profile Crane is engineered for efficiency and durability, ensuring your lifting operations are not only safe but also highly productive. Invest in this crane today to elevate your material handling capabilities and achieve superior performance in all your lifting tasks.

The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
