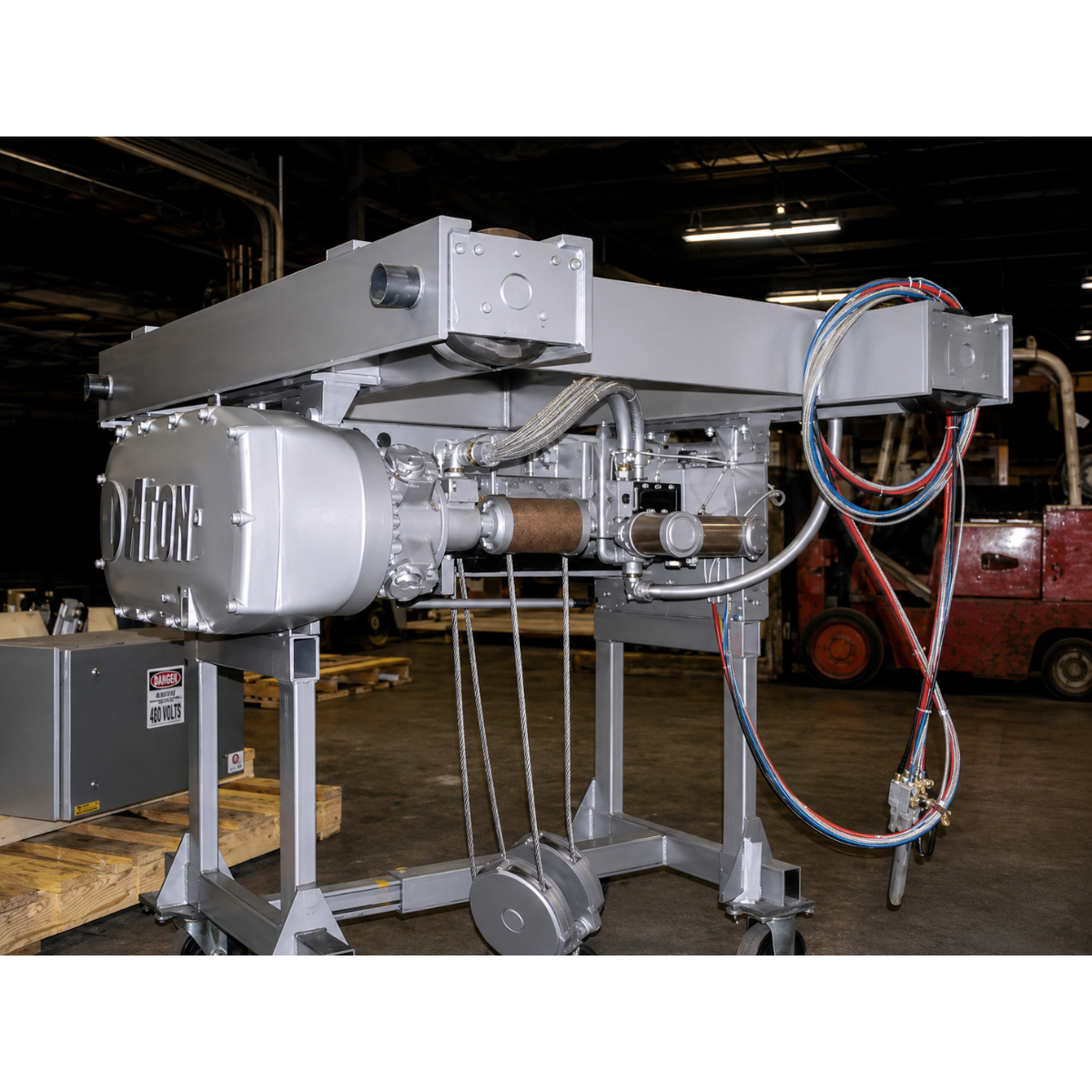

Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26
DB7LH41-26
Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26
DB7LH41-26

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26

Write a Review
$25,000.00
$21,875.00
(You save $3,125.00 )
SKU: DB7LH41-26
Weight: 2,000.00 LBS
Shipping: Calculated at Checkout
Capacity: 5,000 - 9,999 lbs
Lift: 41.6 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26

Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26

$25,000.00
$21,875.00
(You save $3,125.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 3.3 Ton Capacity, 26 FPM Lift Speed, 80 FPM Trolley Speed, 78" Trolley Gauge, Model DB7LH41-26

$25,000.00
$21,875.00
(You save $3,125.00 )
Description

The Top Running Double Girder Low Profile model DB7LH41-26 by Detroit is a superior lifting solution designed for high efficiency and safety in industrial operations. With a robust capacity of 3.30 tons, this hoist caters to a variety of moderate load handling needs, enhancing productivity with its space-saving low-profile design that allows for optimal use of overhead space.

Engineered for excellence, this model features a 2-part line reeving system, enabling a maximum lift height of 41 feet and 7 inches. The hoist's impressive lift speed of 26 feet per minute ensures rapid vertical transfer of materials, making it indispensable in time-sensitive environments. Powered by a powerful 7.5 kW motor, the hoist guarantees smooth and dependable operations, enhanced by the advanced closed-loop vector Variable Frequency Drive (VFD) control system for precise and responsive movements.

  • Top Running Double Girder Low Profile: Installs above structural lines for space efficiency.
  • 3.30 Ton Capacity: Ideal for moderate industrial loads.
  • 2-Part Line Reeving System: Capable of lifting loads up to 41 feet and 7 inches.
  • Hoist Lift Speed: 26 feet per minute for effective vertical motion.
  • 7.5 kW Hoist Motor: Ensures reliable power for various lifting demands.
  • Closed-Loop Vector VFD Control: Provides accurate and responsive control.
  • Trolley Speed: Travels at a maximum of 80 feet per minute for swift horizontal movement.
  • Dual Trolley Motors: Each rated at 0.55 kW, promises seamless trolley operation.
  • Sensorless Vector VFD Control: Grants efficient control of lateral movements.
  • Power Supply Compatibility: Operates at 230VAC, 3-phase, 60Hz, (+-5% tolerance).
  • CMAA Class D: Built to withstand standard weather conditions, suitable for outdoor placement.
  • 78 Inch Trolley Gauge: Allows optimal movement between runway beams.
  • Approximate Weight of 2000 lbs: Lightweight yet structurally sound for easier installation.
  • Advanced Motor Features: Inverter-rated squirrel cage motors and dynamic braking technology enhance safety and performance.
  • UL508A Compliance: Features an industrial control panel certified for robust use.
  • Customizable Options: Adjustable lift and speed settings available for specific operational needs.

The DB7LH41-26 is not just a hoist; it's a comprehensive lifting solution tailored for modern industrial applications. With its cutting-edge technology and dependable performance features, it stands as a trusted choice for businesses seeking to elevate their operational efficiency. Choose the Detroit Top Running Double Girder Low Profile hoist for superior lifting capability and ensure your operations run smoothly and effectively.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
