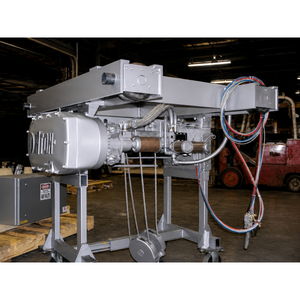

Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12
DB40LH29-12
Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12
DB40LH29-12

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12

Write a Review
$39,000.00
$34,125.00
(You save $4,875.00 )
SKU: DB40LH29-12
Weight: 2,600.00 LBS
Shipping: Calculated at Checkout
Capacity: 40,000 - 49,999 lbs
Lift: 29.4 ft
Mounting: Top Running
Configuration: Double Girder
Voltage: 230/3/60
Adding to cart… The item has been added
Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12

Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12

$39,000.00
$34,125.00
(You save $4,875.00 )

Detroit Hoist Top Running Double Girder Crane (Low Profile), 20 Ton Capacity, 12 FPM Lift Speed, 80 FPM Trolley Speed, 108" Trolley Gauge, Model DB40LH29-12

$39,000.00
$34,125.00
(You save $4,875.00 )
Description

Experience the pinnacle of heavy lifting efficiency with the Top Running Double Girder Low Profile Crane, designed explicitly for demanding industrial environments. With a robust lifting capacity of 20.00 tons, this crane ensures seamless handling of heavy loads, making it an essential addition to your equipment lineup.

This advanced crane is engineered for flexibility and operational excellence. The top-running double girder low-profile design allows for an impressive lift height of 29'­5" while maintaining a compact footprint. Its combination of features and specifications makes it ideal for a variety of applications such as warehouses, manufacturing plants, and construction sites.

  • Suspension / Mount: Top-running double girder low-profile design for superior load support.
  • Capacity: Lifting capability of 20.00 tons to handle the heaviest loads.
  • Reeving / Lift: 5 part line reeving for ultimate lift versatility.
  • Hoist Lift Speed: Maximum speed of 12.00 FPM for efficiency in vertical movements.
  • Hoist Motor: Powerful 13.4 kW motor ensuring reliable operation.
  • Hoist Control: Features closed-loop vector Variable Frequency Drive (VFD) control for smooth operation.
  • Trolley Speed: Achieves a maximum speed of 80.00 FPM for rapid load transportation.
  • Trolley Motor: Dual 0.86 kW motors for consistent performance along runway beams.
  • Trolley Control: Sensorless vector VFD for precise load maneuvering.
  • Power Supply: Electric operation at 230VAC, 3-phase, 60Hz for broad compatibility.
  • CMAA Class: Rated CMAA Class D, making it suitable for outdoor use in varying weather conditions.
  • Trolley Gauge: Generous gauge of 108.0000 inches for agile trolley movement.
  • Approximate Weight: Weighs around 2600.00 lbs for manageable installation and movement.
  • Motor Features: 4-pole, AC squirrel cage, inverter-rated hoist and trolley motors ensure durability.
  • Safety Feature: Over-weight protection through frequency drive enhances operator safety.
  • Braking Assistance: 100% dynamic braking options with resistor or regenerative converter applications.
  • Control Voltage: Options for both 110 VAC and 24 VDC pushbutton control voltages for flexibility.
  • Speed Adjustment: Ability to request 90 Hz hoist speed for up to 30% of rated load.

The Top Running Double Girder Low Profile Crane exemplifies strength, safety, and efficiency. With its innovative design and robust features, this crane is set to elevate your operational capabilities to new heights. Invest in reliable lifting solutions today and optimize your workspace performance.

Warranty Information
The Company warrants the equipment against defects in material and workmanship for one (1) year from the date of shipment, provided operation is maintained within Class D service conditions, and will replace free of charge, F.O.B. its manufacturing plant, any part (other than wire rope or rope guide rings) found defective, provided the purchaser immediately informs the Company of the defect and no repairs or alterations have been performed by the purchaser or a third party without the Company's written approval; this warranty excludes normal wear and parts inherently subject to premature wear, and the Company is not responsible for phase reversal on the connected power station network, nor liable for damages caused by improper installation or use, lifting loads above rated capacity, or consequential damages, claims, expenditures, or losses arising from operational delays or work stoppages caused by defective equipment. All repairs during the warranty period must be authorized by the Company, and the warranty applies only if the purchaser provides a signed Equipment Certification Form certifying that the equipment has been properly installed, tested, and is in satisfactory working order; the warranty excludes damage caused by improper storage, installation, unauthorized repairs, misuse, improper wiring or electrical service, improper handling, overloading, unsuitable fuels or oils, improper modifications or maintenance, faulty construction or foundations, unsuitable building grounds, chemical/electro-chemical/electrical influences, or other circumstances beyond the Company's fault, and all warranties become null and void if the purchaser or any subsequent user engages in such improper conduct or if such circumstances occur, in which case the Company is free of all obligations, costs, and liabilities under the warranty. All warranties extend only to the purchaser in privity of contract with the Company, and the purchaser - not the Company - is solely responsible for informing equipment users of all warranty and liability limitations; except as stated, no express, implied, or statutory warranty is made by the Company, and the Company is free of any warranty obligations should the purchaser default on agreed payment terms.
