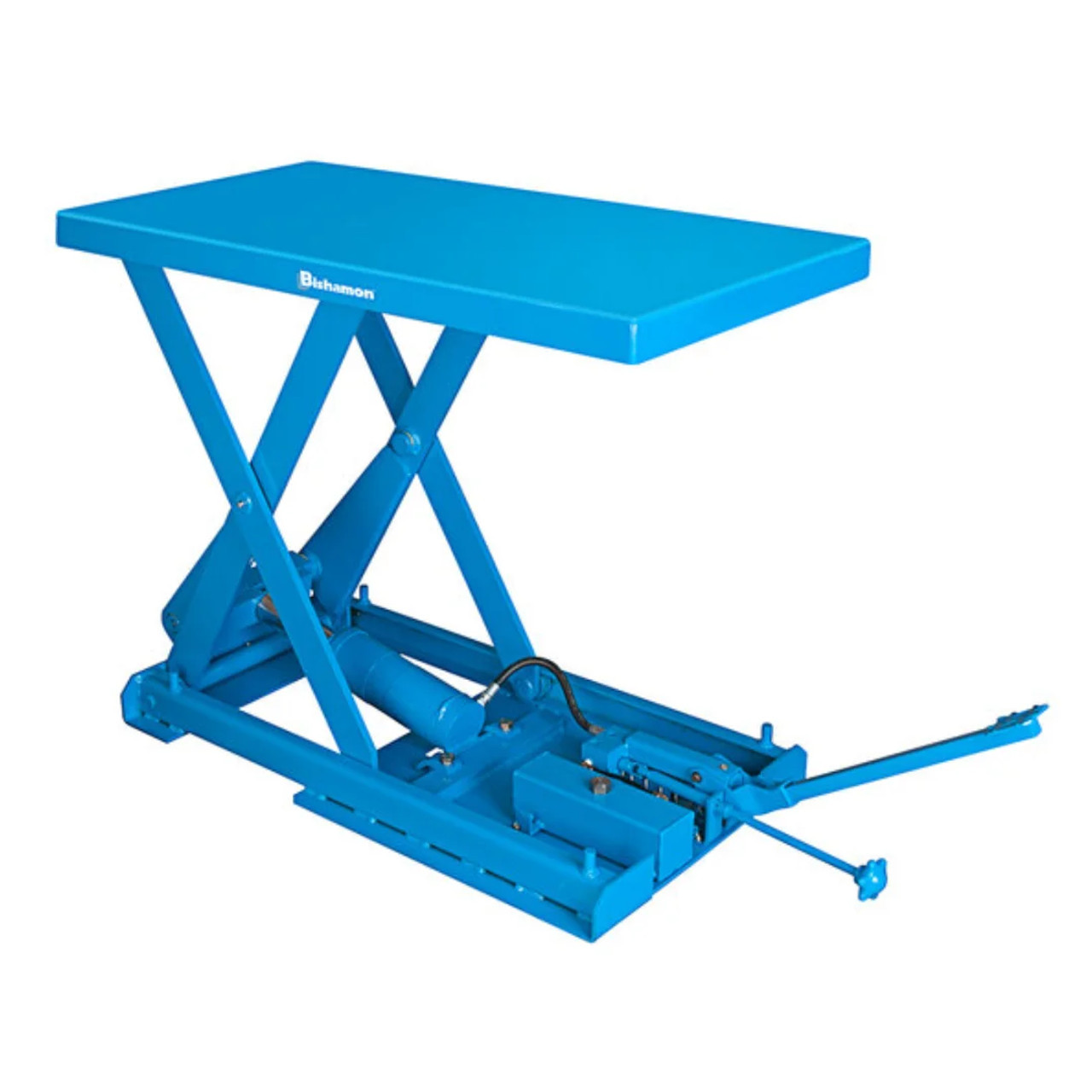

Bishamon X-50SP Double Scissor Lift Table – Air/Hydraulic

High Lift. Air-Powered Precision. Compact Vertical Reach.

The Bishamon X-50SP combines high lifting performance with air/hydraulic operation, delivering smooth, powerful vertical movement up to 54.25 inches. With its double-scissor design, this lift table provides exceptional height while maintaining a small footprint—perfect for tight workspaces requiring ergonomic access to materials.

This 1,100 lb. capacity table is powered by compressed air, making it ideal for environments where electric power is limited or not preferred. Its durable steel construction, compact profile, and easy-to-use controls make it a smart solution for production, assembly, inspection, and maintenance applications.

Key Features

• Air/Hydraulic Operation: Reliable lifting in non-electric environments
• Double Scissor Lift Design: Offers extended vertical travel (over 54 inches) with a compact platform
• Ergonomic Handling: Elevates heavy loads to optimal working heights to reduce operator strain
• Heavy-Duty Construction: Welded steel frame with a durable powder-coated finish
• Compact Table Size: Fits into confined work areas without sacrificing height performance
• Industrial-Grade Durability: Built for high-cycle usage in rugged work conditions

Applications

• Cleanrooms or flammable environments (non-electric)
• Manufacturing and assembly stations
• Maintenance and repair operations
• Staging and inspection areas

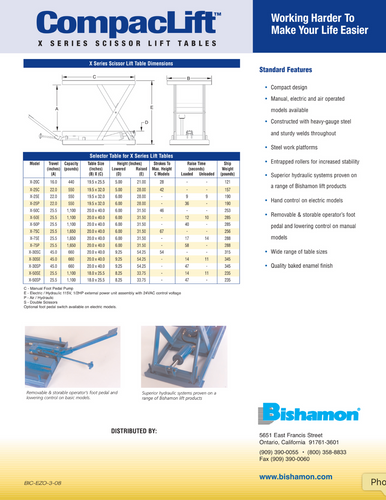

Technical Specifications – X-50SP

FeatureSpecification

Model X-50SP (Air/Hydraulic)

Lift Type Double Scissor Lift

Operation Compressed Air / Hydraulic

Capacity 1,100 lbs (500 kg)

Travel 45.0 inches

Platform Size 18.0 x 25.5 inches

Lowered Height 8.25 inches

Raised Height 54.25 inches

Raise Time (Unloaded) 47 seconds

Construction Welded steel frame

Finish Durable blue powder-coated finish

Weight 235 lbs
