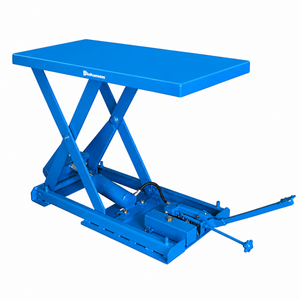

Bishamon X-25P Air-Hydraulic Scissor Lift Table

Pneumatic Power for Flexible Lifting

The Bishamon X-25P lift table is an air-over-hydraulic scissor lift designed to enhance safety and efficiency in ergonomic lifting applications. With a 550 lb. capacity, this unit is perfect for environments that prefer or require pneumatic power over electric or manual systems—such as wet or hazardous areas.

Built to Bishamon’s exacting standards, the X-25P offers 22 inches of vertical travel and a rugged platform measuring 19.5 x 32 inches, making it suitable for a wide range of industrial, assembly, and repair tasks. It operates using standard shop air, making it easy to integrate without electrical wiring.

Key Features

• Air-Hydraulic Operation: Ideal for areas where electrical equipment is restricted
• Medium Load Capacity: Handles up to 550 lbs efficiently
• Smooth Lift Action: The scissor mechanism delivers stable, controlled lifting
• Compact Table Size: Fits well in tight workspaces
• Durable Steel Construction: Designed for industrial use
• Corrosion-Resistant Finish: Baked powder-coat finish withstands heavy use

Typical Applications

• Manufacturing & assembly stations
• Chemical or wash-down environments
• Repair shops and inspection workstations
• Hazardous locations (where electric use is limited)

Technical Specifications – X-25P

FeatureSpecification

Model X-25P

Lift Mechanism Air / Hydraulic

Capacity 550 lbs

Travel (Lift Height) 22.0 inches

Table Size (W x L) 19.5 x 32.0 inches

Lowered Height 6.0 inches

Raised Height 28.0 inches

Raise Time (Unloaded) 36 seconds

Construction Welded steel frame

Finish Powder-coated (Bishamon Blue)

Power Source Standard shop air (no electricity)

Ship Weight 190 lbs
