Bishamon 660 lb Cap. Lift Table 9.25 In Low/45.75 In Trav Air/Hydraulic Ext. P/U

Write a Review
$3,367.00
SKU: X-30SP
Availability: Subject to Availability
Weight: 288.00 LBS
Width: 25.00 (in)
Height: 25.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 0 - 999 lbs
Style: Scissor Lift Table
Travel: 45.0 in
Table Size: 20.0 x 40.0 in
Table Height Min: 9.25 in
Table Height Max: 54.25 in
Power Type: Air/Hydraulic, Double Scissor
Shipping Weight: 345 lbs
Adding to cart… The item has been added
Bishamon 660 lb Cap. Lift Table 9.25 In Low/45.75 In Trav Air/Hydraulic Ext. P/U

Bishamon 660 lb Cap. Lift Table 9.25 In Low/45.75 In Trav Air/Hydraulic Ext. P/U

$3,367.00

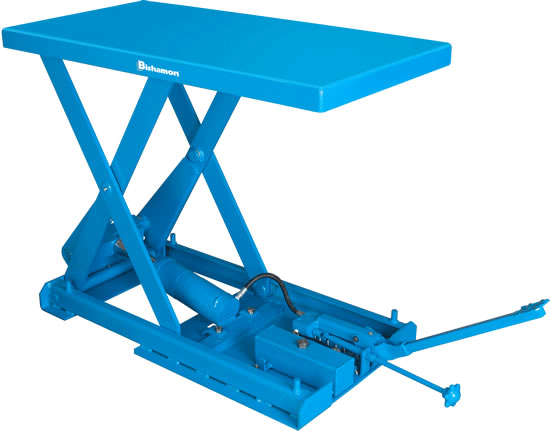

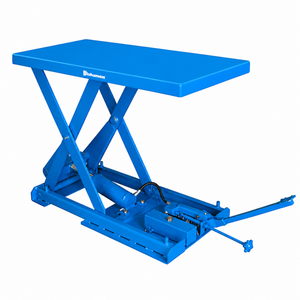

Bishamon X-30SP Double Scissor Lift Table – Air/Hydraulic

High Reach. Compressed Air Powered. Maximum Versatility.

The Bishamon X-30SP is a 660 lb. capacity double scissor lift table powered by a reliable air-over-hydraulic system, designed to provide greater vertical lift (up to 45 inches of travel) while maintaining a compact platform. Ideal for applications requiring elevated height and ergonomic positioning, the X-30SP improves productivity and reduces physical strain in material handling environments.

With its compressed air operation, the X-30SP eliminates the need for electricity, making it suitable for hazardous locations or facilities with air supply infrastructure. The double scissor design delivers increased lift range with a smaller footprint, while its rugged steel construction and smooth lift controls ensure consistent, safe performance.

Key Features

  • Air/Hydraulic Operation: Efficient lifting using compressed air—no electricity required
  • Double Scissor Lift: Delivers extended vertical travel (45 in.) with stable positioning
  • 660 lb. Capacity: Handles parts, equipment, tools, and assembly materials
  • Compact Platform Size: 24 x 40 inches, ideal for space-conscious work areas
  • Durable Steel Frame: Built to withstand daily industrial use
  • Low Maintenance: Fewer moving parts and clean operation

Applications

  • Manufacturing lines
  • Clean rooms or air-powered environments
  • Ergonomic workstations
  • Quality control or packaging stations

Technical Specifications – X-30SP

FeatureSpecification

Model X-30SP (Air/Hydraulic)

Lift Type Double Scissor Lift

Operation Air-over-Hydraulic

Capacity 660 lbs (300 kg)

Travel 45.0 inches

Platform Size 24.0 x 40.0 inches

Lowered Height 9.25 inches

Raised Height 54.25 inches

Raise Time (Unloaded) 45 seconds

Construction Heavy-duty welded steel

Finish Durable blue powder-coated finish

Weight 345 lbs

Power Requirement Compressed Air (no electricity needed)

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
