Bishamon Lift Table - 440 lb Cap. 19.5 X 25.5 Platform Foot Pump

Write a Review
$1,365.00
SKU: X-20C
Availability: Subject to Availability
Weight: 121.00 LBS
Width: 21.00 (in)
Height: 11.00 (in)
Depth: 37.00 (in)
Shipping: Calculated at Checkout
Capacity: 0 - 999 lbs
Style: Scissor Lift Table
Travel: 16.0 in
Table Size: 19.5 x 25.5 in
Table Height Min: 5.0 in
Table Height Max: 21.0 in
Power Type: Manual Foot Pedal
Shipping Weight: 121 lbs
Adding to cart… The item has been added
Bishamon Lift Table - 440 lb Cap. 19.5 X 25.5 Platform Foot Pump

Bishamon Lift Table - 440 lb Cap. 19.5 X 25.5 Platform Foot Pump

$1,365.00

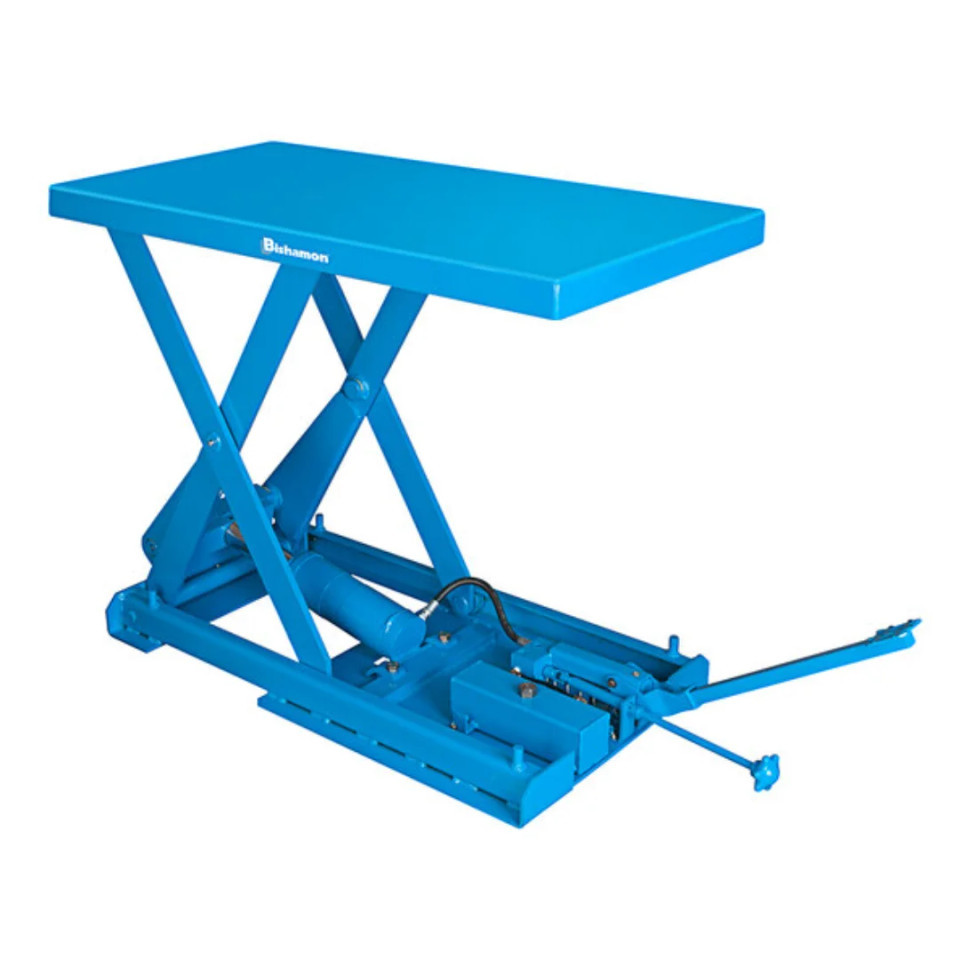

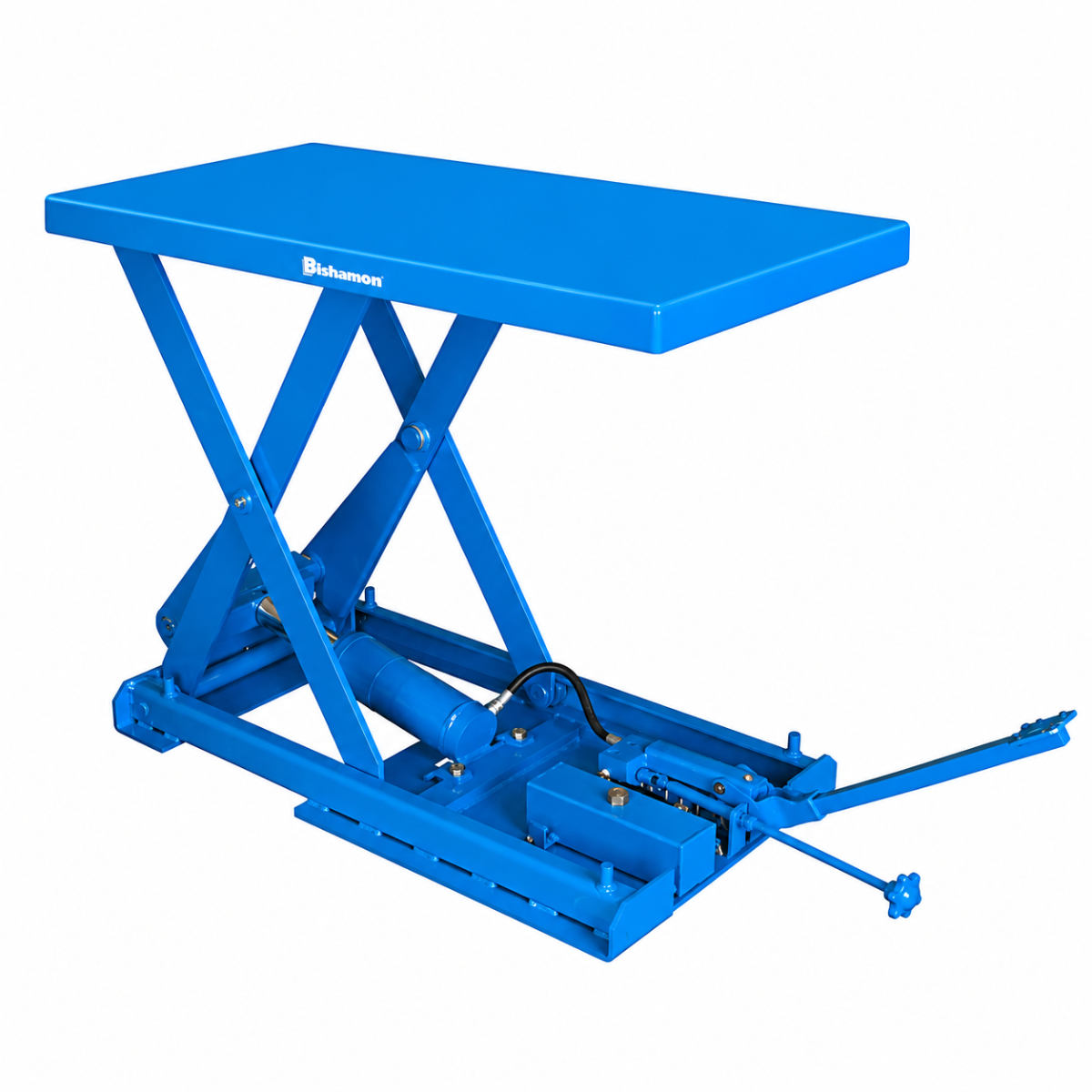

Bishamon X-20C Manual Scissor Lift Table

Efficient Lifting. Compact Performance.

The Bishamon X-20C is part of the dependable X Series of manual scissor lift tables, designed to make lifting, positioning, and transporting materials safer and more ergonomic. Ideal for manufacturing, assembly, and material handling applications, this table is built with high-quality steel and precision components to ensure smooth operation and long-lasting durability.

With a 440 lb capacity, the X-20C is perfect for lighter-duty lifting tasks. The manual foot pump provides easy and controlled elevation of the platform to a maximum raised height of 21 inches. Its compact 19.5" x 25.5" platform fits well in tight work areas, and the 5" lowered height allows for easy loading and unloading.

Key Features

  • Manual Hydraulic Operation: The foot pedal pump offers precise lifting without external power
  • Compact & Portable: Easy to maneuver and fits into smaller workspaces
  • Durable Construction: Powder-coated steel frame resists wear and corrosion
  • Ergonomic Design: Minimizes worker fatigue by reducing bending and lifting
  • Maintenance-Friendly: Simple and robust design with fewer parts to service

Applications

  • Light assembly lines
  • Packing stations
  • Workbench elevation
  • Mobile cart for ergonomic support

Technical Specifications – X-20C

FeatureSpecification

Model X-20C

Lift Mechanism Manual Foot Pedal Pump

Capacity 440 lbs

Travel (Lift Height) 16.0 inches

Table Size (W x L) 19.5 x 25.5 inches

Lowered Height 5.0 inches

Raised Height 21.0 inches

Strokes to Max Height 28

Construction Steel with powder coat finish

Ship Weight 121 lbs

Color Bishamon Blue

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
