Bishamon X-50P Series CompacLift Table, Air-Hydraulic, 1,100 lb, 20.0 x 40.0 in

Write a Review
$3,185.00
SKU: X-50P
Availability: Subject to Availability
Weight: 284.00 LBS
Width: 25.00 (in)
Height: 25.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Travel: 25.5 in
Table Size: 20.0 x 40.0 in
Table Height Min: 6.0 in
Table Height Max: 31.5 in
Power Type: Air/Hydraulic
Shipping Weight: 285 lbs
Adding to cart… The item has been added
Bishamon X-50P Series CompacLift Table, Air-Hydraulic, 1,100 lb, 20.0 x 40.0 in

Bishamon X-50P Series CompacLift Table, Air-Hydraulic, 1,100 lb, 20.0 x 40.0 in

$3,185.00

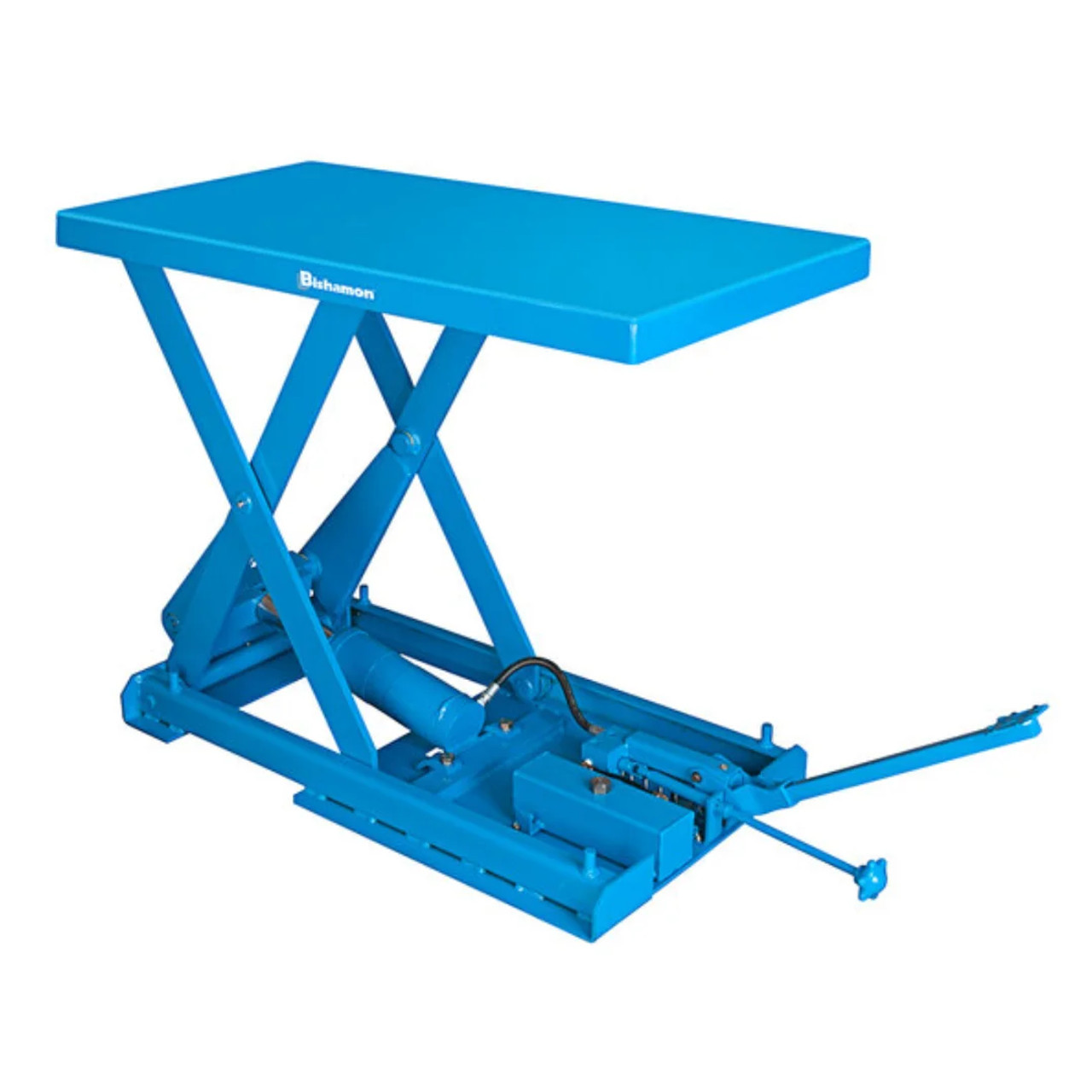

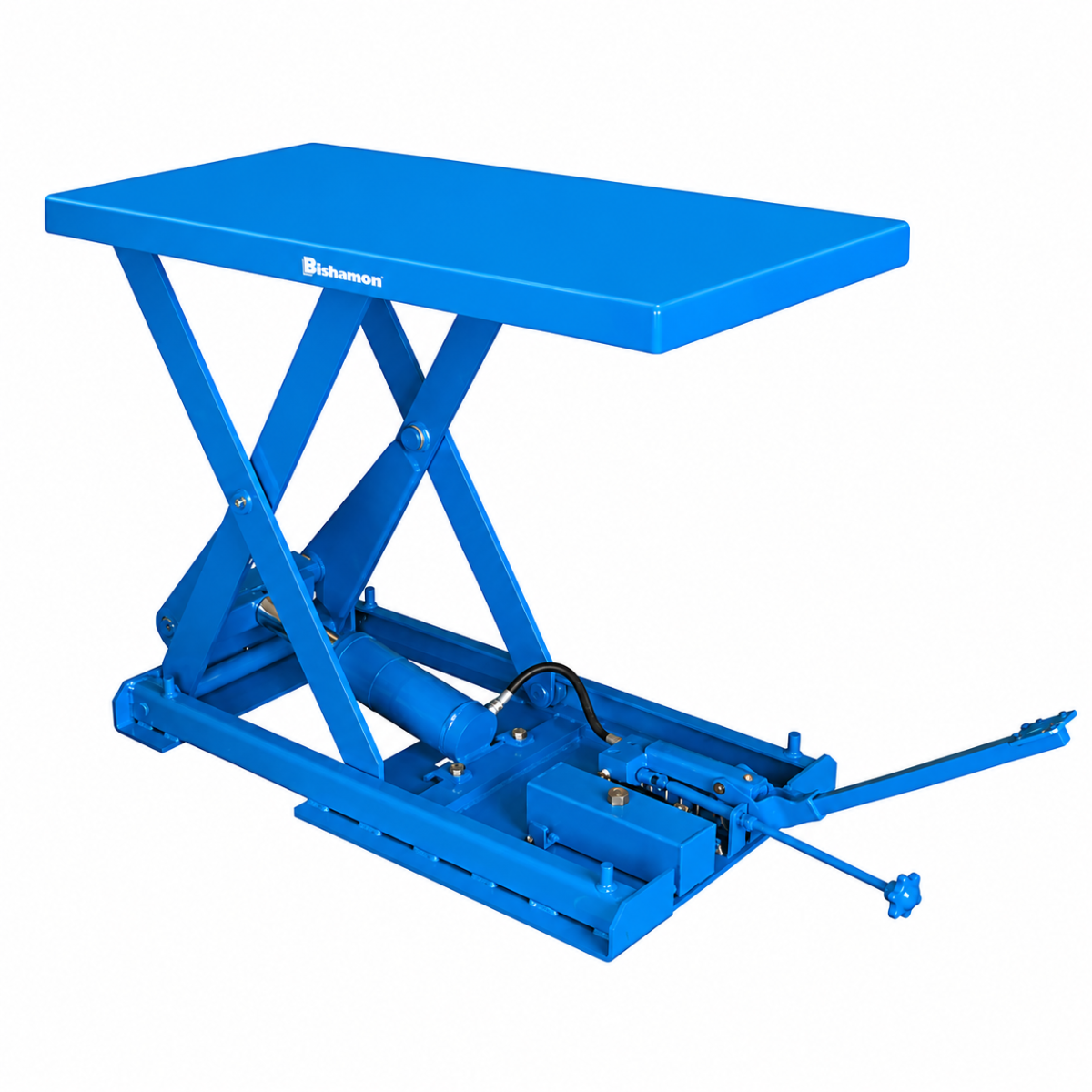

Bishamon X-50P Pneumatic Scissor Lift Table

Air-Powered Ergonomic Lifting for Demanding Workspaces

The Bishamon X-50P offers a clean, powerful lifting solution using pneumatic (air) operation, making it ideal for environments where electricity is not preferred or permitted. With a 1,100 lb. lifting capacity, this air-powered lift table provides 22 inches of vertical travel and precise control for raising and lowering materials in manufacturing, packaging, or assembly applications.

Built with heavy-duty steel construction and a 20 x 40-inch platform, the X-50P is designed to improve ergonomics and worker safety while boosting productivity. It’s especially well-suited for operations that require non-electric equipment, such as clean rooms or explosion-proof areas.

Key Features

  • Pneumatic (Air) Operation: No electricity required – safe for volatile environments
  • Strong Load Capacity: Lifts up to 1,100 lbs
  • Hands-Free Foot Pedal Control: Allows smooth and controlled lifting
  • Durable Steel Frame: Designed for industrial-duty use
  • Compact and Stable Design: Works well in tight spaces or work cells
  • Clean, Low-Maintenance System: Ideal for clean rooms or areas with electrical hazards

Perfect For

  • Food processing facilities
  • Explosive or flammable work zones
  • Clean rooms
  • Light manufacturing and assembly

Technical Specifications – X-50P

FeatureSpecification

Model X-50P

Lift Mechanism Pneumatic (air-powered)

Capacity 1,100 lbs

Travel (Lift Height) 22.0 inches

Table Size (W x L) 20.0 x 40.0 inches

Lowered Height 6.0 inches

Raised Height 28.0 inches

Air Pressure Required 80–100 psi

Air Consumption Approx. 9 SCFM

Control Type Foot pedal

Construction Welded steel frame

Finish Blue powder-coat

Ship Weight Approx. 264 lbs

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
