Bishamon Optimus LK Series Lift Table, 3000 lb. Capacity

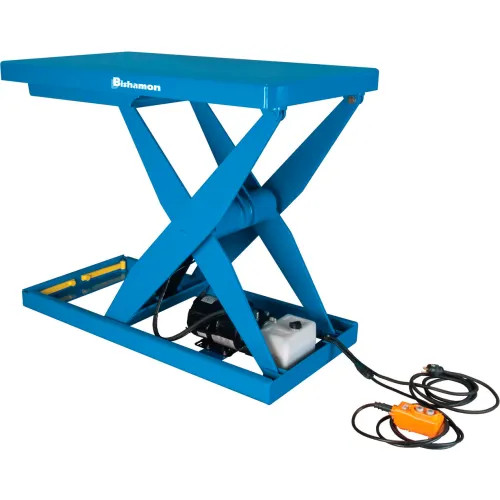

Bishamon L3K-2848 Electric-Hydraulic Scissor Lift Table

3,000 lb Capacity | 28" x 48" Platform | 34" Vertical Travel

The Bishamon L3K-2848 is part of the high-performance Optimus Lift3K™ Series of electric-hydraulic lift tables, engineered to lift up to 3,000 lbs with exceptional reliability and ergonomic efficiency. Designed with a 28" x 48" platform and 34 inches of vertical travel, this table is ideal for lifting, positioning, and handling heavy loads in demanding industrial environments.

Built with robust steel construction and a durable powder-coated finish, the L3K-2848 enhances worker safety by minimizing bending, reaching, and other strain-inducing motions. Powered by a 115 VAC electric motor, it provides quick, consistent lifting with a smooth scissor action.

Key Features

• 3,000 lb Load Capacity – Built to handle heavy-duty lifting tasks
• 28" x 48" Solid Steel Platform – Accommodates large or oversized items
• Lift Height Range – 8.63" lowered to 42.63" fully raised
• Electric Hydraulic Operation – Plug-in 115 VAC motor with easy push-button controls
• Fast Cycle Time – Approx. 25 sec up / 12 sec down
• Meets ANSI MH29.1-2012 – Designed for safety and compliance
• Made in the USA – Durable, industrial-grade craftsmanship

Technical Specifications

SpecificationDetail

Model L3K-2848

Series Optimus Lift3K™

Capacity 3,000 lbs

Platform Size 28” x 48”

Travel 34 inches

Height (Lowered/Raised) 8.63" / 42.63"

Voltage 115 VAC

Approx. Lift Time (Up/Down) 25 sec / 12 sec

Approx. Shipping Weight 660 lbs

Ideal For

• Manufacturing lines
• Assembly and repair workstations
• Packaging and logistics operations
• Pallet handling and material positioning
