Product Overview

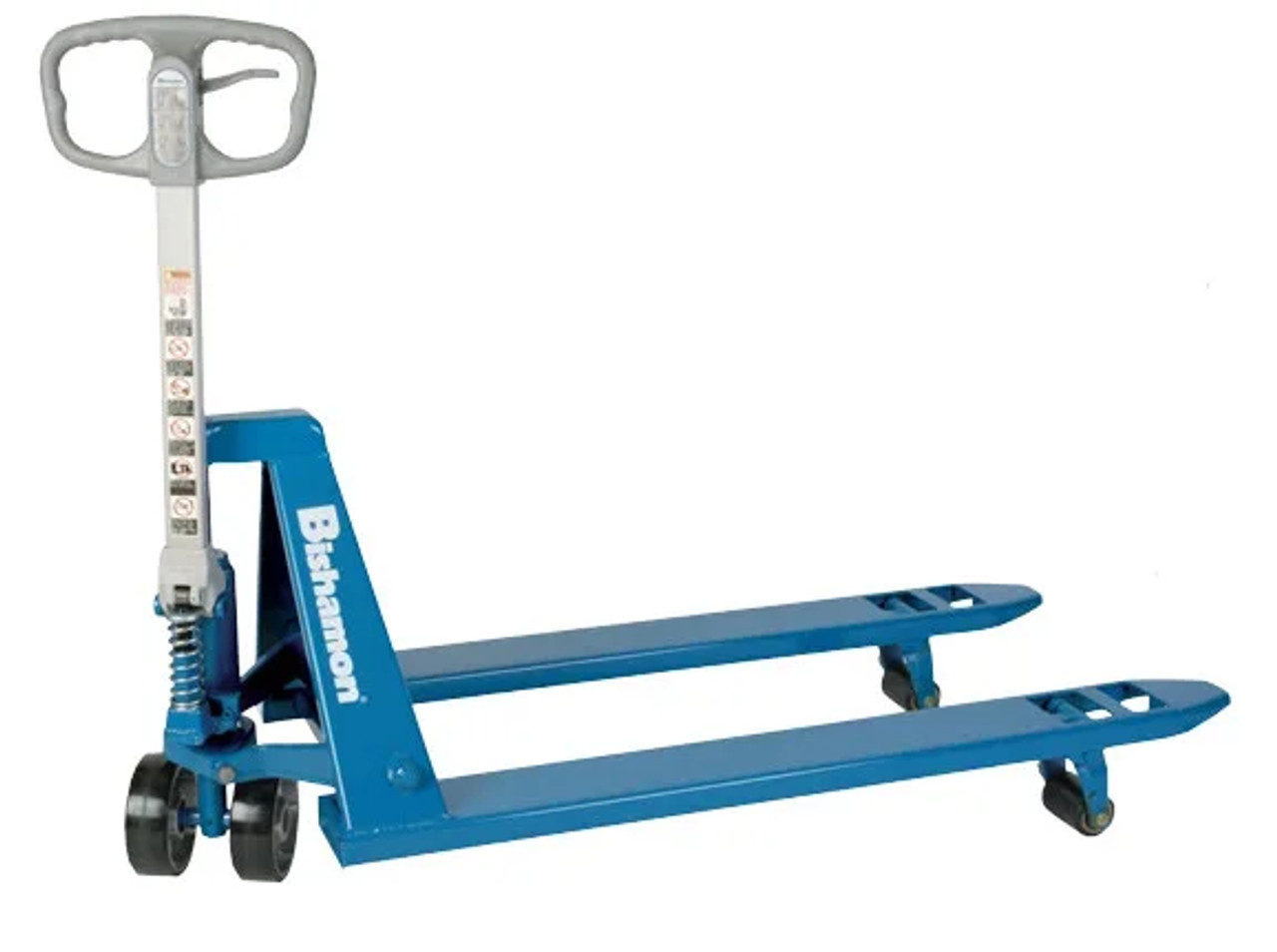

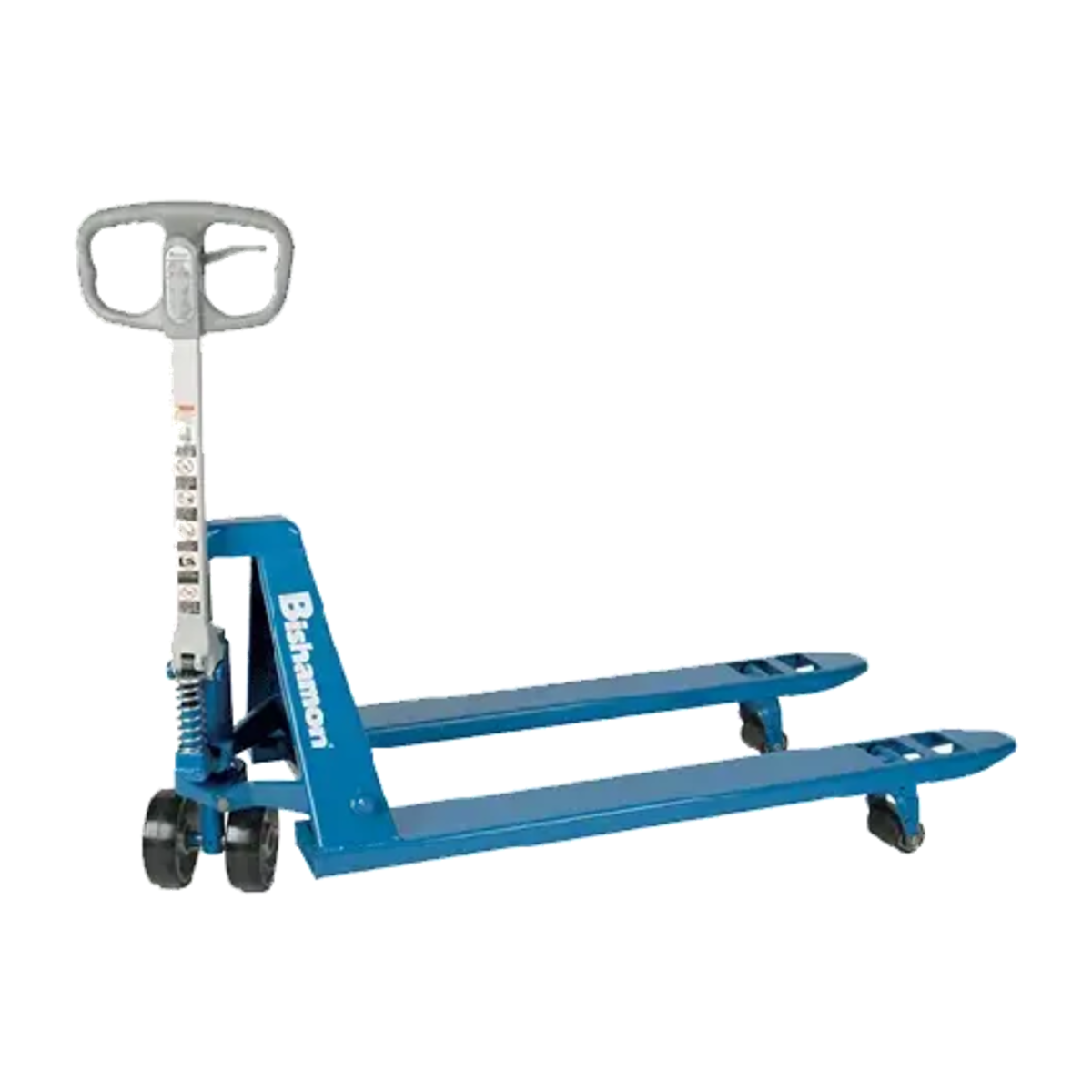

Bishamon BS-25A Blue Label Pallet Truck
Lightweight Handling. Heavy-Duty Quality.
The Bishamon BS-25A is a compact, 2,500 lb capacity pallet truck designed for light- to medium-duty material handling tasks where maneuverability, precision, and build quality are essential. Part of the acclaimed Blue Label Series, the BS-25A offers all the premium features of its higher-capacity counterparts—such as exceptional rollability, ergonomic controls, and a fully rebuildable construction—in a lighter, more agile package.
Ideal for use in retail stockrooms, delivery vehicles, small warehouses, and food service operations, the BS-25A offers long-term durability and smooth, efficient pallet transport in compact spaces.
Standard Features
- Three-position ergonomic hand control lever (Lift / Neutral / Lower) works from any handle position
- 210° swivel handle for tight turning radius in confined areas
- Low-friction thrust bearings in the hydraulic pump and steering head
- Polyurethane steer and load wheels for quiet, smooth rolling on various surfaces
- Sealed ball bearings in all wheels and rollers for long-lasting performance
- Welded steel frame with a one-piece fork design for structural strength
- Forged steel entry slides ease pallet entry and block debris
- Non-adjustable, solid steel push rods for added reliability
- Rebuildable pump and frame assembly extends service life
- Durable baked enamel finish resists corrosion and wear
Key Benefits
- Light-Duty Design: 2,500 lb capacity for efficient everyday tasks
- Agile Handling: Lightweight and compact for superior control
- Smooth Operation: Premium bearings and wheels reduce user effort
- Rebuildable System: Long-term cost savings with easy maintenance
- Versatile Application: Great for small pallets, quick turns, and indoor use
Technical Specifications – BS-25A
SpecificationDetails
Model BS-25A
Capacity 2,500 lbs (1,135 kg)
Fork Width (Overall) 27 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated blue enamel
Weight Approx. 170 lbs
Construction Welded steel frame, rebuildable
Recommended Use Light-duty pallet handling, retail stockrooms, mobile carts, delivery trucks, office supply storage
