Atlas Titon Beam Clamp – TBC-100 10 Ton Capacity

Product Overview

Atlas Titon Beam Clamp – TBC-100

10 Ton Capacity | Adjustable Flange Width | Heavy-Duty Steel Construction

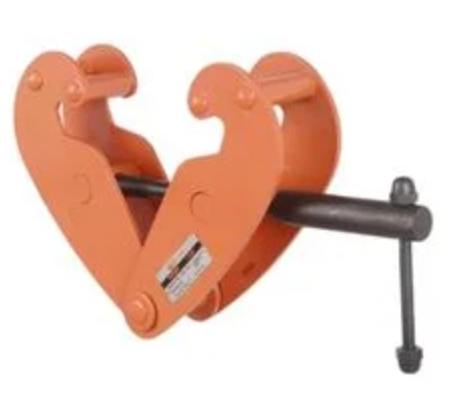

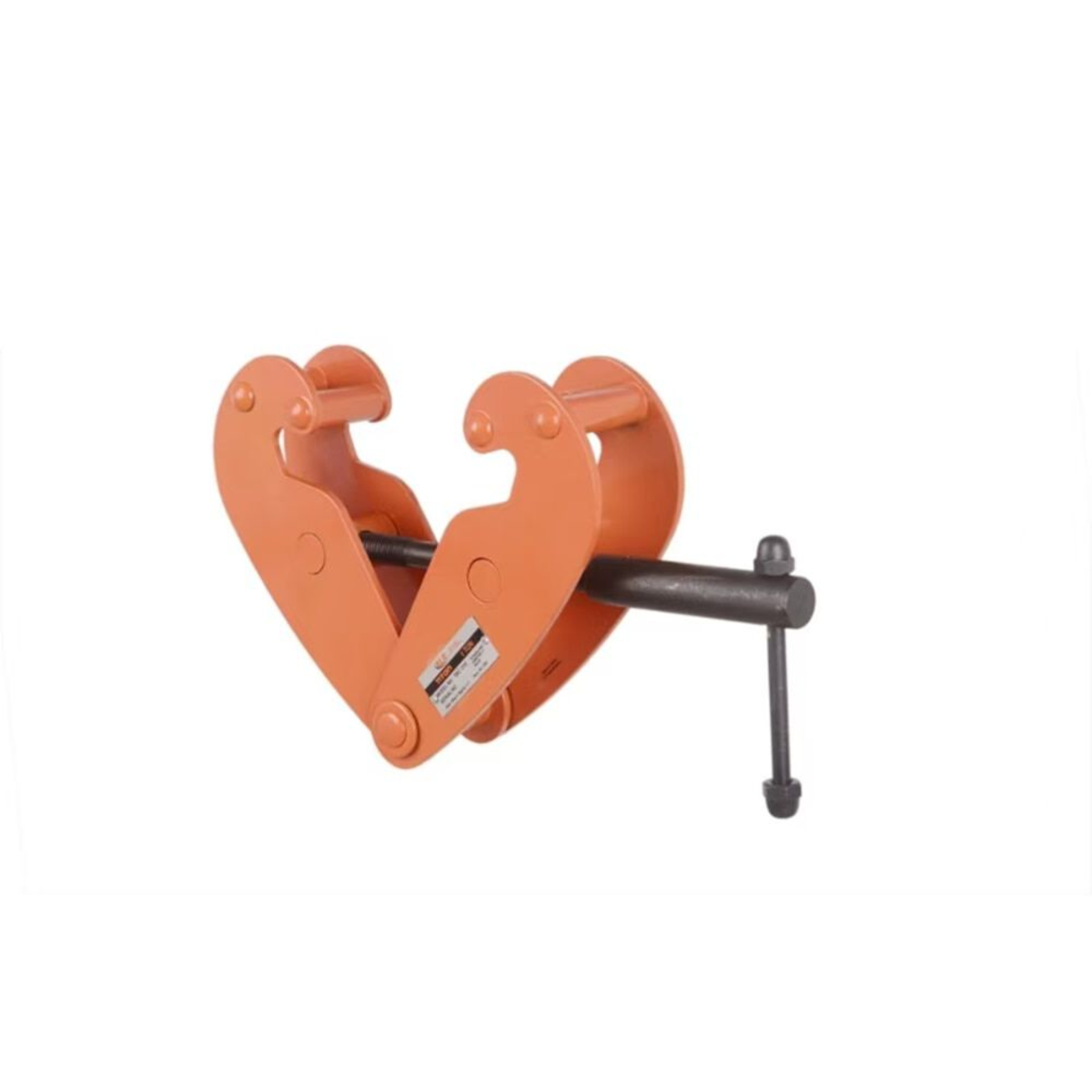

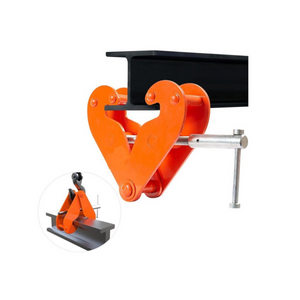

The Atlas TBC-100 Titon Beam Clamp is a high-capacity, heavy-duty lifting attachment designed to provide a secure and temporary anchor point on structural steel beams. With a 10-ton (20,000 lbs) load rating, it is built for demanding industrial environments such as rigging yards, steel fabrication, and overhead hoisting operations. Its adjustable jaw fits a different range of beam flange widths, while the robust steel body ensures long-term durability and safety under load.

Features

• 10-Ton Capacity: Engineered to handle heavy lifting applications up to 20,000 lbs.
• Adjustable Flange Width: Accommodates various I-beam sizes for versatile installation.
• Heavy-Duty Steel Frame: Built for strength, longevity, and impact resistance in rugged environments.
• Quick and Secure Installation: Easily clamps to structural beams with threaded adjustment and locking bar.
• Load Bar with Suspension Eye: The central lifting point ensures balanced load distribution.
• Safety Retention Pins: Help prevent accidental release or slippage during use.
• Corrosion-Resistant Finish: Industrial-grade coating for extended service life.

Specifications

• Model: TBC-100
• Rated Capacity: 10 Ton (20,000 lbs)
• Beam Flange Width Range: Approx. 3" to 12" (adjustable)
• Jaw Opening Adjustment: Threaded spindle with lock nut
• Suspension: Built-in forged lifting eye
• Material: High-strength, welded steel construction
• Finish: Durable powder-coated or painted finish
• Installation: Manual; requires no welding or drilling
• Approximate Weight: 85–95 lbs
• Standards: Meets or exceeds ASME B30.20 and BTH-1 standards
• Country of Origin: China

The TBC-100 is ideal for use with manual or powered hoists, lifting beams, and rigging assemblies. Its secure grip, adjustability, and high load capacity make it a reliable solution for safe and efficient overhead lifting.
