Product Overview

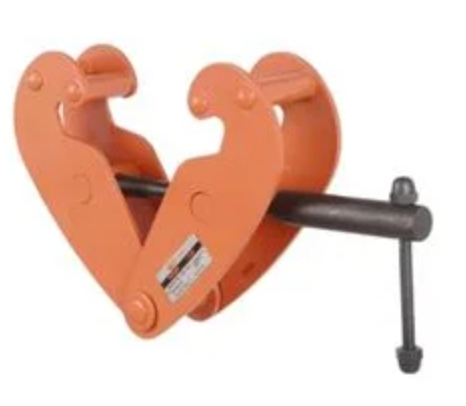

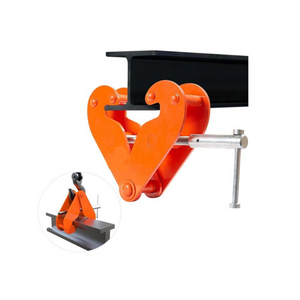

ALR Titan Beam Clamp – TBC-010
The Atlas Lifting & Rigging Titan Beam Clamp TBC-010 is a heavy-duty, industrial-grade solution designed for secure and reliable lifting and suspension applications. Engineered with precision and built from high-strength steel, this clamp provides a quick and versatile way to attach lifting equipment to structural beams without the need for welding or drilling. Its robust construction and easy-to-adjust jaw width make it ideal for both temporary and permanent lifting setups in construction, manufacturing, and maintenance environments.
The TBC-010 model is rated for a 1-ton (1,000 kg) capacity, making it suitable for a wide range of medium-duty lifting tasks. Using a simple screw mechanism and wide flange range, it ensures fast installation while maintaining superior grip and safety. This clamp also features a pivoting shackle for flexible rigging and smooth load distribution.
Specifications:
- Model: TBC-010
- Capacity: 1 Ton (1,000 kg)
- Beam Width Range: 75 mm – 230 mm
- Jaw Opening: Adjustable with a secure locking mechanism
- Shackle Type: Pivoting / Swivel shackle for improved alignment
- Material: High-grade forged steel
- Finish: Powder-coated for corrosion resistance
- Weight: Approx. 3.5 kg
- Standards Compliance: Meets or exceeds ASME B30.20 / EN 13155
- Applications: Rigging, hoisting, lifting equipment anchorage, temporary lifting point installation
