Product Overview

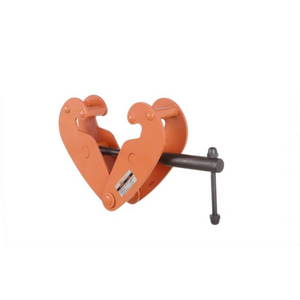

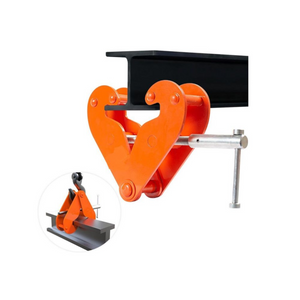

Atlas Titan Beam Clamp – TBC-020
The Atlas Titan TBC-020 Beam Clamp is a high-performance, heavy-duty clamp designed for demanding lifting and rigging applications. Built for industries to provide strength, safety, and reliability. This beam clamp provides a stable anchor point for hoists, pulleys, or lifting tackle—making it a trusted solution in industrial, construction, and maintenance environments.
Rated for a 2-ton (2,000 kg) load capacity, the TBC-020 offers enhanced strength while maintaining the same ease of use and adjustability as the rest of the Atlas Titan range. Its adjustable jaw design allows it to securely fit a wide array of beam widths, while the pivoting shackle ensures optimal alignment under load. The steel frame is powder-coated to withstand harsh industrial conditions and resist corrosion over time.
Whether used for temporary lifting tasks or permanent installations, the TBC-020 is engineered for dependable performance and user safety.
Specifications:
- Model: TBC-020
- Capacity: 2 Ton (2,000 kg)
- Beam Width Range: 75 mm – 230 mm
- Jaw Opening: Adjustable with threaded locking mechanism
- Shackle Type: Pivoting / Swivel shackle for load alignment
- Material: High-strength forged steel
- Finish: Durable powder-coated finish for corrosion resistance
- Weight: Approx. 5.5 kg
- Standards Compliance: Conforms to ASME B30.20 / EN 13155 safety standards
- Applications: Lifting anchor point, hoist mounting, rigging operations, structural support
