Product Overview

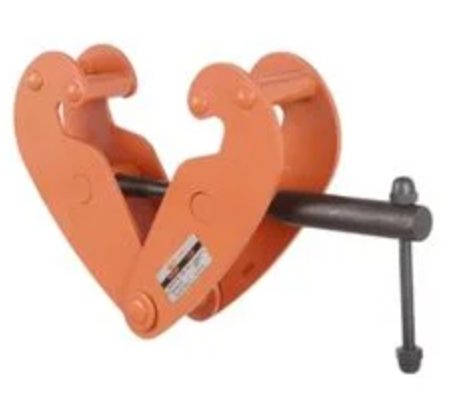

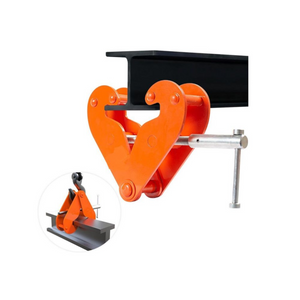

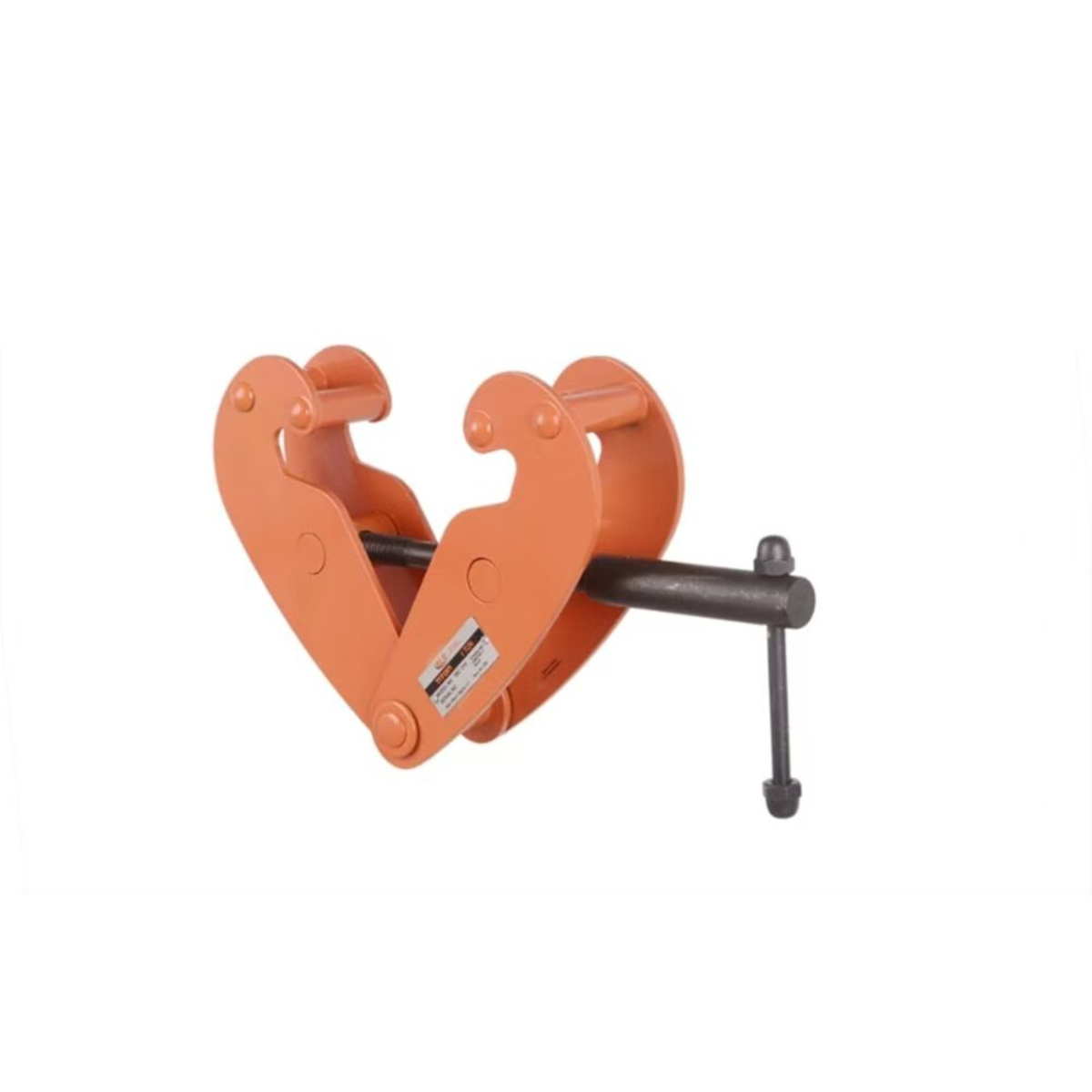

Atlas Titan Beam Clamp – TBC-030
The Atlas Titan TBC-030 Beam Clamp is built for secure and straightforward attachment of lifting equipment to steel beams. With a working load limit of 3 tons. It’s perfect for a wide array of industrial applications, including construction, fabrication, and general maintenance.
The clamp features a simple, adjustable jaw that fits beam flanges ranging from 75 mm to 230 mm in width. It comes equipped with a swivel shackle for easy rigging and proper load alignment. Made from high-strength steel and finished with a durable powder coating, the TBC-030 is designed to handle tough jobs while withstanding wear and corrosion.
Quick to install and easy to reposition, this clamp is a practical solution when a reliable lifting point is needed without permanent installation.
Specifications:
- Model: TBC-030
- Capacity: 3,000 lbs. (3 tonnes)
- Beam Width Range: 75 mm to 230 mm
- Jaw Adjustment: Manual screw with locking mechanism
- Shackle: Swivel type for better alignment under load
- Construction: Forged steel body
- Finish: Powder-coated for corrosion resistance
- Unit Weight: Approx. 7.2 kg
- Standards: Complies with ASME B30.20 and EN 13155
- Typical Uses: Hoist suspension, lifting beams, rigging anchor point, equipment installation
