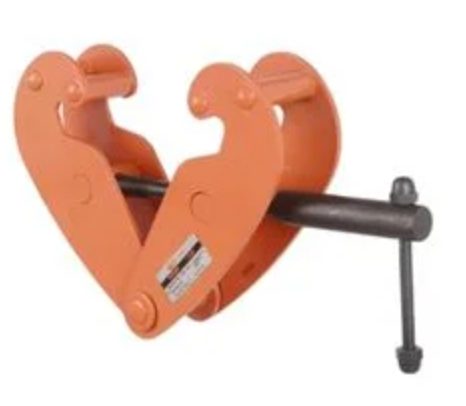

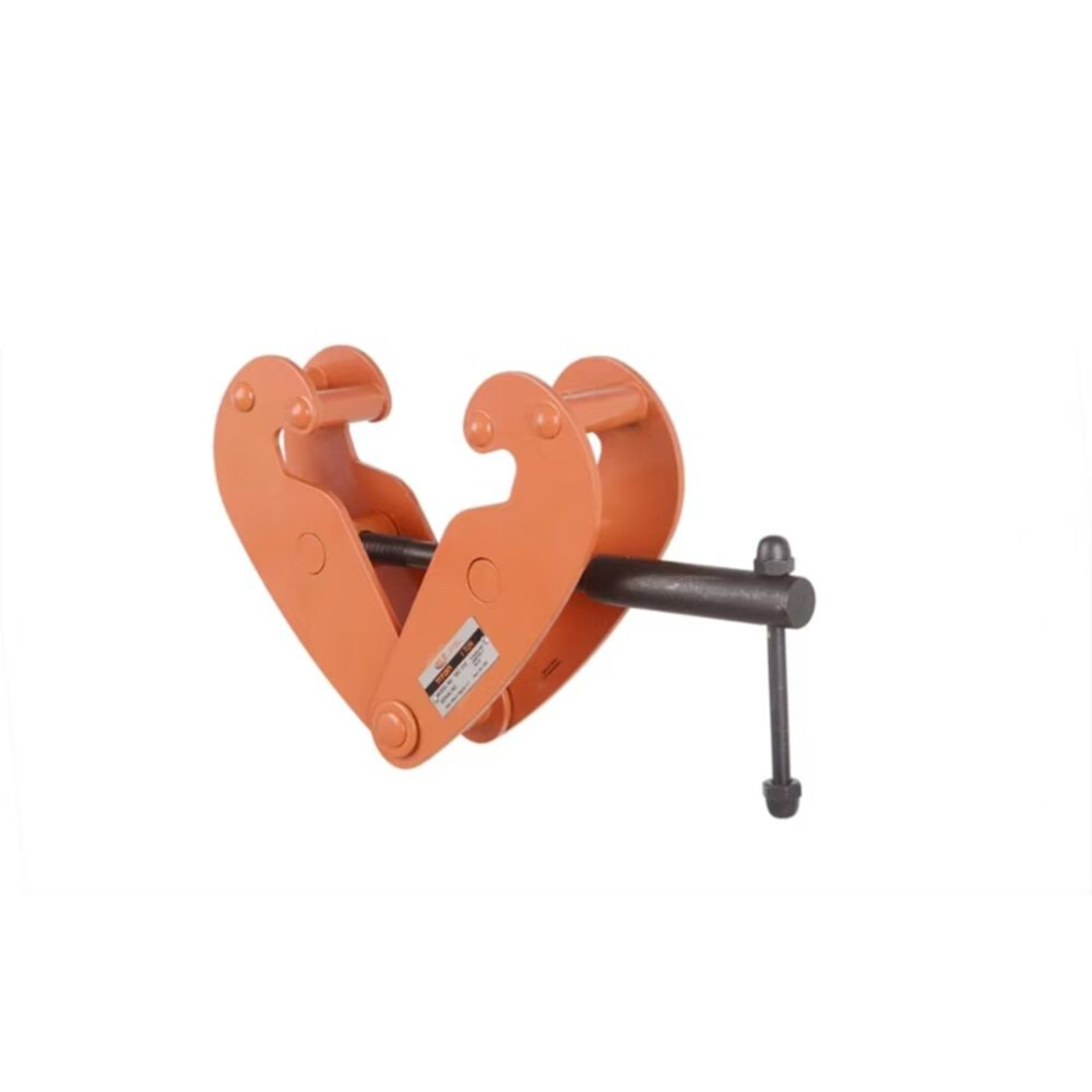

Atlas Titan Beam Clamp – TBC-050

The Atlas Titan TBC-050 Beam Clamp is designed for heavy-duty lifting applications where a secure and dependable anchor point is essential. With a 5-ton working load limit, it offers a strong and safe connection to structural steel beams for hoists, lifting tackle, or rigging gear.

The clamp features an adjustable jaw to fit a wide range of flange widths—from 75 mm to 230 mm—and includes a swivel shackle to allow proper load alignment. Built from forged steel and finished with a corrosion-resistant powder coat, the TBC-050 is well-suited for harsh environments such as construction sites, workshops, and industrial facilities.

Thanks to a threaded locking bar installation is easy, making this clamp a practical option for both temporary and permanent setups.

Specifications:

• Model: TBC-050
• Capacity: 5,000 kg (5 tonnes)
• Beam Width Range: 75 mm to 230 mm
• Jaw Adjustment: Manual screw with locking bar
• Shackle: Swivel type for flexible load positioning
• Material: High-strength forged steel
• Finish: Powder-coated for durability and corrosion resistance
• Unit Weight: Approx. 11.2 kg
• Compliance: ASME B30.20 / EN 13155
• Typical Applications: Heavy-duty hoisting, rigging anchor point, overhead lifting, equipment support
