Product Overview

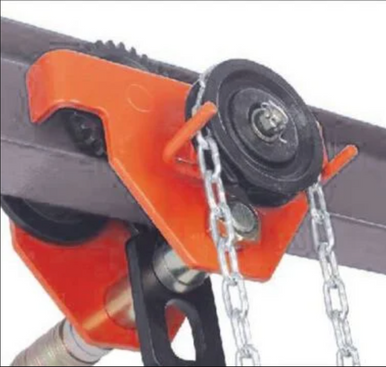

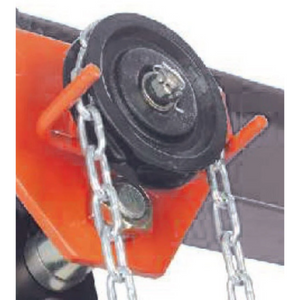

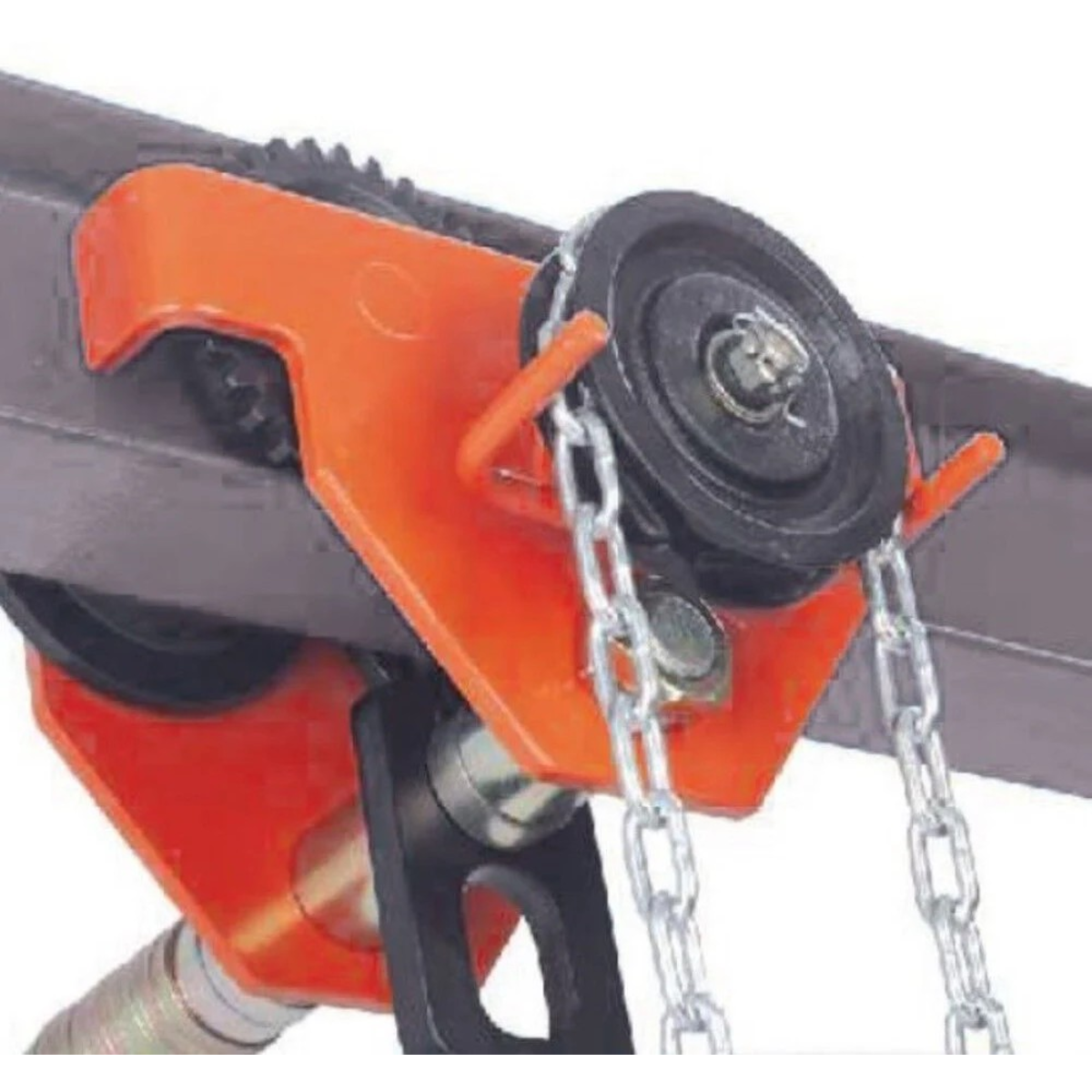

Atlas Lifting & Rigging APT-050-12
5 Ton Push Beam Trolley – 12" Flange Width Capacity
The Atlas APT-050-12 is a 5-ton industrial push trolley engineered for smooth, manual horizontal movement along wide-flange I-beams. With a maximum flange width capacity of 12 inches, this model is ideal for material handling systems that require flexibility in beam sizing. Designed for rugged performance and dependable load support, the APT-050-12 is built to pair with most hoists and can be installed quickly on-site.
Featuring a heavy-duty steel frame, precision-machined wheels, and sealed bearings, this trolley delivers consistent performance with minimal maintenance. Perfect for workshops, warehouses, and rigging environments where powered travel isn't necessary.
Key Features:
- 5 Ton Load Capacity: Rated for up to 10,000 lbs
- Push-Type Travel: Smooth manual movement for straight-line load transit
- 12" Flange Width Compatibility: Adjustable to fit beams up to 12 inches wide
- Industrial-Grade Construction: All-steel frame for strength and durability
- Machined Wheels: Designed for both flat and tapered I-beam flanges
- Sealed Bearings: Maintenance-free and smooth rolling operation
- Universal Suspension Point: Easily integrates with chain or lever hoists
Technical Specifications:
SpecificationDetails
Model Number APT-050-12
Rated Capacity 5 Ton (10,000 lbs)
Beam Flange Width Range 4.0" to 12.0" (adjustable)
Trolley Type Manual Push Type
Wheel Type Machined Steel
Bearing Type Sealed Ball Bearings
Construction Heavy-Duty Steel Frame
Net Weight Approx. 60–70 lbs
Compliance ASME B30.11, CE Certified
