Product Overview

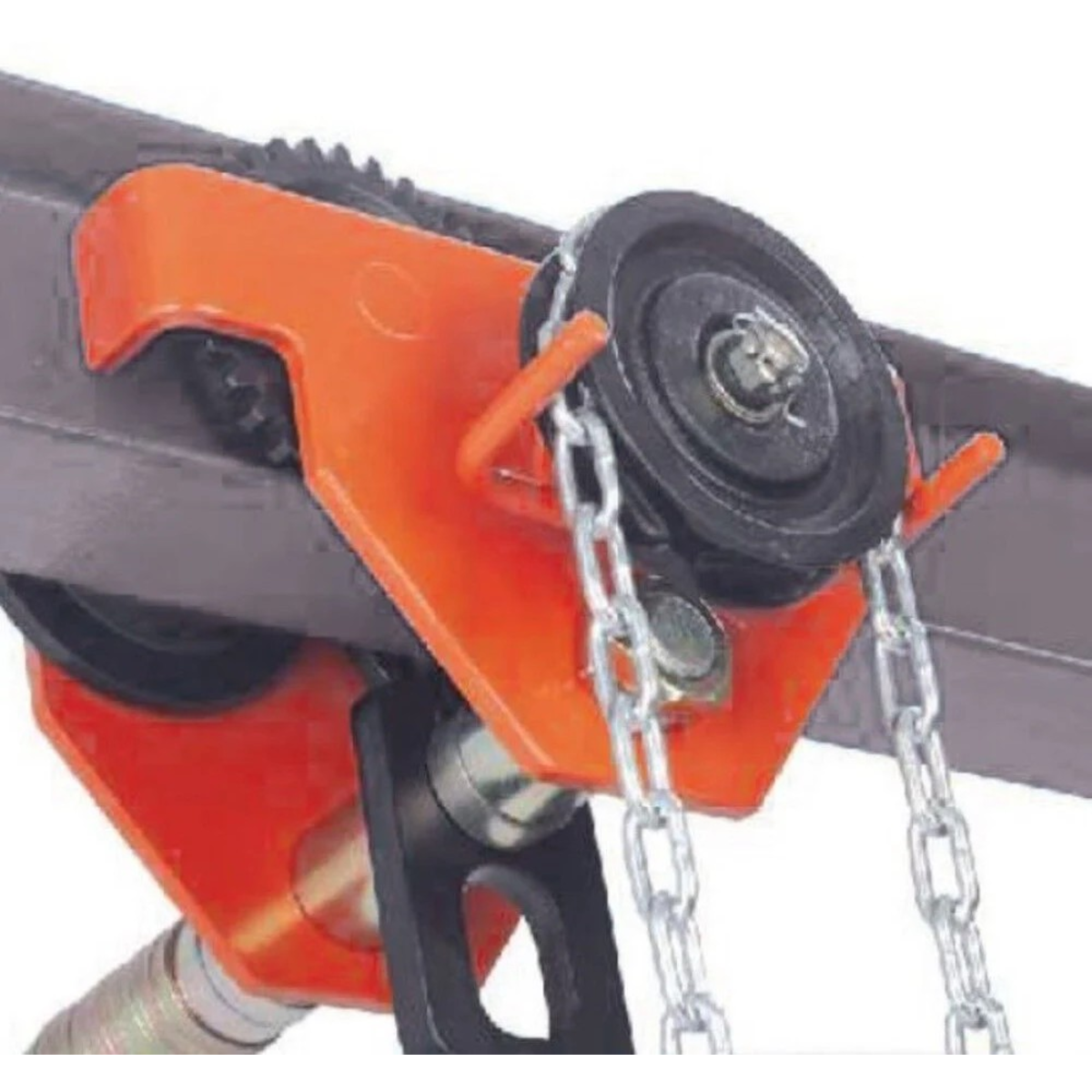

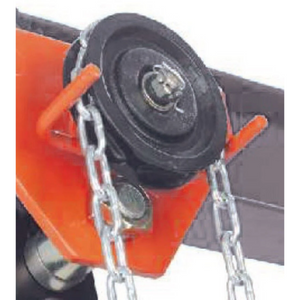

Atlas Lifting and Rigging APT-050 Push Beam Trolley – 5 Ton Capacity
The APT-050 Push Trolley from Atlas Lifting and Rigging is designed for high-capacity lifting applications that require strength, safety, and smooth operation. With a 5-ton (10,000 lbs) capacity, this heavy-duty trolley provides dependable support for hoists and suspended loads across a variety of beam types.
Made for manufacturing, construction, and maintenance environments. This trolley features adjustable flange spacing, sealed ball bearings, and reinforced steel side plates that offers lasting durability and precision movement with minimal operator effort.
Key Features:
- 5-Ton Load Capacity: Designed for demanding overhead lifting operations.
- Smooth Manual Travel: Push-style movement offers controlled positioning along the beam.
- Broad Beam Compatibility: Adjustable side plates fit a range of I-beam and H-beam widths.
- Sealed Ball Bearings: Ensure effortless, maintenance-free wheel movement.
- Heavy-Duty Steel Construction: Built to withstand industrial conditions and heavy use.
- Anti-Drop Plates: Provide enhanced safety by securing the trolley on the beam.
- Low-Headroom Profile: Optimizes available lifting height in restricted spaces.

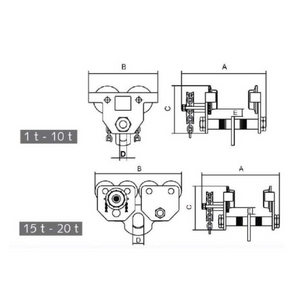

Specifications:
- Model: APT-050
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Beam Width Range: Approx. 3.5" to 8.6" (adjustable)
- Wheel Type: Steel with sealed ball bearings
- Frame Material: Heavy-gauge powder-coated steel
- Suspension Type: Central eye for hook-mounted hoists
- Net Weight: Approx. 80 lbs (36.3 kg)
The Atlas APT-050 push beam trolley provides safe and controlled load movement in high-capacity applications. With precision components and a rugged design, it's ready to perform in your most demanding lifting environments.
