Product Overview
Atlas Lifting & Rigging AGT-050
5-Ton Geared Beam Trolley – Adjustable Flange Width

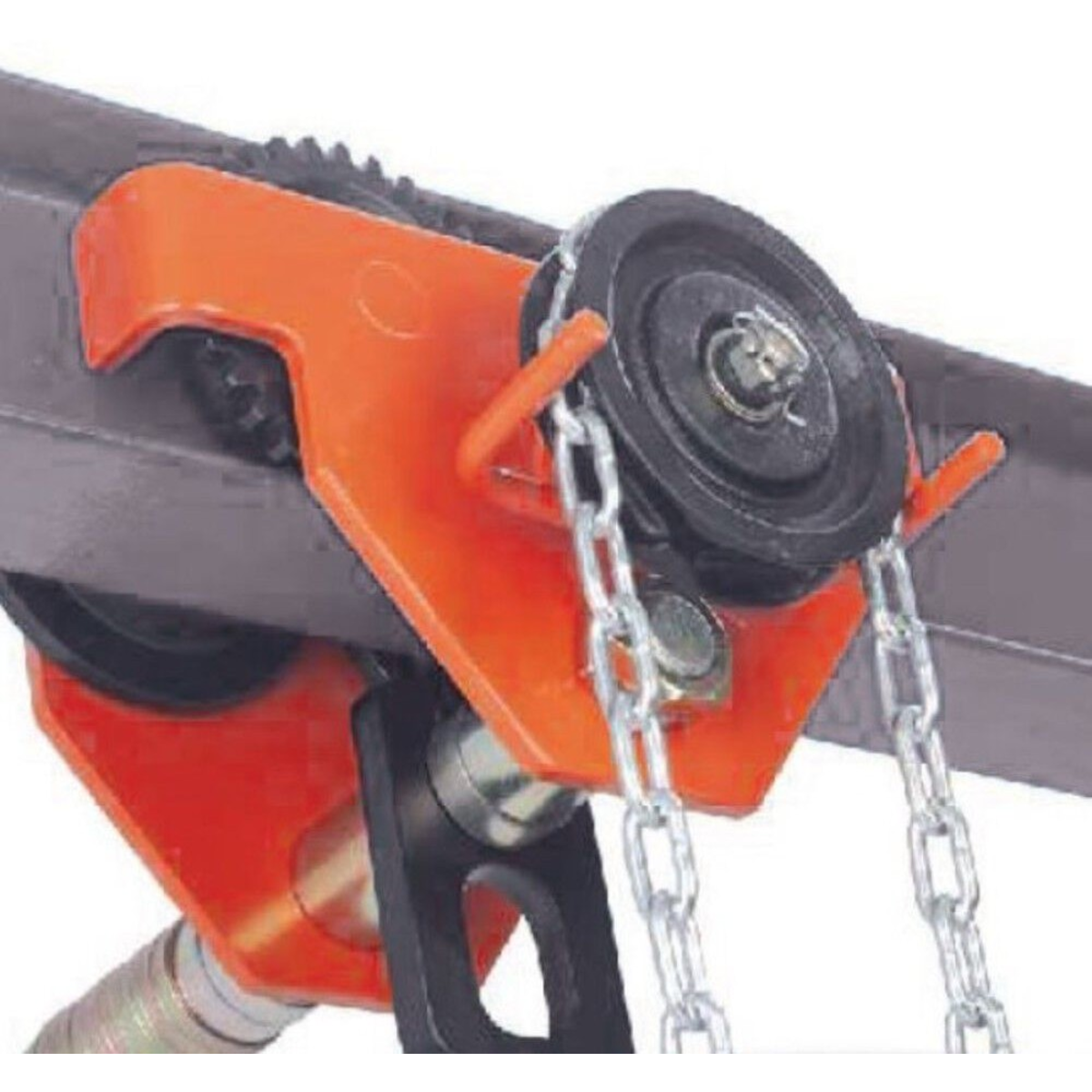

The Atlas AGT-050 is a high-capacity 5-ton geared beam trolley designed for moving heavy loads with precision and control across standard I-beams. Ideal for manufacturing facilities, steel fabrication, rigging operations, and heavy-duty maintenance, this geared trolley provides smooth horizontal travel via a hand chain drive and is compatible with most manual and powered hoists.
Made with industrial-grade components, including a reinforced steel frame, precision-machined wheels, and sealed bearings. This hoist delivers durable, maintenance-free performance even in rigorous environments. Its adjustable flange design fits a wide range of beam widths, offering installation flexibility across multiple applications.
Key Features:
- 5 Ton Capacity: Supports up to 10,000 lbs for high-load operations

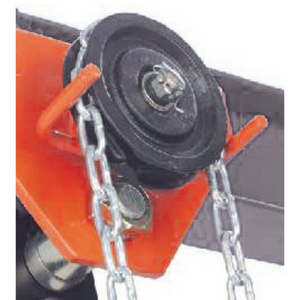

- Geared Drive System: Allows precise load positioning with minimal operator effort
- Adjustable Beam Fit: Flange width range from 3.5" to 8.6" accommodates standard I-beams
- Heavy-Duty Construction: Steel side plates and load bar for long-term structural integrity
- Machined Steel Wheels: Compatible with both flat and tapered flanges
- Sealed Bearings: Maintenance-free design ensures quiet and smooth operation
- Integrated Suspension Point: Easily connects with a wide range of hoists
Technical Specifications:
SpecificationDetails
Model Number AGT-050
Rated Capacity 5 Ton (10,000 lbs)
Beam Flange Width Range 3.5" to 8.6" (adjustable)
Wheel Tread Diameter Approx. 4.7 in (120 mm)
Hand Chain Drop Standard 10 ft (custom lengths available)
Trolley Type Geared – Hand Chain Operated
Bearing Type Sealed Ball Bearings
Construction All-Steel Frame, Side Plates, Load Bar
Net Weight Approx. 68–72 lbs
Compliance ASME B30.11, CE Certified
