Product Overview

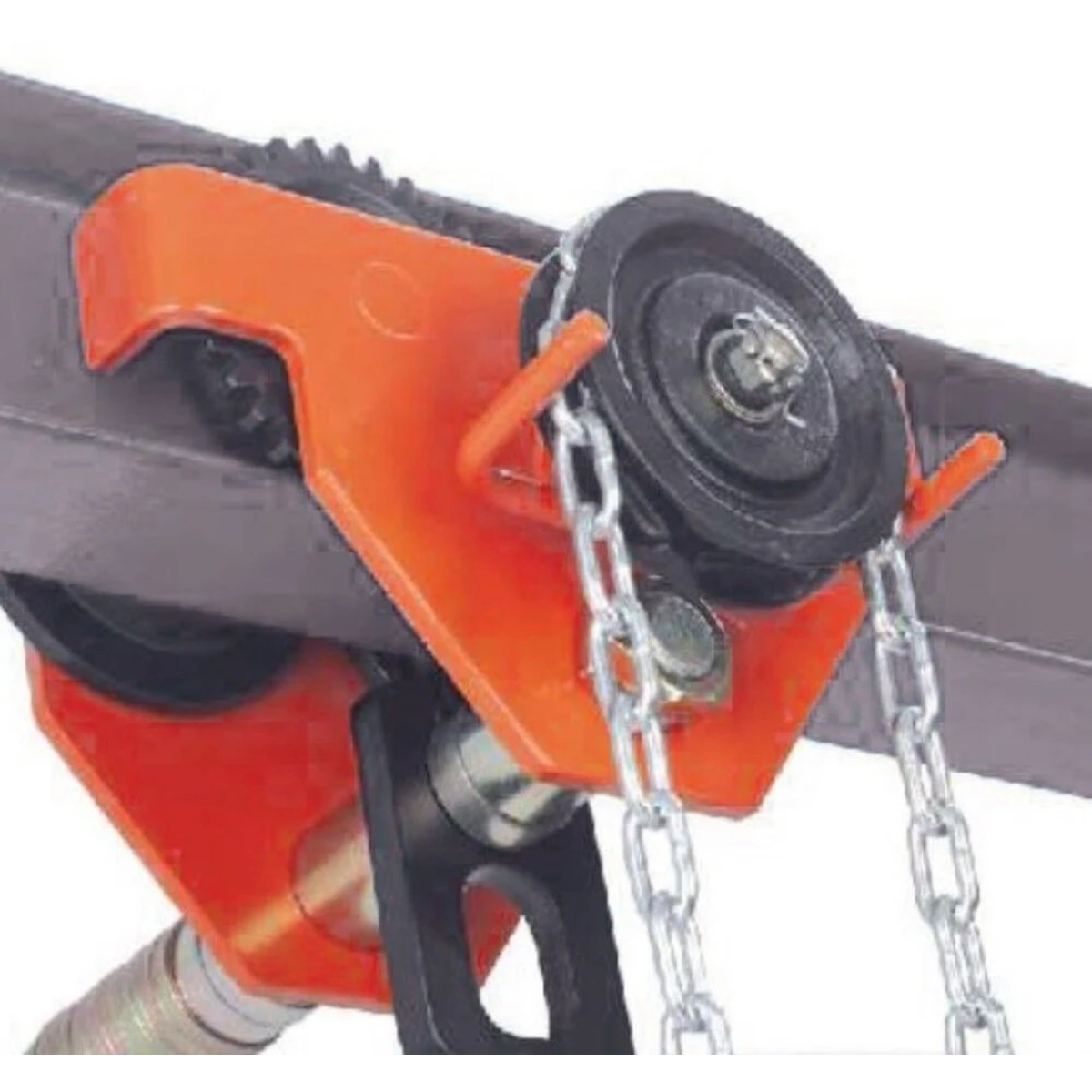

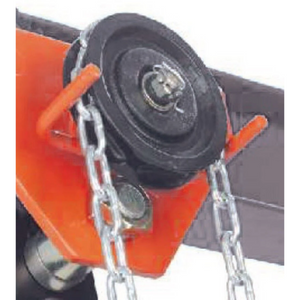

Atlas Lifting & Rigging APT-100-12
10 Ton Push Beam Trolley – 12" Flange Width Capacity
The Atlas APT-100-12 is a 10-ton industrial push trolley engineered to move heavy suspended loads along a wide range of I-beam sizes with minimal resistance. Designed for applications requiring reliable manual operation, this model accommodates beam flanges up to 12 inches wide and supports up to 20,000 lbs of load capacity.
Ideal for use in industrial plants, steel yards, and rigging setups, the APT-100-12 features rugged steel side plates, machined steel wheels, and sealed bearings that ensure smooth, maintenance-free operation under heavy use. This unit is designed to work seamlessly with manual or powered hoists in overhead lifting systems.
Key Features:
- 10-Ton Capacity: Supports loads up to 20,000 lbs
- Push-Type Operation: Smooth, manual travel across I-beams
- Adjustable for 12" Flange Widths: Fits beams with flanges from 4.0" to 12.0"
- Heavy-Duty Steel Build: Designed for demanding industrial use
- Machined Steel Wheels: Compatible with flat and tapered flanges
- Sealed Bearings: Provide quiet, low-resistance travel without maintenance
- Universal Hoist Suspension: Compatible with most manual and electric hoists
Technical Specifications:
SpecificationDetails
Model Number APT-100-12
Rated Capacity 10 Ton (20,000 lbs)
Beam Flange Width Range 4.0" to 12.0" (adjustable)
Trolley Type Manual Push Type
Wheel Diameter Approx. 6.3 in (160 mm)
Wheel Material Machined Steel
Bearing Type Sealed Ball Bearings
Construction Heavy-Duty Steel
Net Weight Approx. 140–155 lbs
Compliance ASME B30.11, CE Certified
