Atlas Lifting & Rigging 5 Ton Low Headroom Beam Trolley with 20 ft Chain

Product Overview

Atlas Lifting & Rigging ALBT-050-20

5 Ton Low Headroom Beam Trolley with 20 ft Chain

The Atlas ALBT-050-20 is a 5-ton low-headroom beam trolley designed to maximize lifting capability in situations where overhead clearance is limited. Combining a manual chain hoist with an integrated push trolley, this unit minimizes headroom requirements while delivering robust lifting power and smooth horizontal movement across standard I-beams.

Designed for heavy-duty industrial use, the ALBT-050-20 is ideal for rigging operations, maintenance bays, and material handling environments where vertical space is restricted. The 20-foot lift height provides ample range for hoisting large or bulky loads, while its all-steel construction and sealed bearings ensure long service life with minimal maintenance.

Key Features:

• 5-Ton Capacity: Rated for loads up to 10,000 lbs
• Low Headroom Profile: Optimized for applications with tight vertical clearances
• Integrated Hoist and Trolley: Compact all-in-one unit for efficient lifting and travel
• 20 ft Lift Height: Extended chain for deeper or multi-level lifting tasks

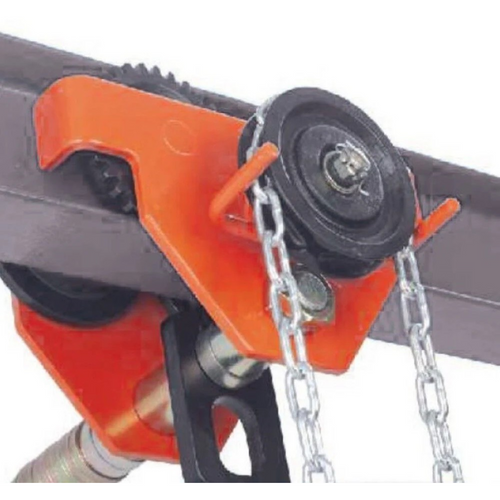

• Manual Push Trolley: Smooth beam travel without the need for power
• All-Steel Build: The reinforced frame and components for industrial durability
• Sealed Bearings: Smooth-rolling and reduced maintenance
• Machined Load Chain Mechanism: Reliable and consistent lifting performance

Technical Specifications:

SpecificationDetails

Model Number ALBT-050-20

Rated Capacity 5 Ton (10,000 lbs)

Lift Height 20 ft

Trolley Type Manual Push Type

Trolley Adjustment Fits standard I-beams (adjustable width)

Chain Operation Manual Hand Chain

Headroom Clearance Low profile – compact integrated design

Bearing Type Sealed Ball Bearings

Construction Heavy-Duty Steel

Net Weight Approx. 185–210 lbs

Compliance ASME B30.11 / B30.16, CE Certified
