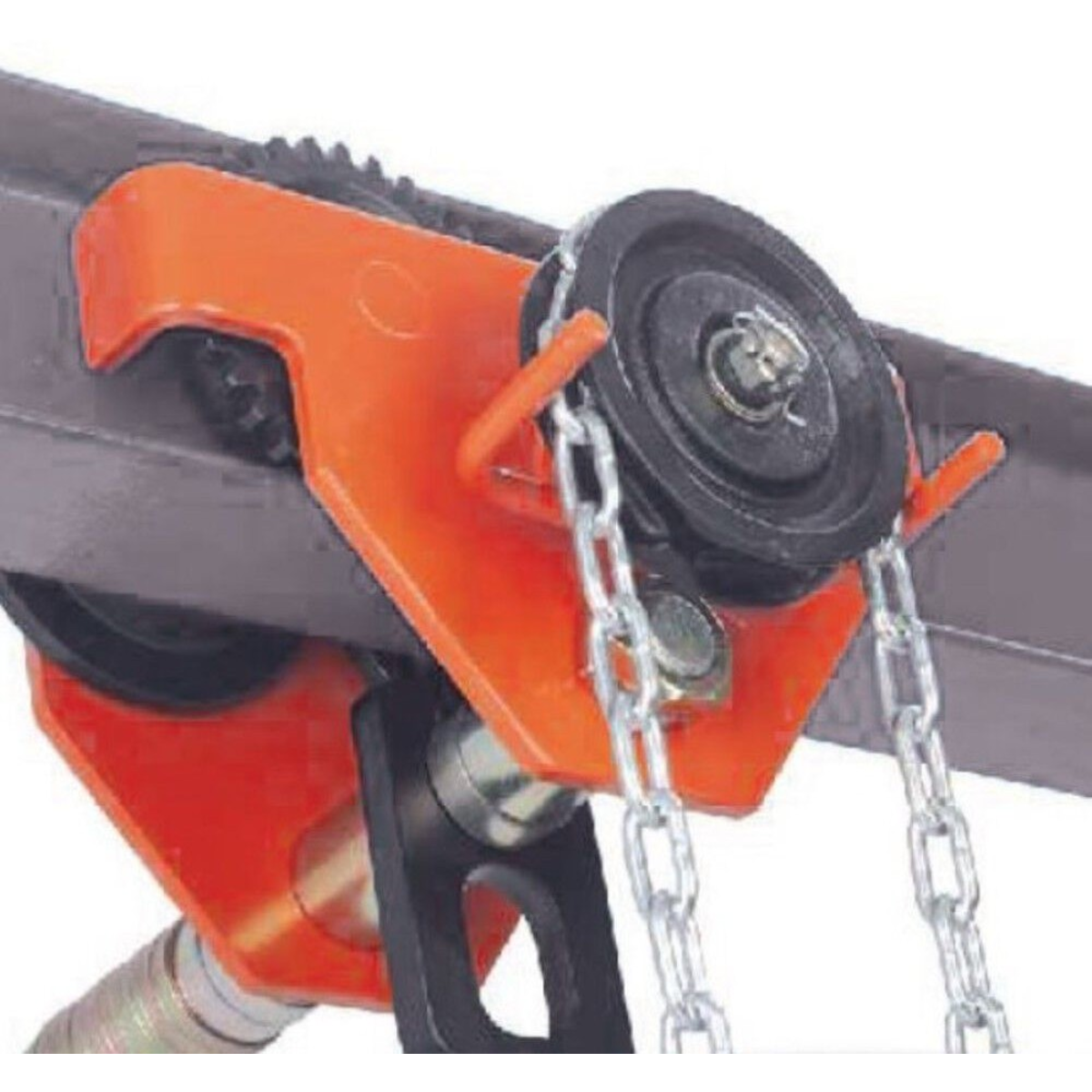

Atlas Lifting & Rigging AGT-010

1 Ton Geared Beam Trolley – Adjustable Flange Width

The Atlas AGT-010 is a 1-ton geared trolley engineered for safe and smooth horizontal load movement along a beam. Designed to pair with manual or powered hoists, this heavy-duty trolley offers precise positioning with a hand chain drive. It is ideal for industrial lifting, maintenance operations, and warehouse applications.

Built with fully machined wheels and a rugged steel frame, the AGT-010 is adjustable to accommodate a wide range of beam flange widths, making it versatile and dependable for various rigging setups. Its sealed bearings and robust construction ensure long service life with minimal maintenance.

Key Features:

• 1 Ton Capacity: Supports loads up to 2,000 lbs with smooth, controlled travel

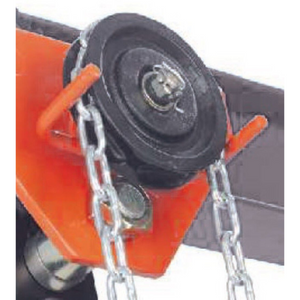

• Geared Drive Operation: Hand chain provides precise control of trolley movement along the beam
• Adjustable Flange Width: Fits a wide range of beam sizes for jobsite flexibility
• Machined Steel Wheels: Designed to roll smoothly on flat or tapered I-beams
• Heavy-Duty Construction: Steel side plates and load bar ensure durability under demanding use
• Sealed Bearings: Maintenance-free bearings provide smooth, quiet operation
• Integrated Suspension Point: Compatible with manual or electric hoists

Technical Specifications:

SpecificationDetails

Model Number AGT-010

Rated Capacity 1 Ton (2,000 lbs)

Beam Flange Width Range 2.5" to 8.6" (adjustable)

Wheel Tread Diameter Approx. 3.15 in (80 mm)

Hand Chain Drop Standard 10 ft (custom lengths available)

Construction All-Steel Frame & Wheels

Bearing Type Sealed Ball Bearings

Trolley Type Geared – hand chain operated

Net Weight Approx. 26–30 lbs

Compliance ASME B30.11, CE Certified
