Atlas Lifting & Rigging AGT-020

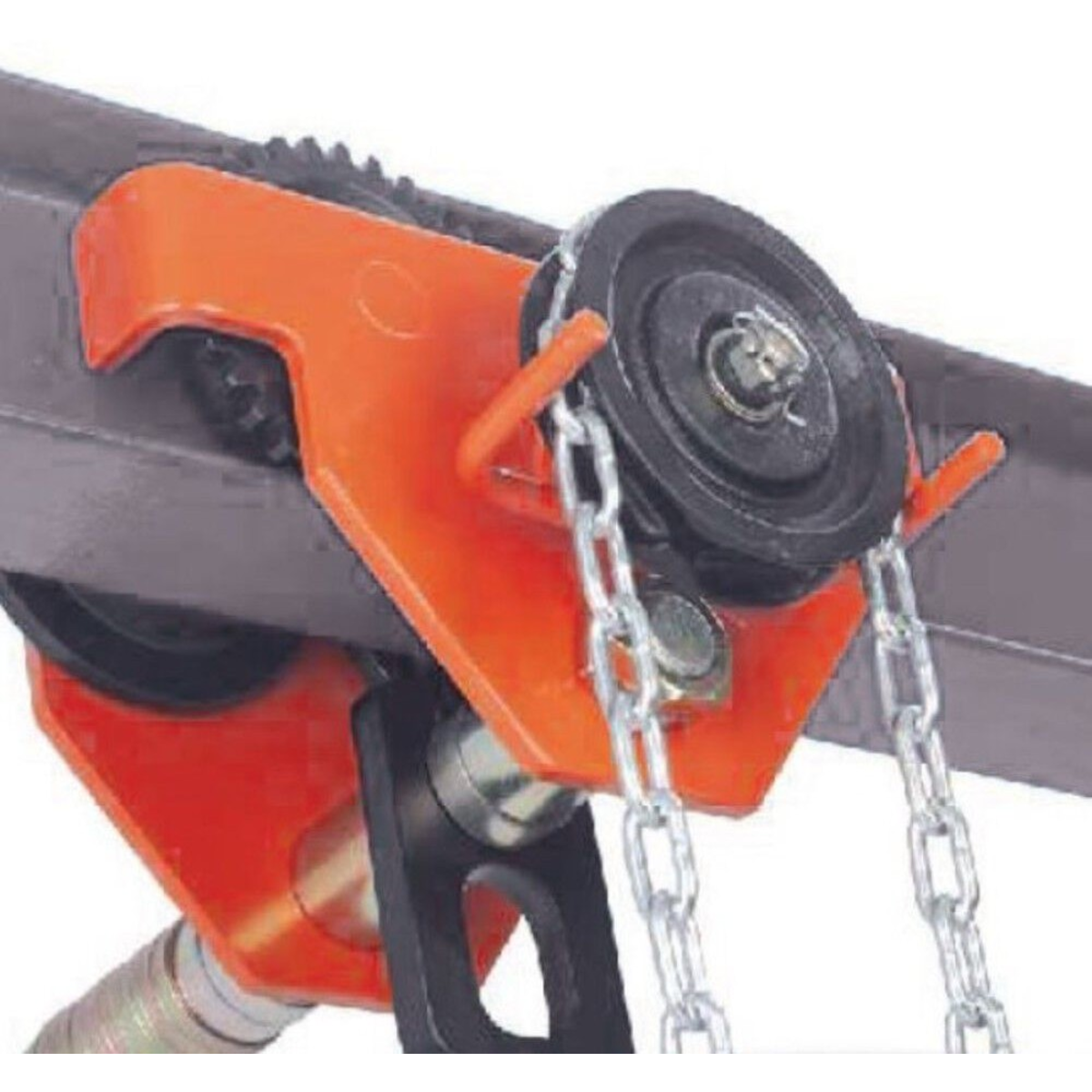

2 Ton Geared Beam Trolley – Adjustable Flange Width

The Atlas AGT-020 is a robust 2-ton geared beam trolley designed for reliable and precise horizontal load movement in industrial and commercial lifting environments. Built to operate smoothly on a wide range of I-beams, this trolley features a hand chain drive for accurate positioning and integrates seamlessly with manual or powered hoists.

With a heavy-duty steel frame, precision-machined wheels, and sealed bearings, the AGT-020 delivers dependable performance and low maintenance operation. The adjustable flange design enables compatibility with various beam widths, making it a versatile solution for workshops, factories, and job sites that require consistent and secure load handling.

Key Features:

• 2 Ton Capacity: Supports loads up to 4,000 lbs with steady and controlled travel
• Hand Chain Operation: Geared drive allows for precise load positioning
• Adjustable Beam Width: Fits flange widths from 2.5" to 8.6"
• Heavy-Duty Construction: All-steel frame for superior durability
• Sealed Bearings: Provide maintenance-free, smooth trolley movement
• Machined Wheels: Designed for flat or tapered I-beams
• Central Suspension Point: Easily integrates with most hoists

Technical Specifications:

SpecificationDetails

Model Number AGT-020

Rated Capacity 2 Ton (4,000 lbs)

Beam Flange Width Range 2.5" to 8.6" (adjustable)

Wheel Tread Diameter Approx. 3.94 in (100 mm)

Hand Chain Drop Standard 10 ft (custom lengths available)

Construction Steel Side Plates and Load Bar

Bearing Type Sealed Ball Bearings

Trolley Type Geared – hand chain operated

Net Weight Approx. 42–45 lbs

Compliance ASME B30.11, CE Certified
