Product Overview

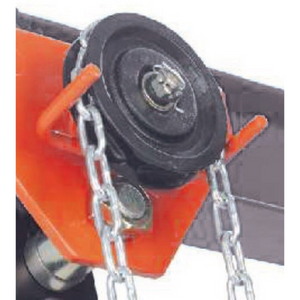

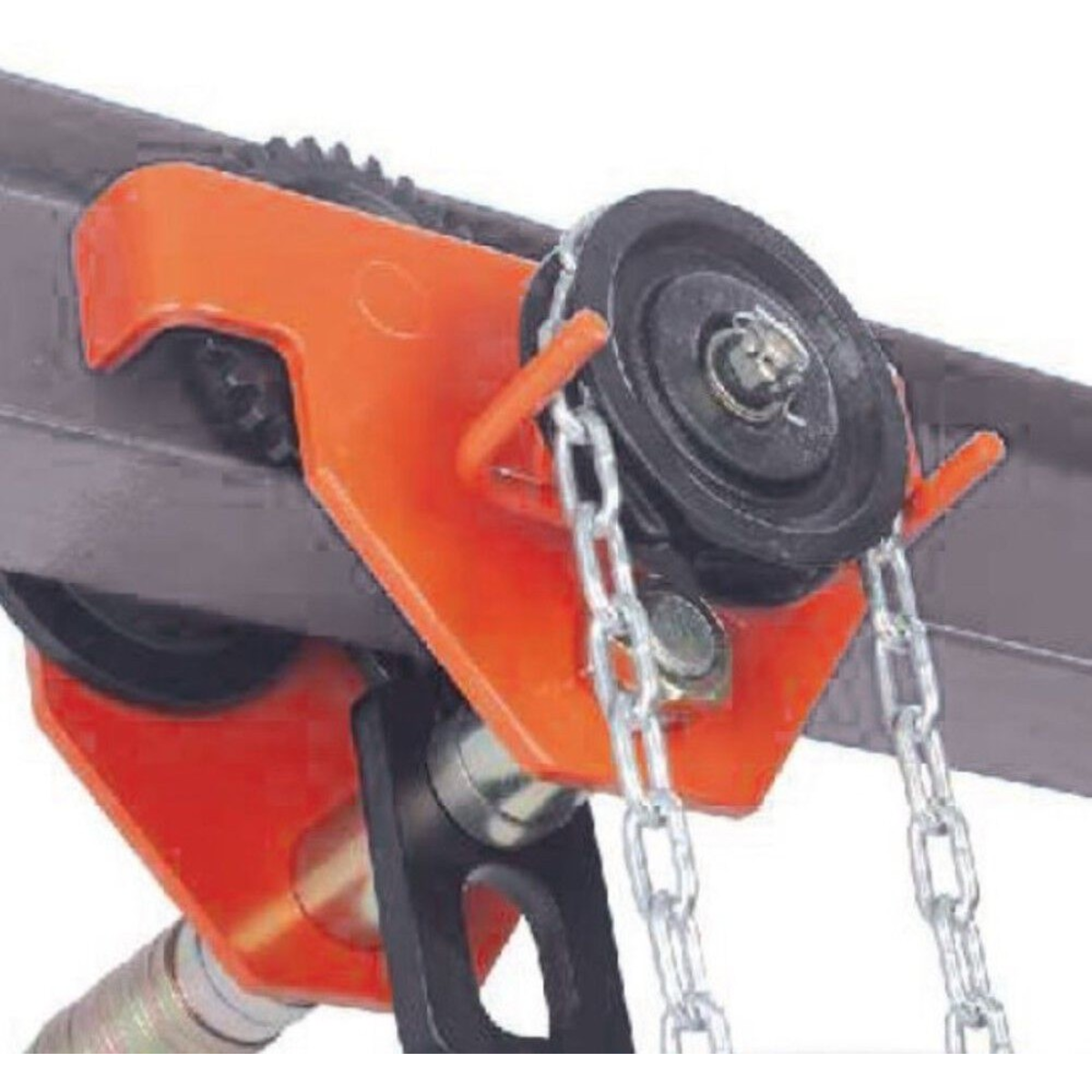

Atlas Lifting & Rigging AGT-030
3-Ton Geared Beam Trolley – Adjustable Flange Width
The Atlas AGT-030 is a heavy-duty 3-ton geared trolley designed for precise horizontal load movement across I-beams in industrial environments. Built for demanding lifting applications, this trolley uses a geared hand chain drive for smooth, controlled travel. It is ideal for pairing with manual or electric hoists in fabrication shops, warehouses, plants, and rigging operations.
Featuring a durable steel frame, machined wheels, and sealed bearings, the AGT-030 offers dependable operation with minimal maintenance. Its adjustable flange width allows compatibility with a wide range of beam sizes, ensuring flexible installation across job sites or fixed setups.
Key Features:
- 3-Ton Capacity: Handles up to 6,000 lbs for medium to heavy-duty loads
- Geared Operation: Chain-driven trolley provides accurate positioning and load control
- Adjustable Flange Width: Fits standard I-beams from 3.15" to 8.6" wide
- All-Steel Construction: Reinforced frame and load bar for rugged durability
- Machined Steel Wheels: Designed for both flat and tapered beam flanges
- Sealed Bearings: Maintenance-free, smooth-rolling performance
- Suspension Point: Compatible with manual and powered hoists
Technical Specifications:
SpecificationDetails
Model Number AGT-030
Rated Capacity 3 Ton (6,000 lbs)
Beam Flange Width Range 3.15" to 8.6" (adjustable)
Wheel Tread Diameter Approx. 4.3 in (110 mm)
Hand Chain Drop Standard 10 ft (custom lengths available)
Trolley Type Geared – hand chain operated
Bearing Type Sealed Ball Bearings
Construction of All-Steel Frame and Side Plates
Net Weight Approx. 52–56 lbs
Compliance ASME B30.11, CE Certified
