Product Overview
Atlas Titan TCH-005-20 Chain Hoist – 0.5 Ton Capacity, 20 Ft. Lift
Product Description:

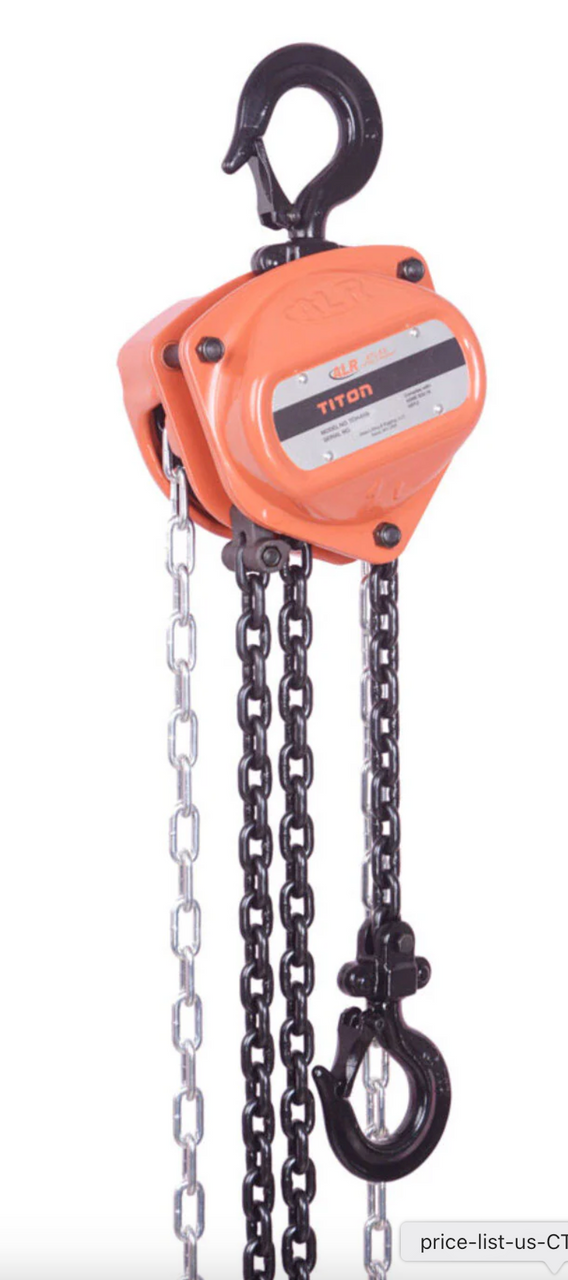

The Atlas Titan TCH-005-20 Chain Hoist is a durable and easy-to-operate manual hoist designed for lifting loads up to 0.5 tons (1,100 lbs) with a 20-foot lift height. Built for reliability in light to medium-duty applications, it’s ideal for use in garages, workshops, job sites, and industrial environments where a longer reach is needed.
Featuring a rugged steel construction and a fully enclosed gear housing, the TCH-005-20 is equipped with a Grade 80 alloy load chain and a mechanical load brake for secure and smooth lifting. Forged top and bottom hooks with safety latches ensure solid anchoring and safe load handling. Its extended lift makes it suitable for taller structures or deeper work zones where additional chain length is required.
The hoist’s compact design and simple operation make it a dependable choice for professional trades and general rigging needs.
Specifications:
- Model: TCH-005-20
- Capacity: 500 kg (0.5 ton / 1,100 lbs)
- Standard Lift Height: 20 ft (6 m)

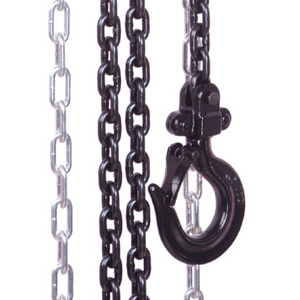

- Load Chain: G80 alloy steel
- Chain Diameter: 5 mm
- Hand Chain: Zinc-plated, smooth operation
- Brake System: Mechanical load brake for controlled lifting and lowering
- Hooks: Forged steel, top and bottom, with safety latches

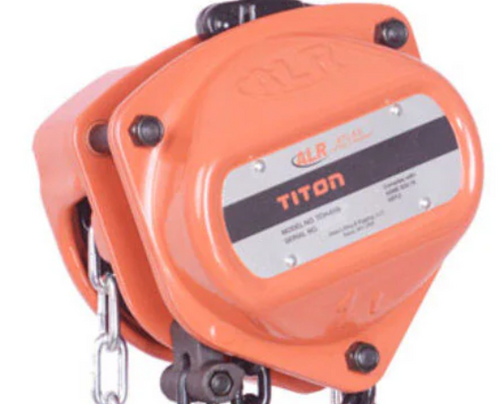

- Housing: Steel body with powder-coated finish for corrosion protection
- Net Weight: Approx. 17.5 kg (38.5 lbs)
- Compliance: ASME B30.16 / CE / EN standards
- Applications: Light-duty lifting, extended height rigging, maintenance, equipment installation, overhead work
