Product Overview

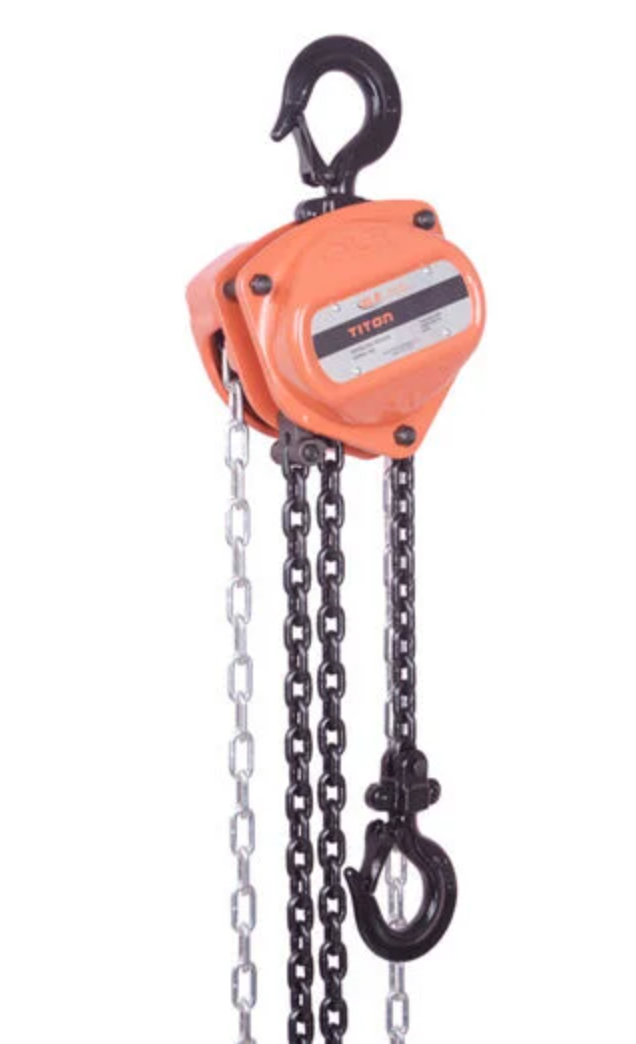

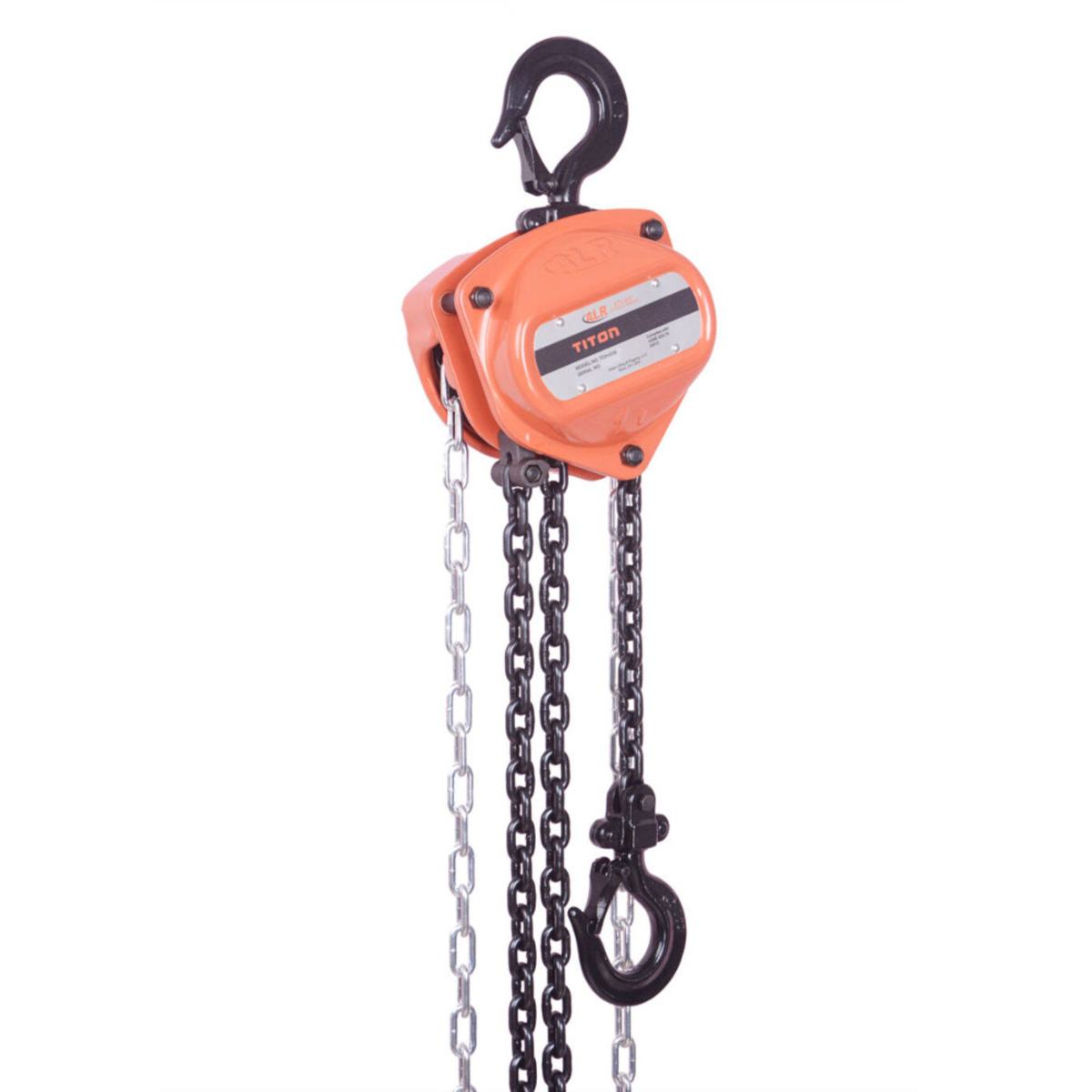

Atlas Lifting & Rigging TCH 1/2 Ton Chain Hoist – 1,100 lbs Capacity, 10 Ft. Lift
Product Description:
The Atlas TCH 1/2 Ton Chain Hoist is a compact, manually operated hoist built for safely lifting of loads up to 1,100 lbs (0.5 tons). With a 10-foot lift height, it's ideal for use in workshops, garages, warehouses, construction sites, and other light to medium-duty applications.
This hoist features a high-strength alloy load chain, a fully enclosed gear housing for added protection, and a reliable mechanical load brake for secure load control. The top and bottom hooks are made from forged steel and include safety latches to prevent accidental release. Its lightweight, portable design allows for quick installation and ease of use in both permanent and temporary lifting setups.
Durable and easy to maintain, the Atlas TCH 1/2 Ton Chain Hoist is a dependable choice for professionals who need performance and safety in a compact package.
Specifications:
- Model: TCH 1/2 Ton
- Capacity: 1,100 lbs (0.5 ton / 500 kg)
- Standard Lift Height: 10 ft (3 m)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: 5 mm
- Hand Chain: Zinc-plated steel
- Lift Mechanism: Manual gear system with mechanical load brake
- Top & Bottom Hooks: Forged steel with safety latches
- Housing: Enclosed steel casing with powder-coated finish
- Net Weight: Approx. 25 lbs (11.5 kg)
- Standards Compliance: Meets ASME B30.16 and CE/EN lifting requirements
- Applications: Equipment lifting, rigging, maintenance work, construction support, general material handling
