Product Overview

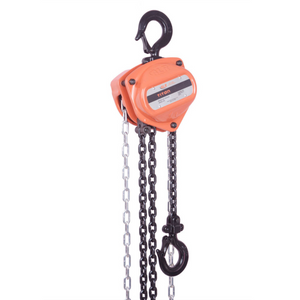

Atlas Titan TCH-005-15 Chain Hoist – 0.5 Ton Capacity, 15 Ft. Lift
Product Description:
The Atlas Titan TCH-005-15 Chain Hoist is a reliable and easy-to-use manual lifting solution with a 0.5-ton (1,100 lbs) capacity and a 15-foot lift height. Designed for light to moderate lifting tasks, it’s well-suited for use in workshops, warehouses, construction sites, and general maintenance operations.
This hoist features robust steel housing, a mechanical load brake for controlled lifting and lowering, and a high-strength G80 alloy load chain. The top and bottom hooks are forged and fitted with safety latches to ensure secure attachment. Its smooth hand chain operation and compact design make it easy to install and operate in tight spaces.
Built for durability and safety, the TCH-005-15 offers reliable performance for a wide array of lifting applications.
Specifications:
- Model: TCH-005-15
- Capacity: 500 kg (0.5 ton / 1,100 lbs)
- Standard Lift Height: 15 ft (4.5 m)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: 5 mm
- Hand Chain: Zinc-plated, smooth-pull
- Brake System: Mechanical load brake for secure lifting control

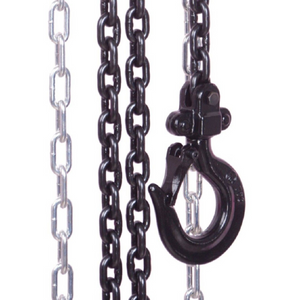

- Hooks: Forged steel (top and bottom) with safety latches
- Housing: Enclosed, powder-coated steel for added durability
- Net Weight: Approx. 14.5 kg (32 lbs)
- Standards Compliance: Meets ASME B30.16 / CE / EN standards
- Applications: Light rigging, equipment lifting, shop use, field maintenance, temporary or fixed lifting points
